LOWER YOUR COST OF OPERATION.

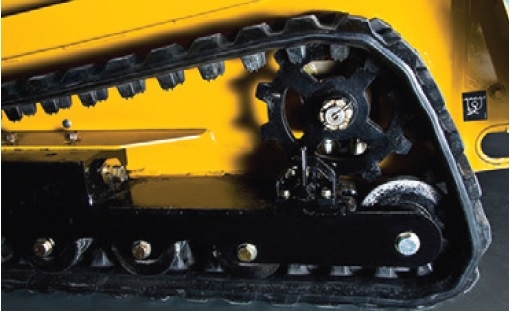

The undercarriage features a high track-mounted
sprocket. The higher mounting reduces premature
wear and tear in rocky soil conditions, while the
ADI
cast sprocket is heat-treated for longer life.
LOADER ARM WARRANTY. The 3-year/3000–
hour extended limited warranty
on the frame and
loader arms offers you peace of
mind, in addition
to the 1-year/1000-hour Vermeer
equipment
limited warranty.

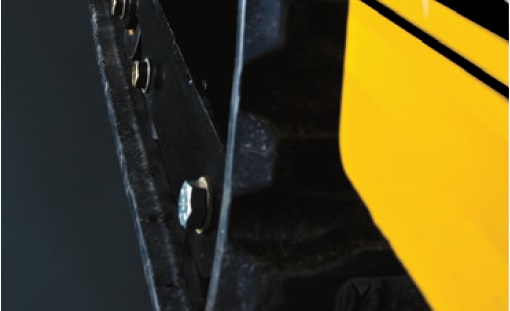

TREAD SOFTLY. Showcasing both a wide 9"
(22.9 cm) track and
narrow 7" (17.8 cm) track
depending on your
needs. Choose narrow tracks
to easily access
traditional 36" (91.4 cm) gate
entrances or the
wider track for reduced ground
pressure and
increased traction.

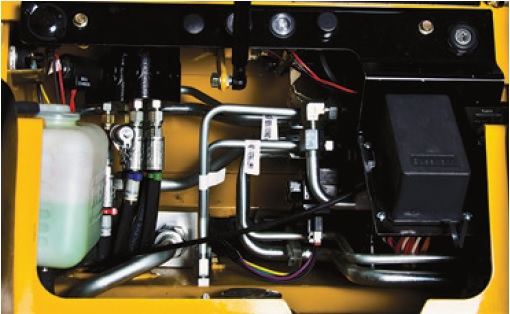

SERVICEABILITY IS KEY. Access radiator,
electrical components and
hydraulic valves
through the rear panel.
Need to access the
engine? Merely lift open
the side shielding
for easy maintenance.

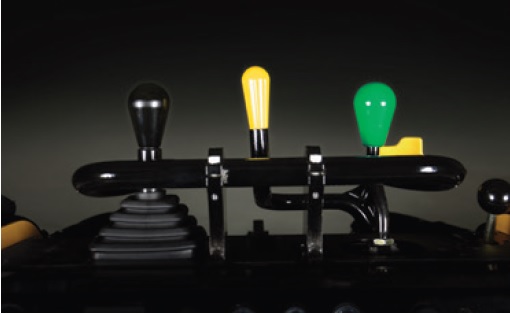

JOYSTICK CONTROL. Operators can steer
with a single
pilot-operated joystick. The single
joystick
offers the operator a smooth range of
motion
without balancing engagement of two
separate controls.

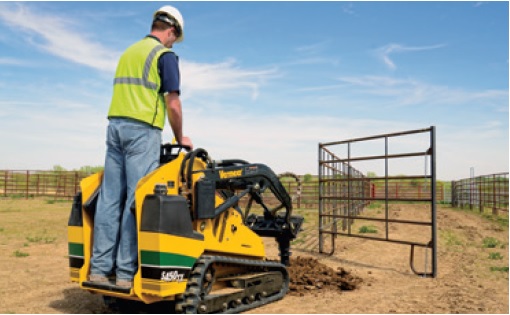

A DEDICATED SPRING-CUSHIONED
PLATFORM
keeps the operator out of the
mud. The
integrated operator presence system
suspends
ground drive and powered boom/bucket
motion when the operator steps off
the platform.
S450TX MINI SKID STEER
GENERAL
Length: 75.4" (191.5 cm)
Width: 35.75" (90.8 cm)
Height: 53.4" (135.6 cm)
Weight: 2300 lb (1043.3 kg)
Hinge pin height: 72" (182.9 cm)
Ground clearance: 6.5" (16.5 cm)
Ground pressure: 3.4 psi (23.4 kPa) narrow tracks or 2.7 psi
(18.6 kPa) wide tracks
ENGINE
Make/Model: Kubota D902
Gross horsepower: 24.8 hp (18.2 kW)
Torque (max): 41.2 ft-lb (55.9 Nm)
Displacement: 54.8 cu in (.9 L)
Fuel type: Diesel
Fuel tank capacity: 7.3 gal (27.6 L)
Number of cylinders: 3
Cooling medium: Liquid
Max engine operating angle: 30°
*Engine operating angles do not include safe machine operating angles*
PERFORMANCE
ISO-rated operating capacity: 500 lb (226.8 kg)
Max forward travel speed: 3.5 mph (5.6 km/h)
HYDRAULIC SYSTEM
Hydraulic tank capacity: 8 gal (30.3 L)
Auxiliary pump high flow: 12.5 gpm (47.3 L/min)
Auxiliary pump low flow: 7.5 gpm (28.4 L/min)
Auxiliary pump relief: 2950 psi (203.4 bar)
Fittings: Quick coupler
OPERATIONAL
Steering: Single, pilot-operated joystick
Lift and curl: Single, dual-axis joystick
Battery: 12 V (500 CCA)
12 volt auxiliary power port
SAFETY
Operator presence system
Boom lock-out arm
Hydraulic parking brake
Console cushions
OPTIONS
High flow low flow auxiliary switch
9" wide tracks
Block heater
Special paint
Extended warranty
Planned maintenance
Vermeer Confidence Plus® asset protection program
