THE NEW QUIET.
With a 99 dB(A) guaranteed
sound power level and
an operator ear rating of
78.7 dB(A), the D23x30 S3
makes a quiet working
environment possible,
creating less neighborhood
disturbance and enabling
easier communication
among the crew.

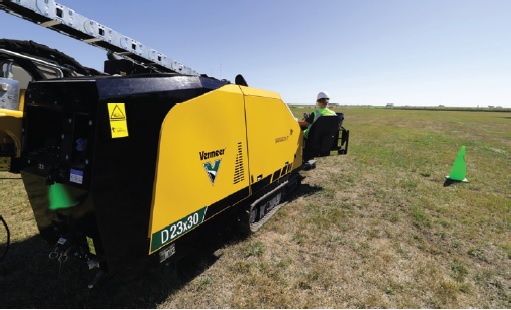

COMPACT YET POWERFUL. The D23x30 S3
features a short, narrow design, while
its 100 hp
(75 kW) Deutz engine offers the power
operators
need when working in tough ground conditions.

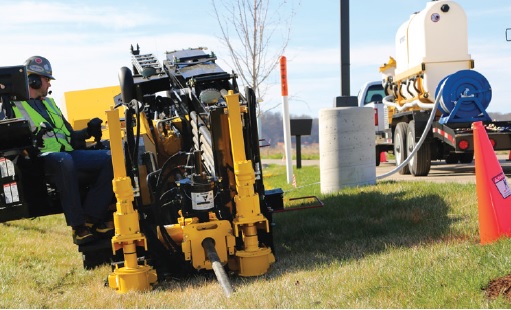

MAXIMIZE PRODUCTIVITY. With 24,000 lb
(106.8 kN) of thrust/pullback and 3000
ft-lb
(4067.5 Nm) of rotational torque, the D23x30 S3
offers a sizeable increase in power over its
predecessor,
the D20x22 Series II — helping to
maximize machine
and jobsite productivity.
NEED FOR SPEED. With a carriage speed of
206 ft/min (62.8 m/min) and
a rotational speed of
219 rpm, the D23x30 S3 helps
contractors install
more linear feet per day, maximizing
jobsite
productivity and efficiency.
GET TO WORK FASTER. The D23x30 S3 can
track up to 3.3 mph (5.3 km/h)
helping operators
get into position for their next shot
more quickly,
while making it easier to climb slopes and
make
sharp turns.

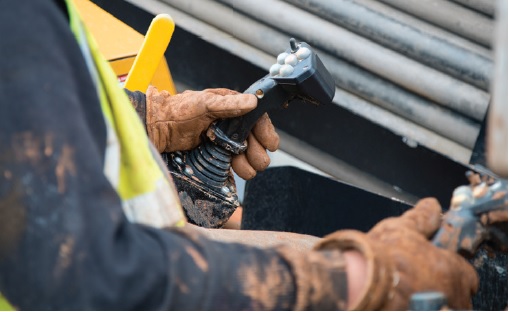

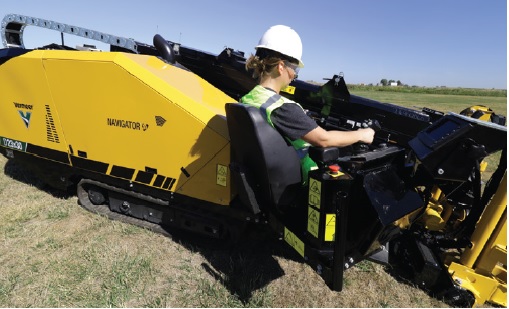

COMMON CONTROLS. To assist in operator
efficiency
and training, the D23x30 S3 features the
dual joysticks
and common control platform found
up and down the
Navigator drill lineup. The system
design uses less
wiring and fewer fuses for greater
reliability.

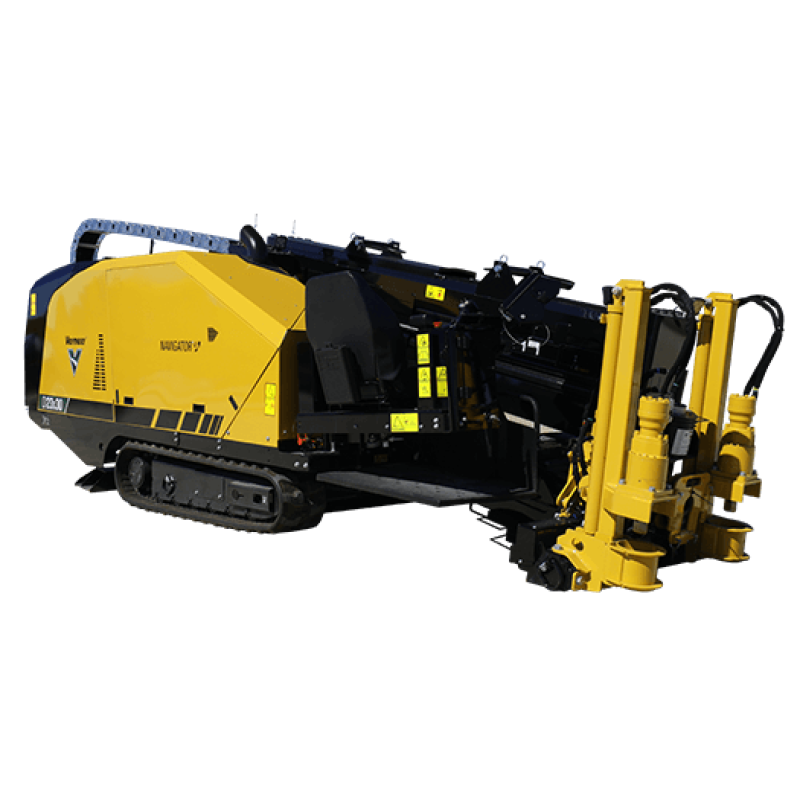

D23x30 S3
NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 17.4' (5.3 m)
Min transport width: 52.5" (133.4 cm)
Min transport height: 75" (190.5 cm)
Weight: 14,080 lb (6386.6 kg)
ENGINE OPTION ONE
Make and model: Deutz TCD3.6L4
Fuel type: Ultra low sulfur diesel
Max engine rpm: 2000 rpm
Gross horsepower: 100 hp (75 kW)
Displacement: 220 cu in (3.6 L)
Cooling method: Liquid
Aspiration: Turbo
EPA certification family: Tier 4 Final (EU Stage IV)
ENGINE OPTION TWO
Make and model: Deutz TCD3.6L4
Fuel type: Diesel <2000 ppm sulfur content
Max engine rpm: 2000 rpm
Gross horsepower: 100 hp (75 kW)
Displacement: 220 cu in (3.6 L)
Cooling method: Liquid
Aspiration: Turbo
EPA certification family: Tier 3 (EU Stage IIIB)
OPERATIONAL
Thrust/Pullback: 24,000 lb (106.8 kN)
Max carriage speed at max engine rpm: 206 ft/min (62.8 m/min)
Max spindle torque [low at max engine rpm - 2.06" (5.2 cm) drill
rod]: 2600 ft-lb (3525.1 Nm)
Max spindle torque [low at max engine rpm - 2.375" (6 cm) drill
rod]: 3000 ft-lb (4067.5 Nm)
Max spindle speed at max engine rpm: 219 rpm
Min bore diameter: 4" (10.2 cm)
Max ground drive speed at max engine rpm (fwd): 3.3 mph (5.3 km/h)
Noise level at operator’s ear: 78.7 dB(A)
Drill rack angle: 12-18° (21.3-32.5%)
FLUID CAPACITIES
Fuel tank: 35 gal (132.3 L)
Antifreeze tank capacity: 2.5 gal (9.45 L)
Onboard optional water tank: 25 gal (94.5 L)
DRILLING FLUID SYSTEM
Max flow: 35 gpm (132.3 L/min)
Max pressure: 1300 psi (89.6 bar)
FEATURES
Breakout system: Standard hydraulic vise
Drilling lights: Optional
Flow indicator: Standard
Stakedown system: Standard
Strike alert: Standard
Remote lockout: Standard
DRILL PIPE OPTION ONE
Type: Firestick® drill rod
Length: 10' (3 m)
Rod diameter: 2.06" (5.2 cm)
Weight: 62 lb (28.1 kg)
Bend radius: 101.9' (31.3 m)
Onboard capacity: 480' (146.3 m)
DRILL PIPE OPTION TWO
Type: Firestick drill rod
Length: 10' (3 m)
Rod diameter: 2.375" (6 cm)
Weight: 73 lb (33.1 kg)
Bend radius: 108.2' (33 m)
Onboard capacity: 400' (121.9 m)
