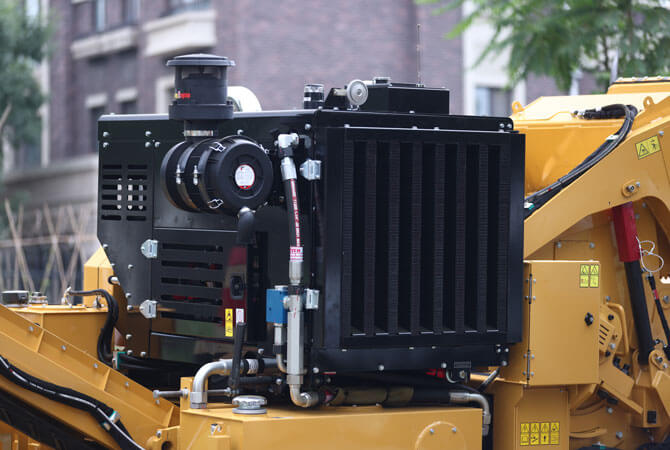

97-kW (130-HP) CUMMINS ENGINE. Provides high horsepower to process
difficult material efficiently, backed by
a global dealer support network.
FOLDING DISCHARGE CONVEYOR.
7 ft (2.1 m) discharge height.
Facilitates ease of transportation.

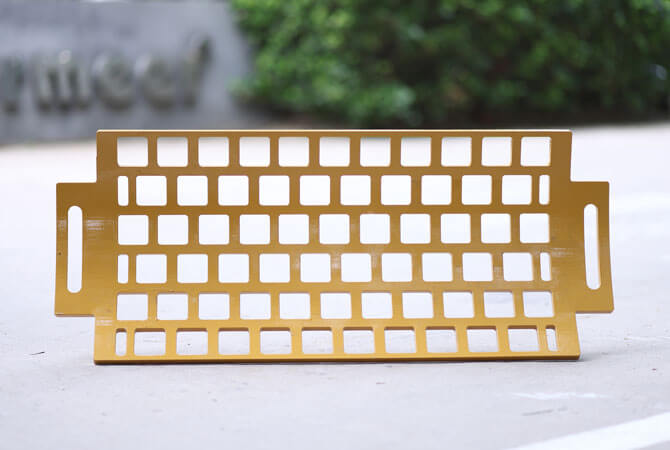

SIDELOAD SCREEN DESIGN.
Convenient dual-screen side-load
design results in easier changes,
allowing for product sizing
adjustments to be made in less time.

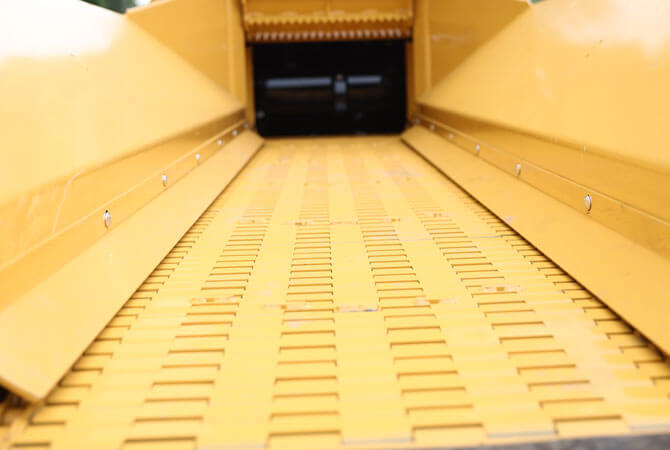

STEEL INFEED CONVEYOR
WITH DUAL-DRIVEN ROLLER.
Offers durability, while a dual
motor-driven infeed roller provides
powerful pulling force to feed
challenging materials.

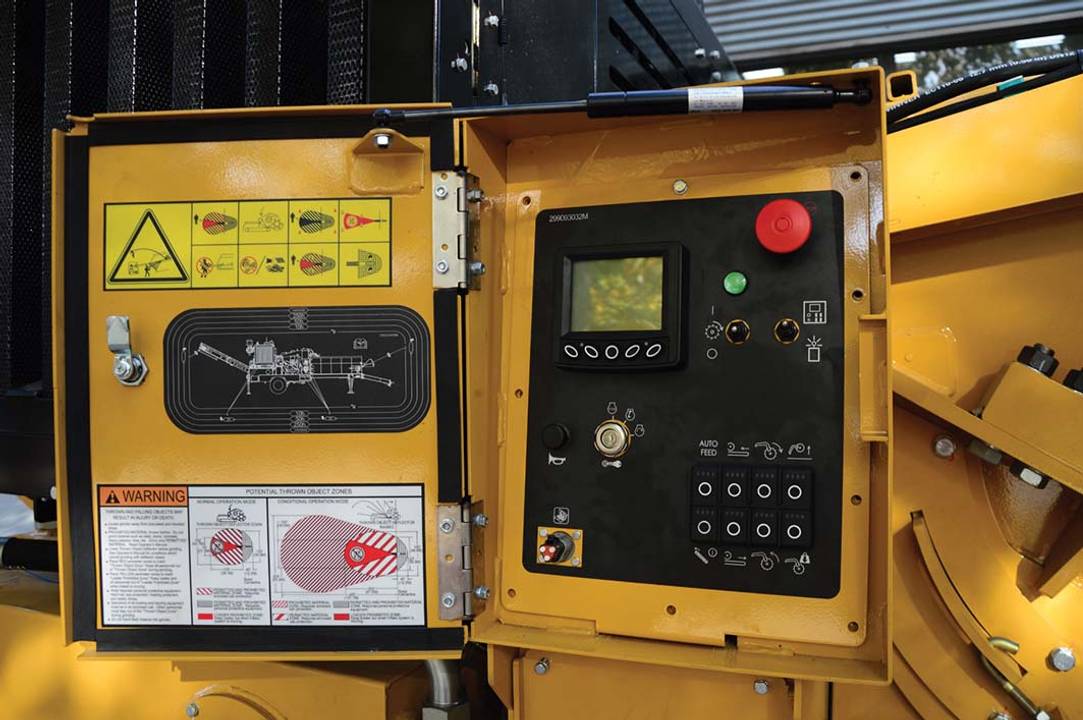

VERMEER PLUS+1
CONTROL SYSTEM.
Offers four different speed options
for more precise feed control.
An optional wireless remote is
available for enhanced
operating efficiency

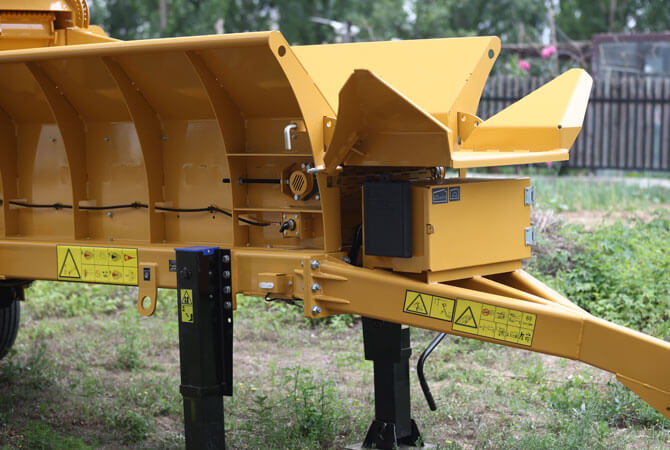

INFEED TABLE WITH
FLARED WALLS.
Wide, flared walls allow for
hassle-free feeding, and the
infeed tailgate can be lowered
for extra length to support the
feeding of longer materials.

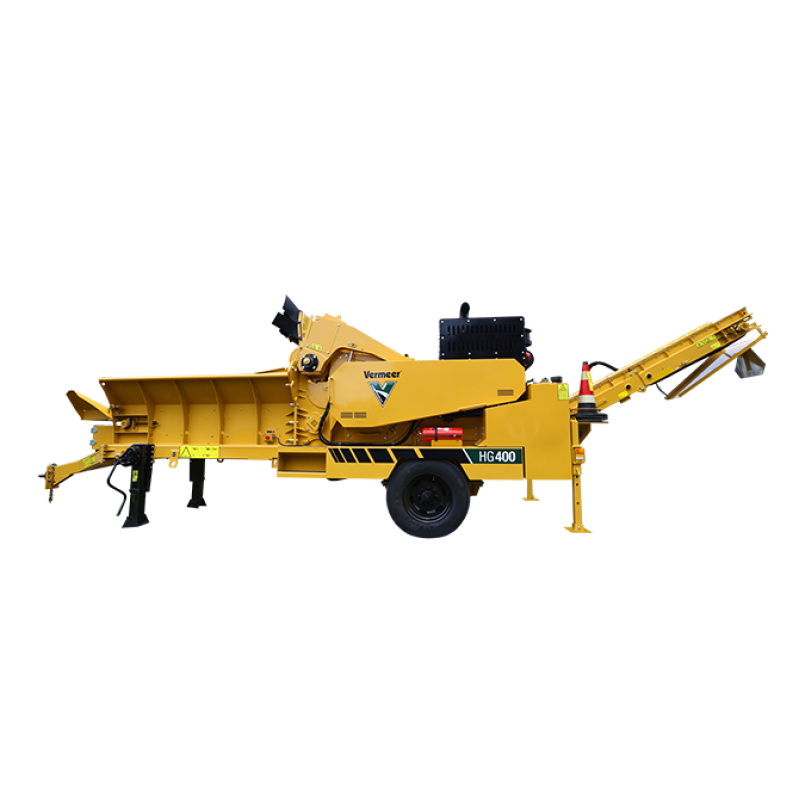

HG400 HORIZONTAL GRINDER
GENERAL
Maximum length – transport (axle version): 29.4 ft (9 m)
Maximum width – transport (axle version): 6.7 ft (2.1 m)
Maximum height – transport (axle version): 8.1 ft (2.5 m)
Weight (axle version): 12,800 lb (5,800 kg)
Maximum length – transport (stationary version): 26.6 ft (8.1 m)
Maximum width – transport (stationary version): 6.7 ft (2.1 m)
Maximum height – transport (stationary version): 7.9 ft (2.4 m)
Weight (stationary version): 12,566 lb (5,700 kg)
ENGINE
Make and model: Cummins QSF3.8 Tier 3
Gross horsepower (maximum): 130 hp (97 kW)
Fuel tank capacity: 51 gal (195 L)
INFEED CONVEYOR
Feed table width: 48.6 in (123.4 cm)
Feed table length – option one: 7.6 ft (2.33 m)
Loading height: 3.9 ft (1.2 m)
INFEED ROLLER
Maximum feed height: 15.9 in (40.5 cm)
Infeed roller diameter: 15 in (38.1 cm)
DUPLEX DRUM
Millbox opening: 25 in x 16 in (63.5 cm x 40.5 cm)
Drum diameter: 31.3 in (79.4 cm)
Number of tips: 15
Side of tips that can be used: 2
DISCHARGE SYSTEM - SINGLE BELT DESIGN
Belt length: 34.4 ft (10.5 m)
Standard roller drive diameter: 0.66 in (20 cm)
HYDRAULIC SYSTEM
Tank capacity: 40 gal (152 L)
Pump type: Fixed displacement, gear pump
Discharge conveyor motor: Fixed displacement, gear motor
Infeed roller motor: Fixed displacement, gear motor
OPTIONS
Tips
Screen sizes and types
Magnetic discharge roller
CONTROLS
Stationary: Side-mounted LCD control station (standard)
Remote: Wireless remote control (optional)
Auto clutch
AXLES
Number of axles: 1
Ground Clearance: 7.09 in (18 cm)
