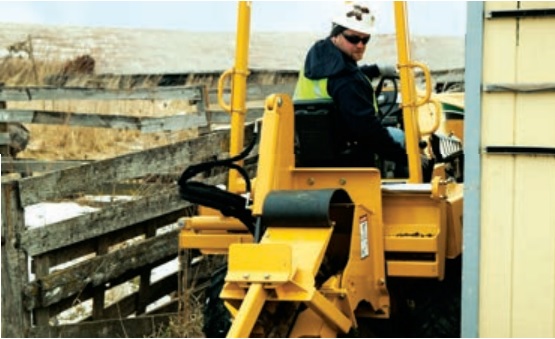

MANEUVERABILITY.
A class-leading compact
turning diameter allows
the RTX450 to perform in
narrow jobsites – especially
in residential areas.

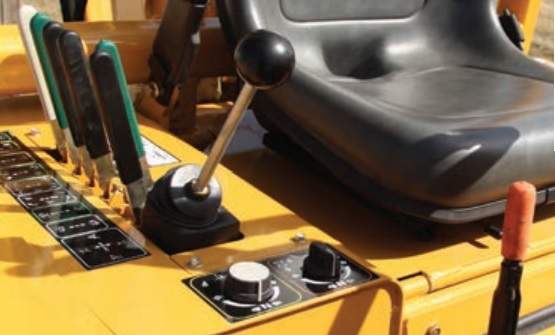

IN CONTROL. A common control system
across the entire RTX
lineup can help improve
operator efficiency when
operating Vermeer
ride-on tractors.
THE PRODUCTIVITY DIFFERENCE. Experience a productivity difference due to
a 14%
increase in horsepower (as compared
to the RT450),
while the Tier 4 Final or Interim
compliant engine
allows you to meet local
emissions requirements.

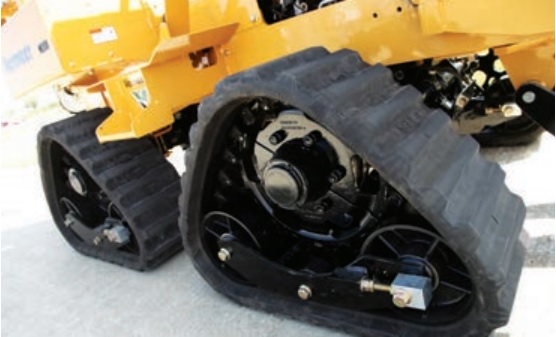

MEET YOUR JOBSITE STANDARDS.
With a 26" (66 cm) tire standard-duty axle option,
and the 29" (73.7 cm) tire and industry-exclusive
quad track heavy-duty axle options, choose
the
configuration that works best for your
jobsite
requirements.

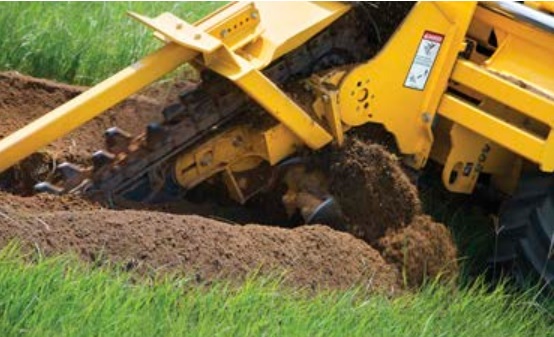

MAKE SENSE OF YOUR TRENCH. When difficult conditions are encountered while
trenching causing a sudden drop in engine
speed,
the TrenchSense™ feature automatically
pauses
the forward motion of the tractor to
prevent engine
shutdown and recalibration of
the machine controls.
Once pre-set engine and
trencher speed recovers,
forward AutoCreep
resumes. The sequence occurs
within seconds
and requires no operator adjustment.
RTX450 RIDE-ON TRACTOR
GENERAL WEIGHTS AND DIMENSIONS
Weight [basic tractor, 26" (66 cm) tire]: 4575 lb (2075.2 kg)
Weight [basic tractor, 29" (73.7 cm) tire]: 4720 lb (2141 cm)
Weight (basic tractor, tracks): 6205 lb (2814.5 kg)
Length (basic tractor, tires): 109" (276.9 cm)
Length (basic tractor, tracks): 114" (289.6 cm)
Width (basic tractor, tires): 60" (152.4 cm)
Width (basic tractor, tracks): 64" (162.6 cm)
Height [basic tractor, 26" (66 cm) tire]: 88.7" (225.3 cm)
Height [basic tractor, 29" (73.7 cm) tire]: 90.3" (229.4 cm)
Height [basic tractor, tracks]: 92.6" (235.2 cm)
Tread width [26" (66 cm) tire, centerline to centerline]: 48" (121.9 cm)
Tread width [29" (73.7 cm) tire, centerline to centerline]: 50" (127 cm)
Tread width (tracks, centerline to centerline): 48.8" (124 cm)
Ground clearance [26" (66 cm) tire]: 7.4" (18.8 cm)
Ground clearance [29" (73.7 cm) tire]: 9" (22.9 cm)
Ground clearance (tracks): 9.85" (25 cm)
Wheel base (centerline of axles): 48" (121.9 cm)
Roll-over protective structure (2-post ROPS): 10,500 lb (4762.7 kg)
ENGINE
Make and model: Deutz 2.9L D Tier 4 Final
Noise level at operator’s ear: 92.2 dB(A)
Manufacturer’s gross hp rating: 49 hp (36.5 kW)
Max torque: 108 ft-lb (146.4 Nm)
Cooling medium: Liquid
Fuel type: Ultra-low sulfur diesel
Emissions rating: Tier 4 Final (EU Stage IIIA)/Tier 4i (EU Stage IIIB)
CAPACITIES
Fuel tank: 17.6 gal (66.6 L)
Hydraulic tank: 13 gal (49.2 L)
Hydraulic system: 14.8 gal (56 L)
Coolant: 1.7 gal (6.4 L)
GROUND DRIVE - RUBBER TIRE OPTION ONE
Max transport speed (fwd/rev in high): 3.7 mph (6 km/h)
Max creep speed (fwd/rev in low): 1.9 mph (3.1 km/h)
Tire size: 26" (66 cm) x 12" (30.5 cm)
GROUND DRIVE - RUBBER TIRE OPTION TWO
Max transport speed (fwd/rev in high): 3.8 mph (6.1 km/h)
Max creep speed (fwd/rev in low): 2.1 mph (3.4 km/h)
Tire size: 29" (73.7 cm) x 12.5" (31.8 cm)
GROUND DRIVE – TRACKS
Max transport speed (fwd/rev in high): 2.3 mph (3.7 km/h)
Max creep speed (fwd/rev in low): 1.5 mph (2.4 km/h)
Track contact length: 25.5" (65 cm)
Track width: 14" (35. 6 cm)
AXLE OPTIONS
Front axle type: Steerable and oscillating 68/80 series planetary axles
Rear axle type: Rigid and steerable 68/80 series planetary axles
Axle load rating (static, 68 and 80 axles): 14,837 lb (6730 kg)
Outside turning diameter [26" (66 cm) and 29" (73.7 cm) tires,
front steer only]: 23.8'(7.3 m) and 30.3' (9.2 m)
Outside turning diameter (tracks, front steer only): 28.5' (8.7 m)
Outside turning diameter [26" (66 cm) and 29" (73.7 cm) tires,
front and rear steer]: 12.9' (3.9 m) and 16.5' (5 m)
Outside turning diameter (tracks, front and rear steer): 16.7' (5.1 m)
Service brake type: Hydraulic
Parking brake type: Mechanical hand break
ATTACHMENT OPTIONS
Front Options: Back options:
Backfill blade Center mount trencher
Backhoe Plow
Porta Bore Sliding offset trencher
Reel carrier
For more information on attachments, visit Vermeer.com
