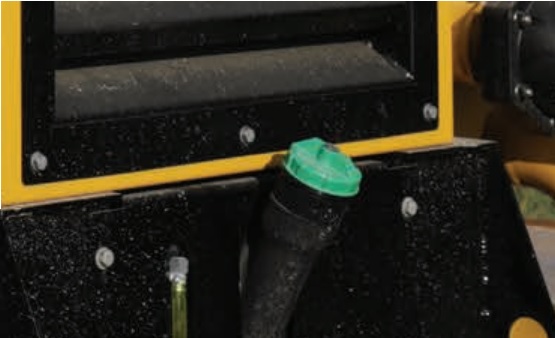

FUEL YOUR JOB.
Spend less time refi lling your
tank and more time
getting the job done with a
16-gal (60.6-L) fuel tank.
Also, use the same fuel
type as what runs in the drill.

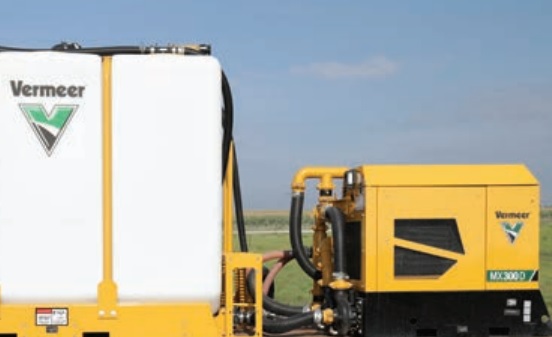

CONVENIENT CONFIGURATION. The MX300D
comes with two tanks, powered by the
same power
unit, to provide more fl uid onsite, with
the option to
support either the 750-gal (2,839.1-L)
or the 1,000-
gal (3,785.4-L) tank. The tanks can run
independently,
or together, depending on fl uid
amount needed.

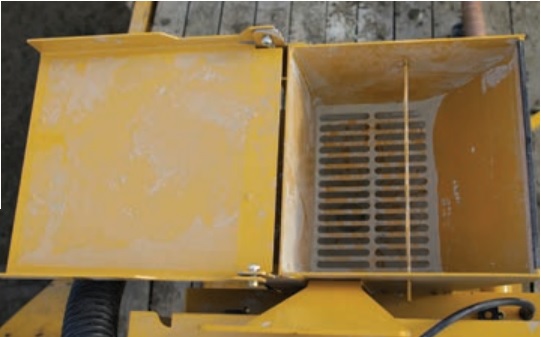

A CLEAN MIX. A wide-mouth hopper pairs
with the tapered bottom
rectangular tank to help
prevent drilling fluid additives
from settling, assist
with drainage and reduce buildup.

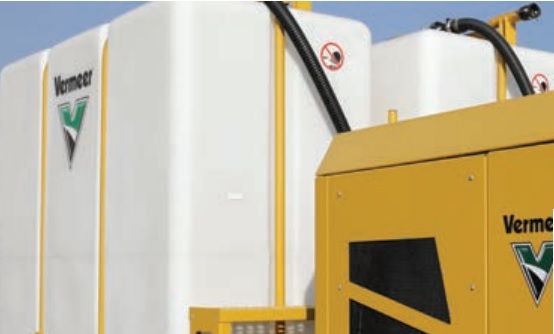

SLIM FIT. The MX300D features a rectangular
profi le which can
help maximize fl uid volume and
can be mounted for
convenient transport of two
tanks inside a standard-sized
enclosed truck.

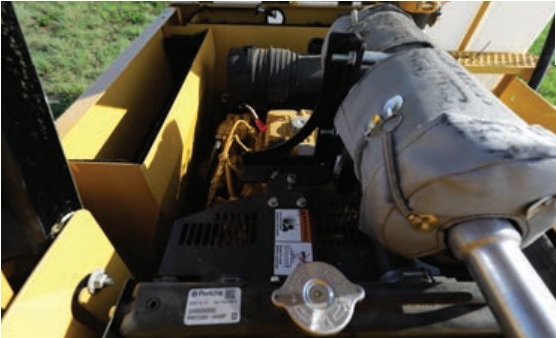

POWERFUL PERFORMANCE. The MX300D is
equipped with a 24.7-hp (18.42-kW)
CAT C1.1
engine and 350-gpm (1,324.9-L/min) pump
flow
to provide powerful performance on the job.

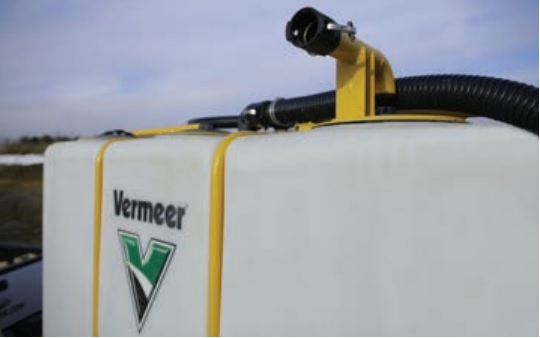

SERVICEABILITY. Maintain machine performance
with effi cient ways
to manage necessary components. The occasional
replacement of roll
jets is made convenient with
access through the
top of the tank, as well as
convenient access to
engine and pump service
components. Daily tasks
such as fi lling and
draining are made convenient
with a freshwater
fill feature and two valves for
system draining.

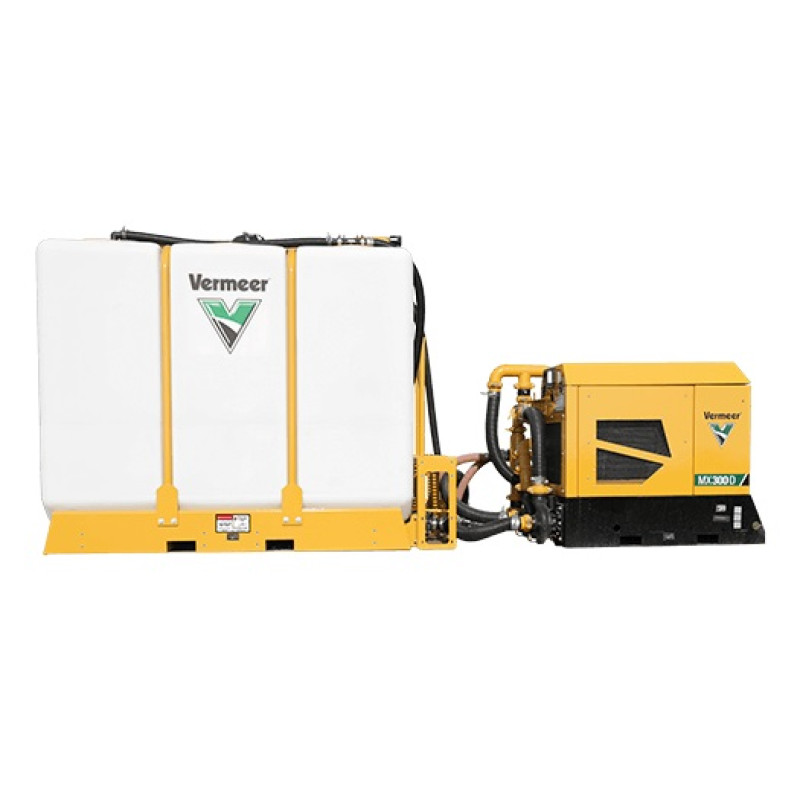

MX300D MIXING SYSTEM
POWER PACK
Length: 69 in (175.3 cm)
Height: 51 in (129.5 cm)
Width: 56 in (142.2 cm)
Weight: 1,800 lb (816.5 kg)
ENGINE OPTION ONE
Diesel: CAT 1 C1.1
Engine option 1 horsepower: 23 hp (17.2 kW)
Fuel capacity: 16 gal (60.6 L)
Pump type: MP Pump - two 3 in (7.6 cm) end suction
Mixing action: venturi/recirculation
Integrated mixing hopper: Yes/rectangular steel
Straining system (makeup water): Yes
Straining system (outlet): Yes
Flow output (max, water): 350 gpm (1325 lpm) per pump
TK750 - 750 GAL (2,839.1 L) TANK OPTION
Length: 105 in (266.7 cm)
International shipping length: 90.4 in (229.6 cm)
Width: 40 in (101.6 cm)
Height: 65 in (165.1 cm)
Mixing jets: 2-line eductor nozzles
Empty weight: 908 lb (411.9 kg)
At-capacity weight: 7,163 lb (3,249.1 kg)
TK1,000 - 1,000 GAL (3,785.4 L) TANK OPTION
Length: 105 in (266.7 cm)
International shipping length: 90.4 in (229.6 cm)
Width: 40 in (101.6 cm)
Height: 82 in (208.3 cm)
Mixing jets: 2-line eductor nozzles
Empty weight: 1,050 lb (476.3 kg)
At-capacity weight: 9,390 lb (4259.2 kg)
