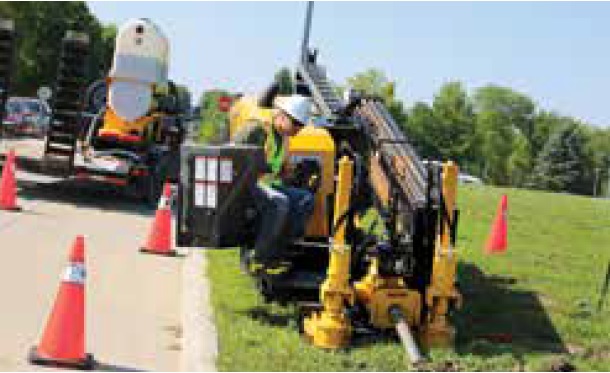

RIGHT POWER, RIGHT FOOTPRINT.
The D20x22 S3 offers a sizeable increase in
power
and rotational torque over its predecessor,
the
D16x20 Series II, making it well-suited to
install
cable, fiber and product pipe efficiently and
productively.

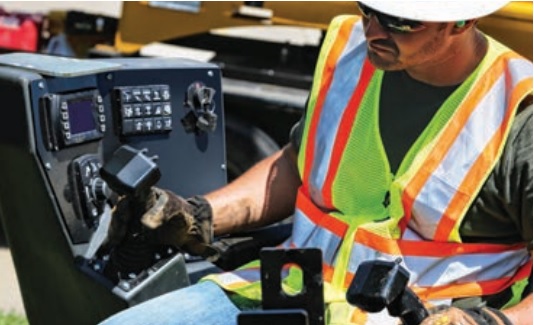

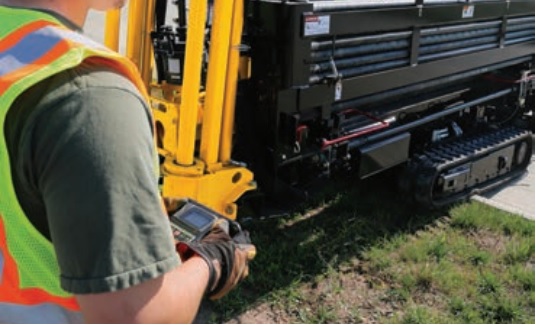

COMMON CONTROLS. The D20x22 S3 features
the new common
control platform from Vermeer,
which assists
in operator efficiency and training.
NARROW WHEN YOU NEED IT. The D20x22 S3
features a shorter, narrower
design and is lighterweight than comparative
competitive models,

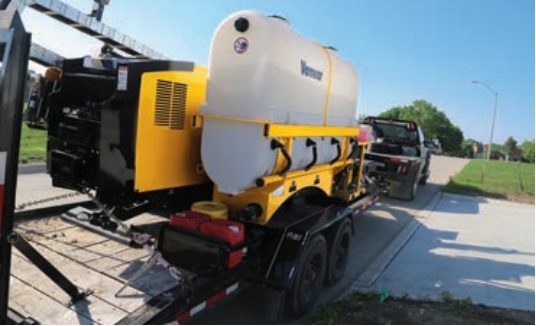

which allows for it to sit
comfortably on a trailer
when paired with a
mix system.

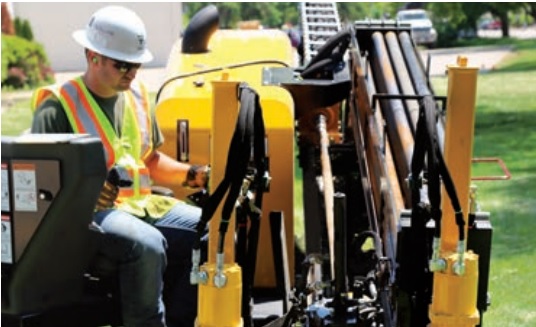

TOP OF ITS CLASS. With class-leading
rotational and carriage
speeds, the D20x22 S3
helps contractors
install more linear feet faster,
maximizing
jobsite productivity
GET TO YOUR NEXT JOB FASTER.
The D20x22 S3 features a 34 percent
increase
in tracking speed and a 30
percent increase in
tractive effort as
compared to its predecessor,
the D16x20
Series II, helping operators move up
curbs
and slopes faster to work more efficiently.

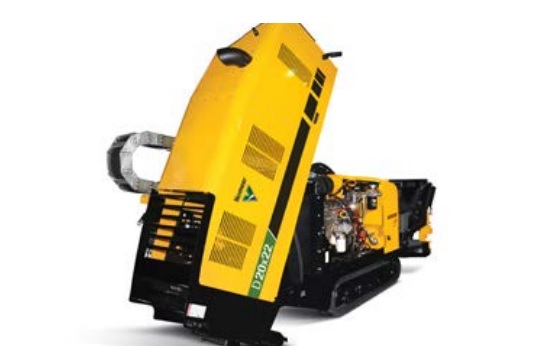

SERVICEABILITY. The drill’s flip-up metal hood
offers ease
of access when performing routine
service
and maintenance.

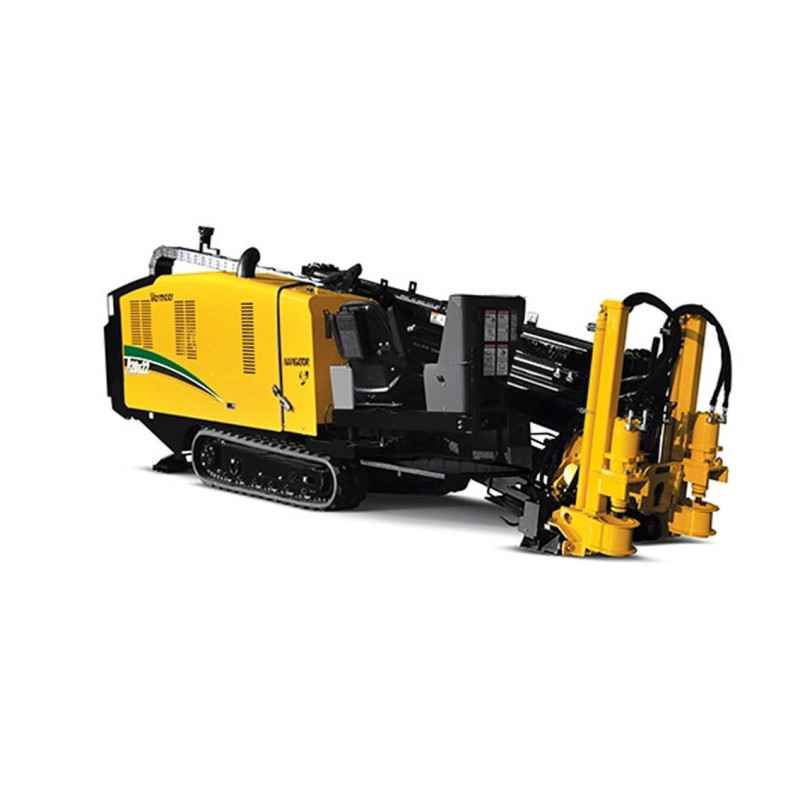

D20x22 S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 17' (5.2 m)
Min transport width: 48" (121.9 cm)
Min transport height: 78" (198.1 cm)
Weight (drill option one): 10,840 lb (4916.9 kg)
Weight (drill option two): 11,160 lb (5062.1 kg)
ENGINE OPTION ONE
Make/Model: Deutz TD2.9
Fuel type: Low sulfur diesel
Max engine rpm: 2600 rpm
Gross horsepower: 74 hp (55.4 kW)
Displacement: 177 cu in (2.9 L)
Cooling method: Liquid
Aspiration: Turbocharged
Noise level at operator’s ear: 86.5 dB(A)
Emissions rating: Tier 4i (EU Stage IIIA)
ENGINE OPTION TWO
Make/Model: Deutz TD2.9
Fuel type: Ultra-low sulfur diesel
Max engine rpm: 2600 rpm
Gross horsepower: 74 hp (55.4 kW)
Displacement: 177 cu in (2.9 L)
Cooling method: Liquid
Aspiration: Turbocharged
Noise level at operator’s ear: 86.5 dB(A)
Emissions rating: Tier 4 Final (EU Stage IV)
ENGINE OPTION THREE
Make/Model: Deutz TD2.9
Fuel type: Ultra-low sulfur diesel
Max engine rpm: 2600 rpm
Gross horsepower: 74 hp (55.4 kW)
Displacement: 177 cu in (2.9 L)
Cooling method: Liquid
Aspiration: Turbocharged
Noise level at operator’s ear: 91 dB(A)
Emissions rating: Tier 4 Final (EU Stage V)
OPERATIONAL
Thrust/Pullback: 19,500 lb (86.7 kN)
Max carriage speed at max engine rpm: 160 fpm (48.8 m/min)
Max spindle torque (low at max engine rpm): 2200 ft-lb (2983 Nm)
Max spindle speed at max engine rpm: 250 rpm
Min bore diameter: 3" (7.6 cm)
Max ground drive speed at max engine rpm (fwd): 3.3 mph (5.3 km/h)
Drill rack angle: 12°-17° (21%-30.6%)
FLUID CAPACITIES
Fuel tank: 25 gal (94.6 L)
Hydraulic tank: 30 gal (113.6 L)
Hydraulic system: 40 gal (151.4 L)
DRILLING FLUID SYSTEM
Max flow: 25 gpm (94.6 L/min)
Max pressure: 1000 psi (6.9 MPa)
FEATURES
Breakout system: Standard hydraulic vise
Drilling lights: Optional
Flow indicator: Standard
Stakedown system: Standard
Strike alert: Standard
Remote lockout: Standard
DRILL PIPE OPTION ONE
Type: Firestick® drill rod
Length: 10' (3 m)
Rod diameter: 1.9" (4.8 cm)
Weight: 55 lb (24.9 kg)
Bend radius: 98.7' (30.1 m)
Onboard capacity: 400’ (121.9 m)
DRILL PIPE OPTION TWO
Type: Firestick drill rod
Length: 10' (3 m)
Rod diameter: 2.06" (5.2 cm)
Weight: 62 lb (28.1 kg)
Bend radius: 101.9' (31.1 m)
Onboard capacity: 400’ (121.9 m)
