ROBUST AND POWERFUL.

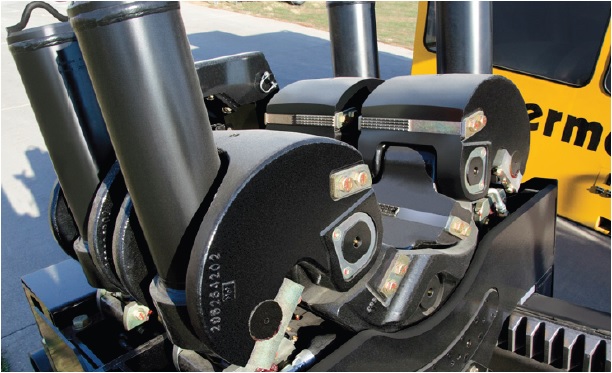

Robust vise design
uses a planetary gear
for breakout power.

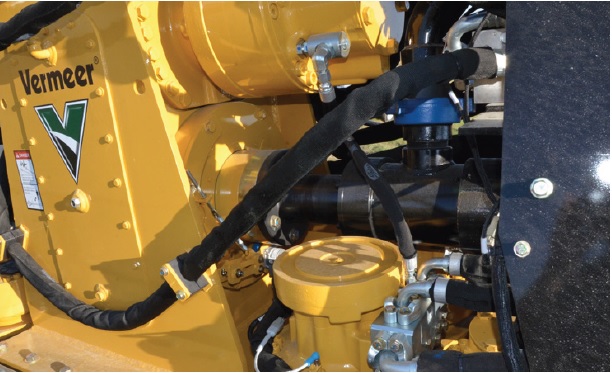

DRILL ON. AutoDrill allows the operator to set the
rotation and thrust/pullback pressure
while drilling
in changing soil conditions.

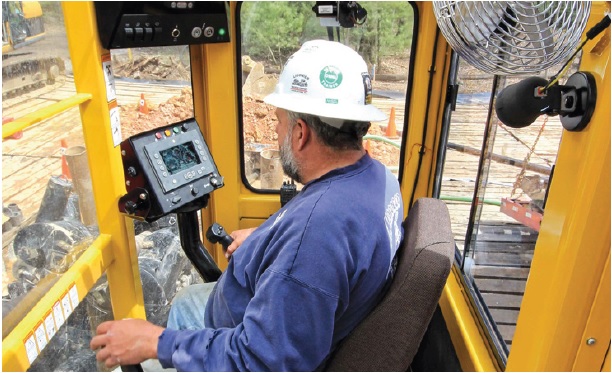

PERFORM IN COMFORT. All drilling functions
can be performed
from the cabin for ultimate
comfort
and convenient operation.

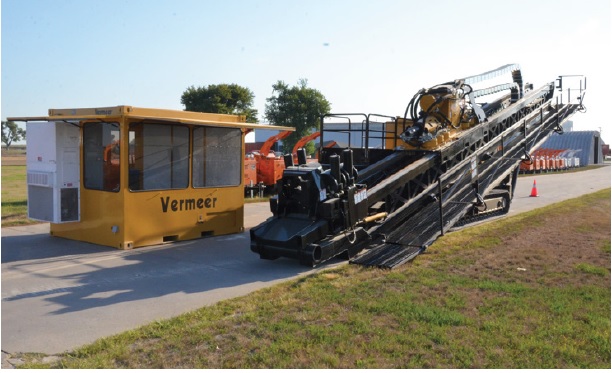

CHOOSE YOUR DRILLING EXPERIENCE.
Detached cab units offer a classic drilling
setup
preferred by some operators, and
the spacious
cabin is well suited for in-cab
meetings.

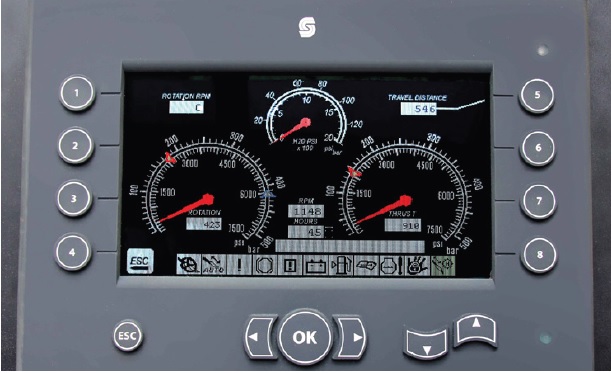

EASY TO ANALYZE DISPLAY. Onboard
diagnostics include fault codes
for enhanced
serviceability and
troubleshooting.
TRANSPORTATION MADE SIMPLE.
Self-contained design allows quick, easy
setup
and convenient highway transport.

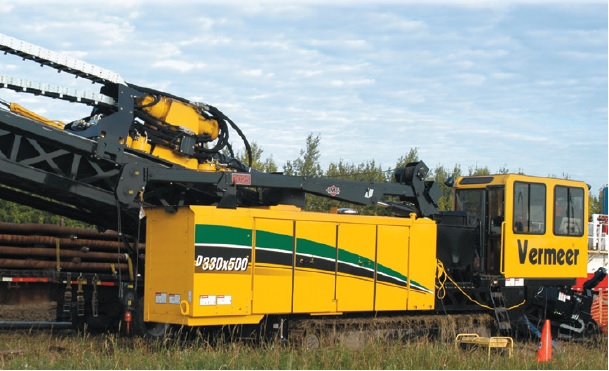

D330x500 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 54.3' (16.6 m)
Min transport width (with cab): 100" (254 cm)
Height (with cab): 11.2" (3.4 m)
Weight (with crane): 90,000 lb (40,823.3 kg)
Weight (without crane): 85,000 lb (38,555.4 kg)
ENGINE
Make and model: Caterpillar C-15 ACERT
Fuel type: Diesel
Max engine: 2100 rpm
Gross horsepower: 540 hp (402.7 kW)
Max torque: 1819 ft-lb (2466.2 Nm)
Displacement: 928 cu in (15.2 L)
Cooling method: Liquid
Aspiration: Turbocharged
Max fuel consumption: 28.9 gph (109.5 L/hr)
Air cleaner: Donaldson - FVG 160587
Emissions rating: Tier 3 (EU Stage III A) or Tier 4 Final (EU Stage IV)
DRILLER’S CABIN
Length: 11.6' (3.5 m)
Width: 7.9' (2.4 m)
Height: 8' (2.4 m)
Weight: 6000 lb (2721.6 kg)
Heat and air conditioning: 3 ton (10.6 kW) in-wall combination unit
OPERATIONAL
Thrust/Pullback: 340,000 lb (1512.3 kN)
Max carriage speed at max engine rpm: 87 fpm (26.5 m/min)
Max spindle torque (low at max engine rpm): 50,800 lb (68,875.6 Nm)
Max spindle speed (high at max engine rpm): 89 rpm
Min bore diameter: 6.5" (16.5 cm)
Max ground drive speed at max engine rpm: 4.2 mph (6.8 km/h)
Automated rod loader: No
Noise level at operator's ear: 83 d(B)A
Drill rack angle: 13˚-18˚
FLUID CAPACITIES
Fuel tank: 210 gal (794.9 L)
Hydraulic tank: 200 gal (757.1 L)
Hydraulic system: 270 gal (1022.1 L)
CRANE
Max lifting capacity: 10,500 lb (4762.7 kg)
Max lifting capacity - boom extended/max reach: 2325 lb (1054.6 kg)
Rotation: 360˚
Max reach: 25.3' (7.7 m)
FEATURES
Breakout system: Accepts 10" (25.4 cm) diameter
Drilling lights: Standard
Flow indicator: Yes
Stakedown system: Pad mount
Onboard cab: Standard
Driller's cabin: Optiona
