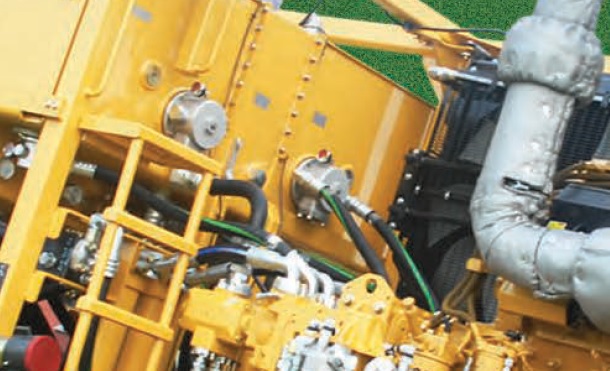

DURABLE HYDRAULIC CIRCUIT.
Independent hydraulic circuits are an important
factor in limiting contamination to the affected
circuit and its respective components.

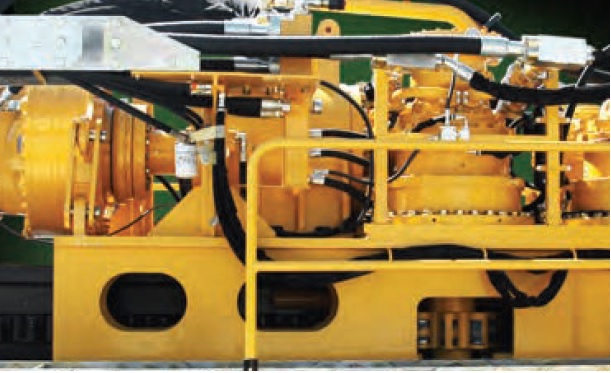

STAY PRODUCTIVE. Stay productive and efficient due to a hydraulic
motor design which allows for full torque and
rotary rpm simultaneously.

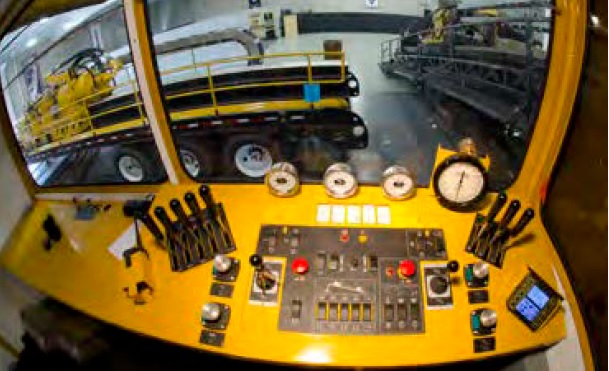

WORK IN COMFORT. Operator console designed for comfort and
large windows for exceptional visibility.
MASTER YOUR TERRAIN. Conquer difficult ground conditions with a
high-torque design.

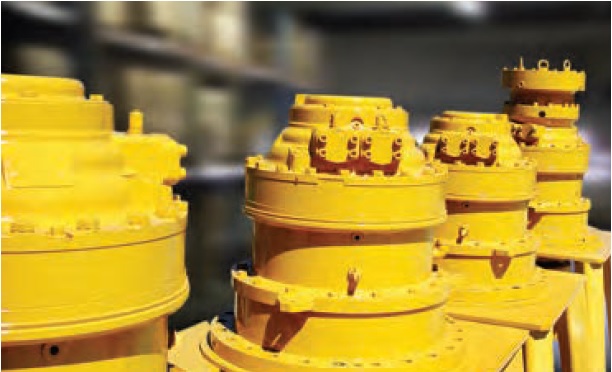

BY YOUR SIDE. Our Parts Center has drive motors, rotation
motors, gear boxes, pumps, valves, coolers
and many other major components in stock
and ready for delivery

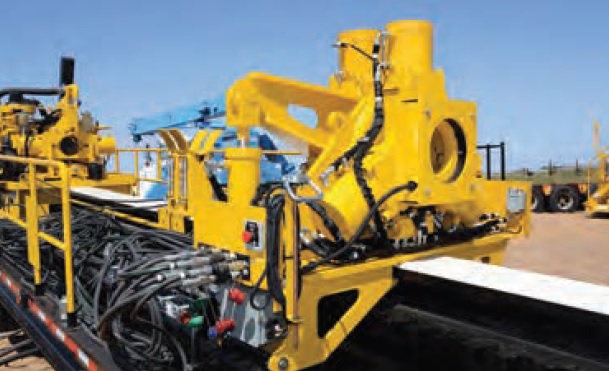

STAY ON SCHEDULE. A floating vise allows the breakout system
to clamp the rod fully during breakout,
prevent rod wrap and keep your crew on
schedule.

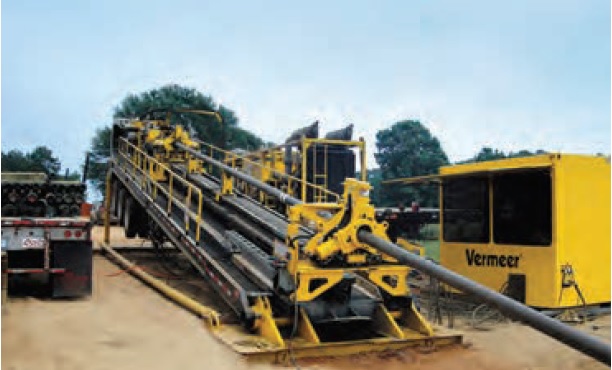

D1320x900 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
DRILL RACK
Min transport length: 50.3' (15.3 m)
Width: 8.5' (2.6 m)
Min transport height: 11.5' (3.5 m)
Weight (no breakout vise): 101,000 lb (45,812.8 kg)
Suspension: Triple axle with air ride suspension
Front base anchor length: 20' (6.1 m)
Front base anchor width: 6' (1.8 m)
Front base anchor height: 38.4" (97.5 cm)
Front small anchor length: 10.5' (3.2 m)
Front small anchor width: 5.5' (1.7 m)
Front small anchor height: 22.8" (57.9 cm)
Rear base anchor length: 16' (4.9 m)
Rear base anchor width: 7.8' (2.4 m)
Rear base anchor height: 15.6" (39.6 cm)
Drill rack angle: 10° - 15° (17.5% - 26.2%)
DRILLER’S CABIN
Length: 11.6' (3.5 m)
Width: 7.9' (2.4 m)
Height: 8' (2.4 m)
Weight: 7800 lb (3538 kg)
Heat and air conditioning: 3 ton (10.6 kW) in-wall combination unit
POWER PACK
Make and model: (1) CAT C-27 ACERT
Fuel type: Diesel
Fuel capacity: 500 gal (1892.7 L)
Hydraulic tank capacity: 720 gal (2725.5 L)
Max engine rpm: 2000 rpm
Gross horsepower: 800 hp (597 kW)
EPA certification family: Tier 3 (EU Stage IIIA)
POWER PACK OPTION TWO
Make and model: (2) CAT C-18 ACERT
Fuel type: Diesel Fuel capacity: 1000 gal (3785.4 L)
Hydraulic tank capacity: 720 gal (2725.5 L)
Max engine rpm: 2000 rpm
Gross horsepower: 1200 hp (895 kW)
EPA certification family: Tier 3 (EU Stage IIIA) or Tier 4 Final (EU Stage IV)
POWER PACK OPTION THREE
Make and model: (2) CAT C-27 ACERT
Fuel type: Diesel
Fuel capacity: 1000 gal (3785.4 L)
Hydraulic tank capacity: 720 gal (2725.5 L)
Max engine rpm: 2000 rpm
Gross horsepower: 1600 hp (1193 kW)
EPA certification family: Tier 3 (EU Stage IIIA)
OPERATIONAL
Thrust/Pullback: 1,328,000 Ib (5,906.9 kN)
Max spindle torque: 99,400 ft-Ib (134,768.3 Nm)
Max spindle speed at max engine rpm (with PS800): 38 rpm
Max spindle speed at max engine rpm (with PS1200/PS1600): 57 rpm
Max carriage speed at max engine rpm: 52 fpm (15.8 m/min)
Number of rotation motors: 1
Number of drive motors: 6
Mud swivel: 3" (7.6 cm)
LOWER BREAKOUT VISE
Breakout torque: 147,500 ft-lb (199,983.1 Nm)
Configuration: 3-jaw clamp, 8" (20.3 cm)
Weight: 3800 lb (1723.7 kg)
Travel: 6' (1.8 m)
Inside diameter: 10" (25.3 cm)
UPPER BREAKOUT VISE
Clamp force: 176,000 lb (782.8 kN)
Configuration: 2-jaw clamp
Inside diameter: 10" (25.4 cm)
SAFETY
Remote lockout: Yes
Strike alert: Yes
