BUILDING ON GREATNESS.
Incorporating
dependability and performance
of the D40x55 S3
Navigator® horizontal
directional drill with the
latest advancements
in dual rod technology
create a familiar operator
experience that will
outperform many other
rock drilling solutions.

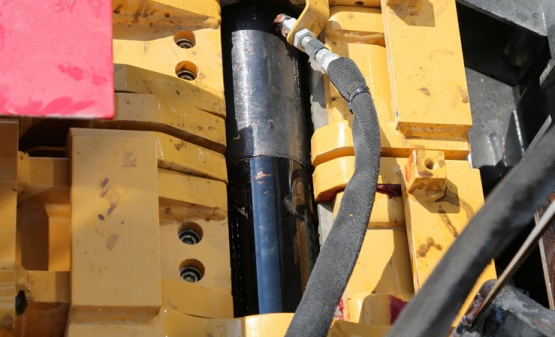

REDUCED STEPS. The time and steps required
to add or remove
a rod on the D40x55DR S3 is
significantly less
than previous Vermeer models
due to an
enhanced dual drill rod design that
quickly
and easily makes up the inner and outer
rod
connections.

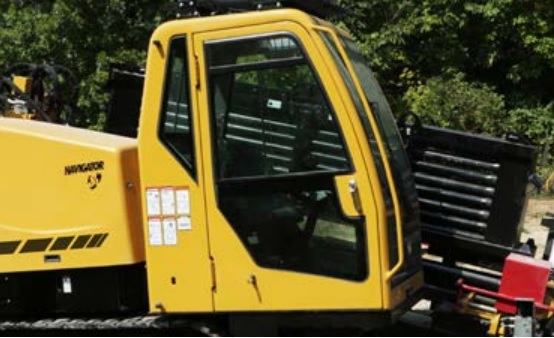

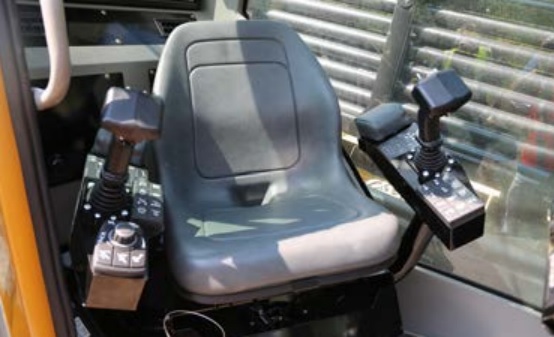

ADDED COMFORT. Install with added comfort
of climate control,
weatherproofing and reduced
noise levels of
80 dBA at the operator’s ear in a
standard
operator’s cab.

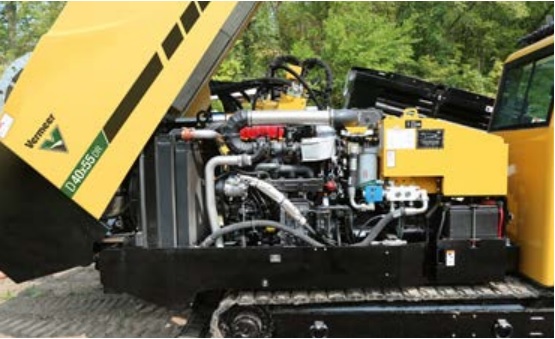

IMPRESSIVE POWER. Powered by a 140 hp
(104 kW) John Deere
diesel engine, this drill
serves up 40,000 lb
(177.9 kN) of thrust/pullback
and 5,500
ft-lb (7,457 Nm) of rotational torque.

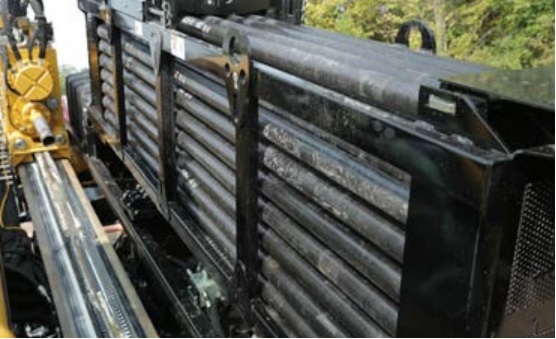

MORE FEET ONBOARD. Install more feet and
save time with
an impressive 500' (152.4 m) of
drill
rod on-board.

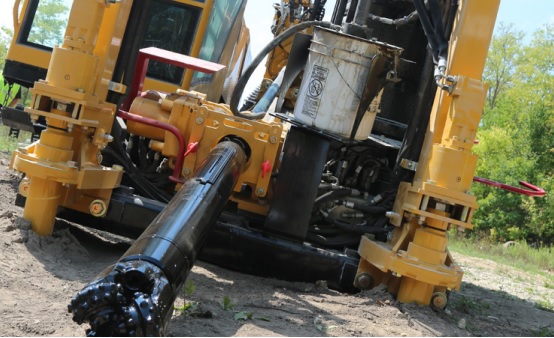

LESS RESTRICTIONS. A hollow inner rod design
results in more
air and drilling fluid flow to the drill
head
on pilot bores and the hole opener
during
pullback, providing contractors
the ability to select
from a more diverse
range of tooling options,
including air
hammers and larger hole openers.

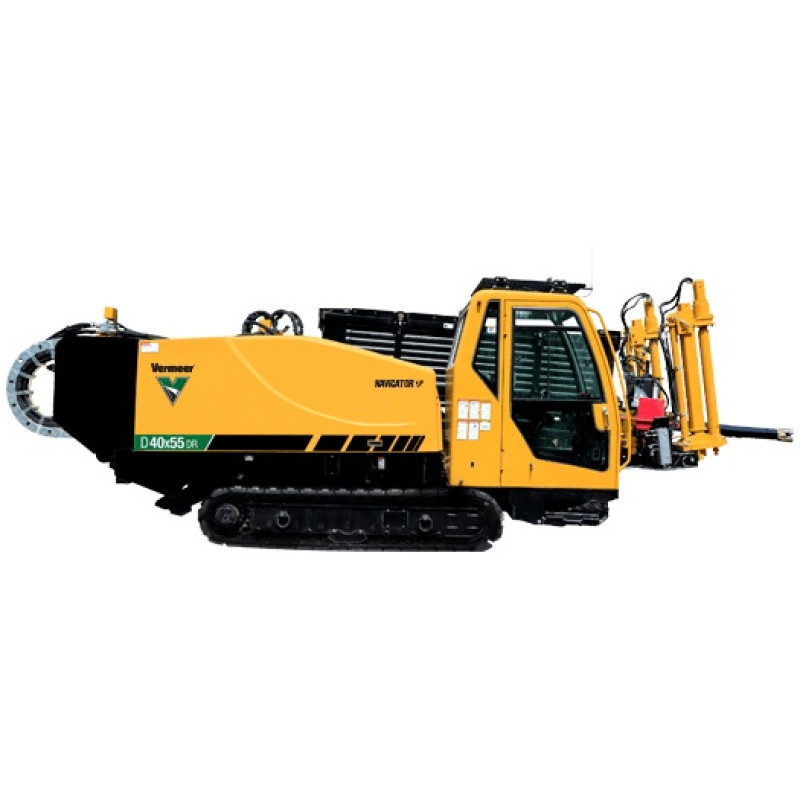

D40x55DR S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 264” (670.6 cm)
Max operational length: 296" (752 cm)
Min transport width: 89" (226 cm)
Max operational width: 120" (305 cm)
Min transport height: 110” (279 cm)
Max operational height: 126” (320 cm)
Max weight: 31500 lb (14288 kg)
Angle of approach: 23 deg
Angle of departure: 19 deg
ENGINE OPTION ONE
Make and model: John Deere
Fuel type: Diesel
Max engine rpm: 2400 rpm
Gross horsepower: 140 hp (104 kW)
Aspiration at full engine load: Turbocharged
Max fuel consumption: 7.56 gph (28.6 lph)
Emissions rating: Tier 4 Final (EU Stage lV)
Max operating angle (fore/aft): 30 continuous/45 intermittent
Max operating angle (left/right): 30 continuous/45 intermittent
ENGINE OPTION TWO
Make and model: John Deere
Fuel type: Diesel
Max engine rpm: 2400 rpm
Gross horsepower: 140 hp (104 kW)
Aspiration at full engine load: Turbocharged
Max fuel consumption: 7.56 gph (28.6 lph)
Emissions rating: Tier 3 (EU Stage IllA)
Max operating angle (fore/aft): 30 continuous/45 intermittent
Max operating angle (left/right): 30 continuous/45 intermittent
FLUID CAPACITIES
Fuel tank: 45 gal (170.1 L)
Hydraulic system: 65 gal (245.7 L)
DRILLING FLUID SYSTEM ONE
Max flow: 70 gpm (264.6 lpm)
Max pressure: 900 psi (60.2 bar)
DRILL PIPE - DUAL
Min bend radius: 169' (52 m)
Rod carrying capacity: 500' (152 m)
Length: 10' (3 m)
Drill rod (inner): Forged, hex connection
Drill rod (inner) - joint diameter: 1.88" (4.8 cm)
Drill rod (inner) - pipe diameter: 1.66" (4.2 cm)
Drill rod (inner) - weight: 40 lb (18.2 kg)
Drill rod (inner) - joint inside diameter: .75" (1.9 cm)
Drill rod (outer): Firestick - #750
Drill rod (outer) - joint diameter: 3.31" (8.4 cm)
Drill rod (outer) - pipe diameter: 2.63” (6.7 cm)
Drill rod (outer) - weight: 86 lb (39 kg)
Drill rod (outer) - joint inside diameter: 2.06" (5.2 cm)
FEATURES
Breakout system: Sliding, open top vise
Drilling lights: Standard
Flow indicator: Mud flow indicator
Stakedown system: Standard aggressive
Cab: Standard
Strike alert: Standard
Remote lockout: Standard
OPERATIONAL
Thrust rod: 40,000 lb (177.9 kN)
Pullback rod: 40,000 lb (177.9 kN)
Max carriage speed at max engine rpm - fpm (m/min): 115 fpm
(35.1 m/min)
Max spindle torque (max engine rpm) - ft-lb (Nm): 5500 ft-lb
(7458 Nm)
Max spindle speed at max engine rpm - (rpm): 199 rpm
Min bore diameter: 6.25” (15.9 cm)
Max ground drive speed at max engine rpm - mph: 2.7 mph
(4.3 km/h)
Noise level at operator’s ear: 80 dB(A)
Guaranteed sound power engine: 104 dB(A)
