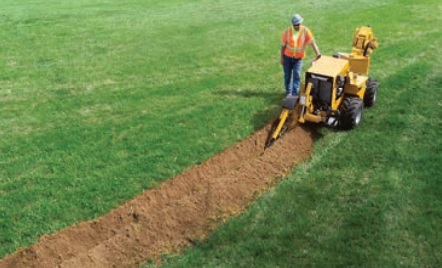

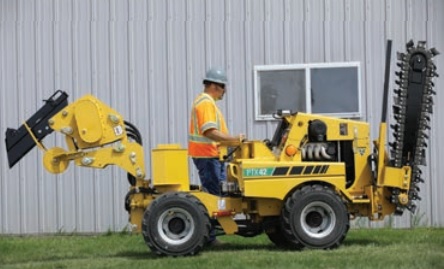

HANDS-ON CONTROL.
The PTX42 plow/trencher
offers walk-beside hand
controls that pivot from side
to side of the machine
for convenient operation and
to maneuver around
potential obstacles or congested
spaces on a jobsite.
The control placement can help
minimize operator
reach and maintain operator
comfort.
ATTACHMENTS FOR THE JOB.
The PTX42 has
a variety of versatile attachment
options, including
a backhoe, trencher, plow, porta
bore and two reel
carriers. Select the right attachment
that best fi ts
the needs of your operation and jobsite.
SET YOUR SPEED. The electronic control allows
for convenient setting
of the creep speed to help
optimize performance on
longer distance
installations, allowing productivity
while helping to
reduce operator fatigue, whether
trenching
or plowing.

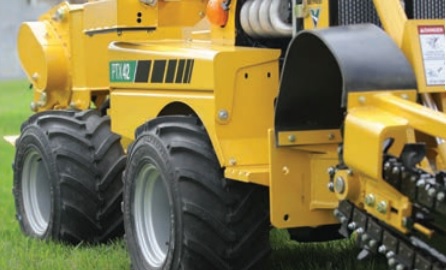

STAY ON TRACK. For varying ground conditions,
choose from tires or
tracks - the PTX42 offers a
23” (58.4 cm) foam-fi lled
tire option, while the
slightly larger 26” (66 cm) air-filled
tires can help
with traction. A 23” (58.4 cm) dual air-filled
tire
option offers stability and lower ground pressure,
and a track option is well-suited for uneven terrain.
CONVENIENT SERVICE. Perform routine
maintenance, and service the machine
with
convenient access to service points without
removing the hood shielding.

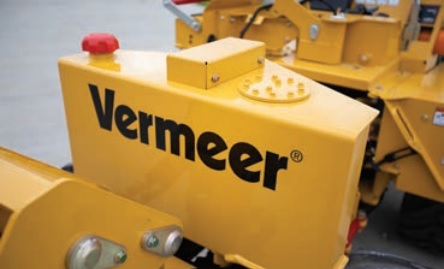

FUEL UP. The PTX42 has a 12 gal (45.4 L) fuel
tank that offers
longer operation time between
refi lls to keep your
operation moving forward
effi ciently

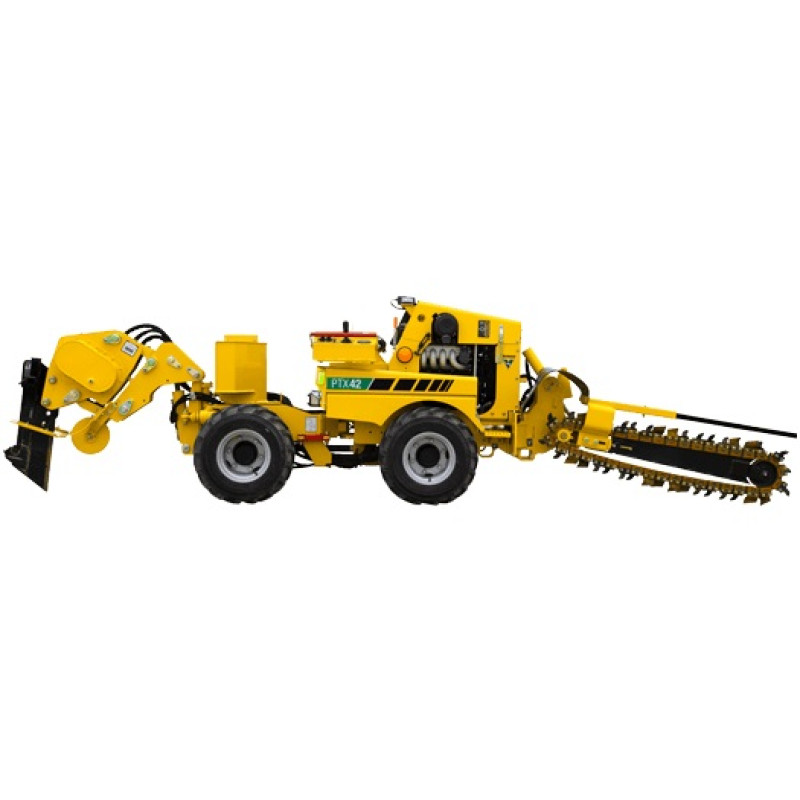

PTX42 PLOW/TRENCHER
GENERAL DIMENSIONS
Weight (basic tractor, rubber tires): 3240 lbs (1470 kg)
Weight (basic tractor, rubber tires, option 2): 3188 lbs (1446 kg)
Weight (basic tractor, rubber tires, option 3): 2940 lbs (1333.5 kg)
Weight (basic tractor, tracks): 3840 lbs (1741.8 kg)
Length (basic tractor, rubber tires option 1, 2, and 3): 84.8" (215.4 cm)
Length (basic tractor, tracks): 92.8" (235.7 cm)
Width (basic tractor, rubber tires): 44.5" (113 cm)
Width (basic tractor, rubber tires, option 2): 62.4" (158.5 cm)
Width (basic tractor, rubber tires, option 3): 48.4" (122.9 cm)
Width (basic tractor, tracks): 46.1" (117 cm)
Height (basic tractor, rubber tires option 1 and 2): 53.4" (135.6 cm)
Height (basic tractor, rubber tires, option 3): 54.9" (139.4 cm)
Height (basic tractor, tracks): 53.9" (137 cm)
Wheel base (centerline of axles): 48" (121.9 cm)
Tread width with rubber tires (centerline to centerline): 30.3" (77 cm)
Tread width with rubber tires option 2 (centerline to
centerline): 36" (91.4 cm)
Tread width with rubber tires option 3 (centerline to
centerline): 39" (99.1 cm)
Tread width with rubber tracks (centerline to centerline): 32.3" (82 cm)
Ground clearance (rubber tires, option 1 and 2): 6.4" (16.2 cm)
Ground clearance (rubber tires, option three): 7.9" (20 cm)
Ground clearance (tracks): 6.9" (17.4 cm)
ENGINE OPTION ONE
Make and model: Kubota WG1605
Manufacturer's gross hp rating: 46.8 hp (34.9 kW)
Max torque: 88.7 ft-lb (120.3 Nm)
Cooling medium: Liquid Cooled
Fuel type: Gas
Emissions rating: EPA Phase 3 and CARB LSI
ATTACHMENT OPTIONS
Front options: Back options:
backhoe plow
reel carrier
trencher
porta bore
GROUND DRIVE - RUBBER TIRE OPTION ONE
Max transport speed (fwd/rev): 2.4 mph (3.9 km/h)
Max creep speed (fwd/rev): 127 fpm (38.7 m/min)
Tire size: 23" (58.4 cm) x 10.5" (26.7 cm) - 12" (30.5 cm)
Fill option: Single tire foam
GROUND DRIVE - RUBBER TIRE OPTION TWO
Max transport speed (fwd/rev): 2.4 mph (3.9 km/h)
Max creep speed (fwd/rev): 127 fpm (38.7 m/min)
Tire size: 23" (58.4 cm) x 10.5" (26.7 cm) - 12" (30.5 cm)
Fill option: Dual tire air
GROUND DRIVE - RUBBER TIRE OPTION THREE
Max transport speed (fwd/rev): 2.7 mph (4.3 km/h)
Max creep speed (fwd/rev): 143 fpm (43.5 m/min)
Tire size: 26" (66 cm) x 12" (30.5 cm) - 12 (30.5 cm)
Fill option: Single tire air
GROUND DRIVE - TRACKS
Max transport speed (fwd/rev): 2.4 mph (3.9 km/h)
Max creep speed (fwd/rev): 127 fpm (38.7 m/min)
Track width: 11" (27.4 cm)
AXLE OPTIONS
Front and rear axle type: Planetary
Outside turning diameter (rubber tires, front and rear steer):
18.4' (5.6 m)
Outside turning diameter (rubber tires option two, front and rear
steer): 20' (6.1 m)
Outside turning diameter (rubber tires option three, front and
rear steer): 19' (5.8 m)
Outside turning diameter (tracks, front and rear steer):
18.8' (5.7 m)
CAPACITIES
Fuel tank: 12 gal (45.4 L)
Hydraulic tank: 9 gal (34.1 L)
Hydraulic system: 11 gal (41.6 L)
Coolant: 1.25 gal (4.7 L)
FEATURES
Telematics capable
