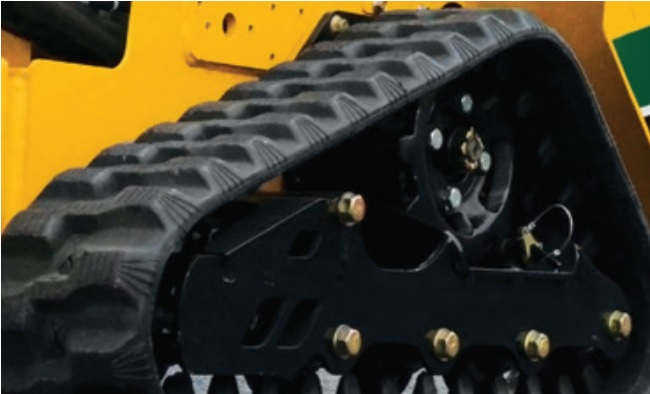

LONGEST TRACKS IN ITS CLASS.
Provides consistent stability with easier loading
and unloading of the machine compared to
shorter tracked models. The longer tracks offer
best-inclass low ground pressure, which helps
reduce the possibility of turf damage.

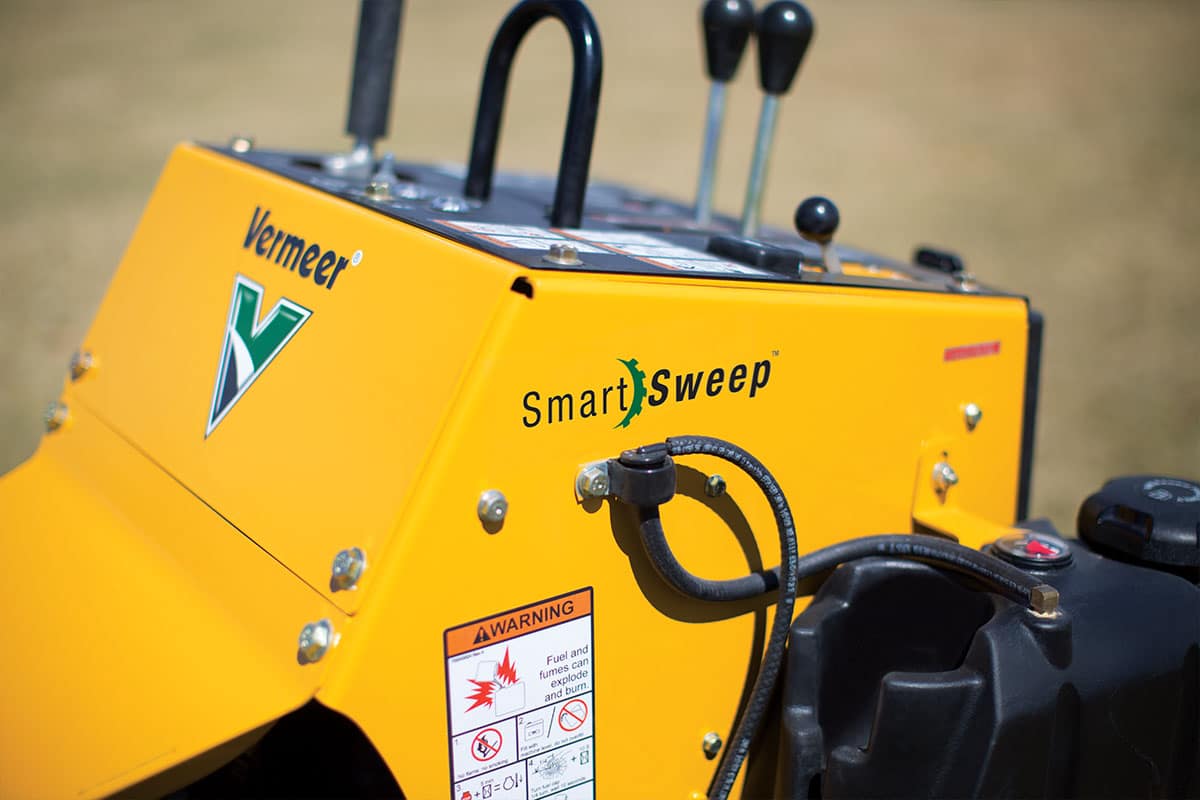

SMOOTH OPERATION. The exclusive SmartSweep™ control system
monitors engine load and provides continuous
feedback, resulting in a smooth and consistent
cutter wheel sweep rate.

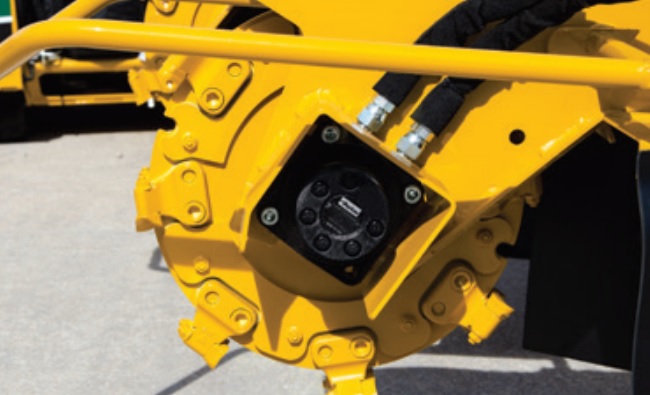

PATENTED YELLOW JACKET™ CUTTER SYSTEM. The Vermeer-exclusive Yellow Jacket cutter system i
s designed to provide faster, easier serviceability,
as well as extended pocket and tooth life.

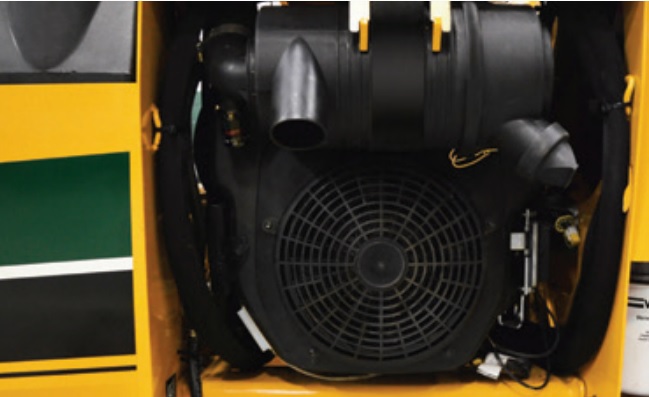

25 HP (18.6 KW) EFI ENGINE.
Starts well during cold weather, makes choke
cables obsolete and offers improved fuel economy
over comparable carbureted gas engines.

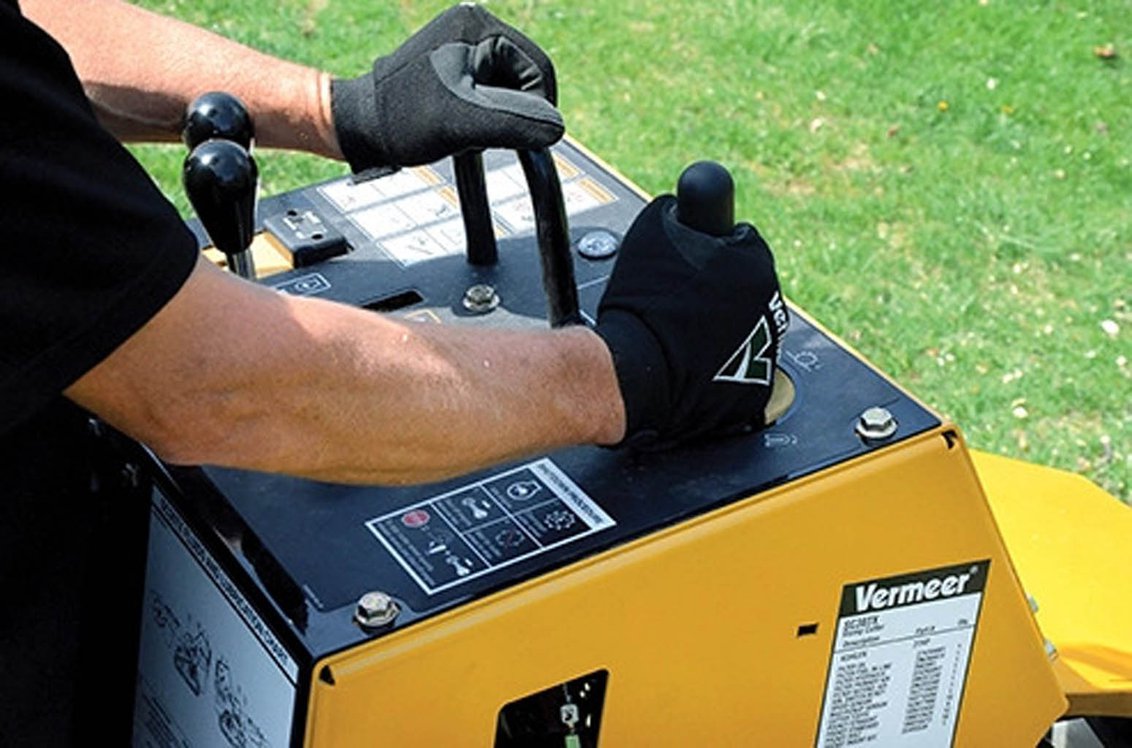

OPERATOR PRESENCE SYSTEM. Control handle for the boom swing and boom raise/lower
is equipped with operator presence capacitance-sensing
handle. This system is intended to help protect the operator.
HYDRAULICALLY DRIVEN CUTTER WHEEL AND GROUND DRIVE.
The elimination of belts or chain drives reduces
service and maintenance

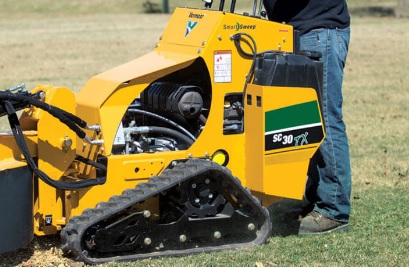

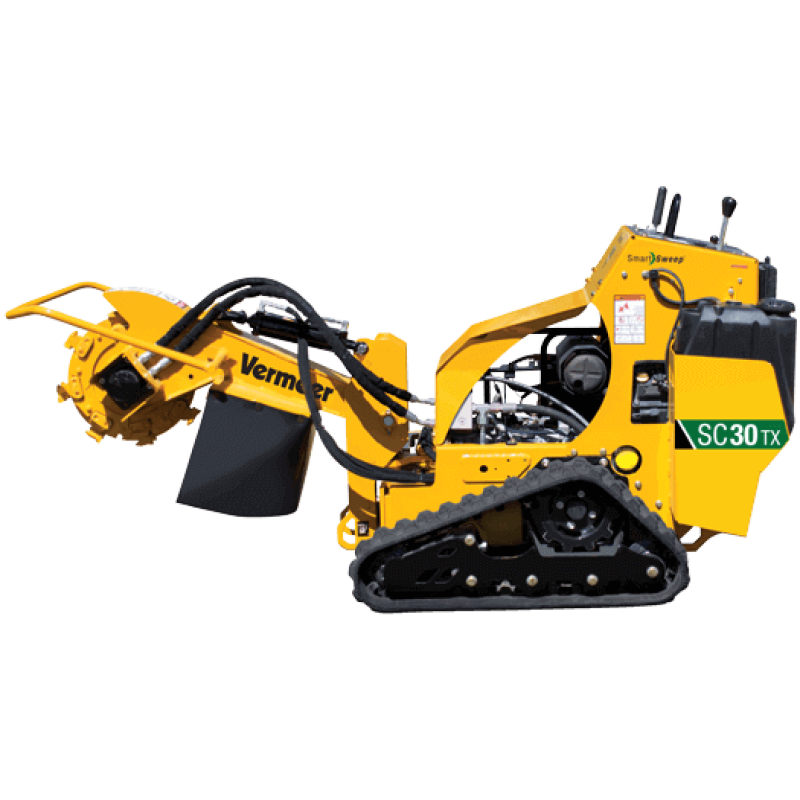

SC30TX STUMP CUTTER
GENERAL
Length: 94" (238.8 cm)
Width: 35" (88.9 cm)
Height: 49" (124.5 cm)
Weight: 1550 lb (703.1 kg)
ENGINE
Make and model: Kohler ECH740 EFI
Number of cylinders: 2
Max gross horsepower: 25 hp (18.6 kW)
Max torque: 42 ft-lb (56.9 Nm)
Fuel tank capacity: 6.8 gal (25.7 L)
Fuel type: Gas
Air cleaner: 6" (15.2 cm) 2-stage dry
Oil filter: Spin-on
Oil volume with filter: 2 qt (1.9 L)
Cooling medium: Air/Oil
CUTTER WHEEL DRIVETRAIN
Cutter wheel diameter without teeth: 16" (40.6 cm)
Cutter wheel thickness: .5" (1.3 cm)
Cutter wheel straight-line dimension: 35.5" (90.2 cm)
Cutter wheel cut above ground: 25" (63.5 cm)
Cutter wheel cut below ground: 12" (30.5 cm)
Tooth description: Yellow Jacket™ cutter system
Number of teeth: 16
Number of indexes: 2
Number of pockets: 16
Reversible pockets: Yes
Cutter wheel guard: Yes
Chip containment: 2.2 cu ft (.1 m3
)
HYDRAULIC SYSTEM
Tank capacity: 9 gal (34.1 L)
Recommended oil type: ISO 68
Filtration method: In-line return filter
Pump flow at max rpm: 16 gpm (60.6 L/min)
System relief pressure: 2750 psi (189.6 bar)
Flow control: SmartSweep control system
Directional control: Standard
Oil cooler: Fan-cooled
ELECTRICAL SYSTEM
System voltage: 12 V
Battery: 405
Standard gauge: Hour meter/tach
Switches: Cutter wheel drive
Controller: Yes
TRACK DRIVE SYSTEM
Track type: Rubber 7" (17.8 cm) width
Track length on ground: 31.4" (79.8 cm)
Type of idler: Cast
Number of idlers: 5
Track drive pump type: Hydrostatic
System relief pressure: 2900 psi (199.9 bar)
Pump flow at max rpm: 11.4 gpm (43.2 L/min)
High-speed travel: 3.2 mph (5.1 km/h)
Ground-bearing pressure – soft ground: 3.4 psi (23.4 kPa)
