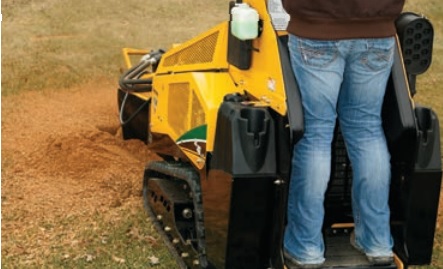

FIRST-OF-ITS-KIND.
Drive to, and even cut
the stump, from the
stand-on operator platform.
This first-of-its-kind
feature offers improved
speed and maneuverability
over traditional
self-propelled models.

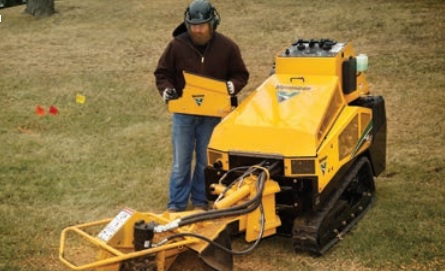

CHOOSE YOUR VIEW. The side operator's
station offers the ability
to select the best angle
from which
to view the stump during operation
and provides all
control functions for cutter wheel
and ground drive
creep forward and reverse.

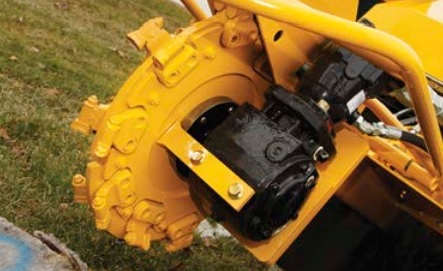

ON THE CUTTING EDGE. The cutter wheel is
equipped with Vermeer
proprietary Pow-R™ plate
technology
which helps to lessen bounce while
cutting, increase
protection of cutter tooth pockets
and reduce
horsepower robbing chip recirculation.
SMOOTH OPERATION. The exclusive
SmartSweep™ control system monitors
engine load
and provides continuous feedback
resulting in a
smooth and consistent cutter wheel
sweep rate.

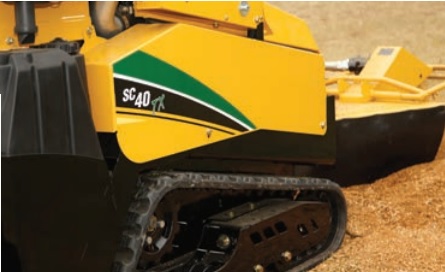

ALL TERRAIN. A counter-rotating track
undercarriage enhances
maneuverability by
making it easier to reposition
when cutting a
stump. The tracks also offer good
floatation and
the ability to operate in less-than-ideal
ground conditions.
POWER AT THE STUMP. A 40 hp (29.8 kW)
T4 Final diesel engine provides
substantial power
and uses a DOC after-treatment
system, which
offers reduced maintenance and could
lower
operating costs.

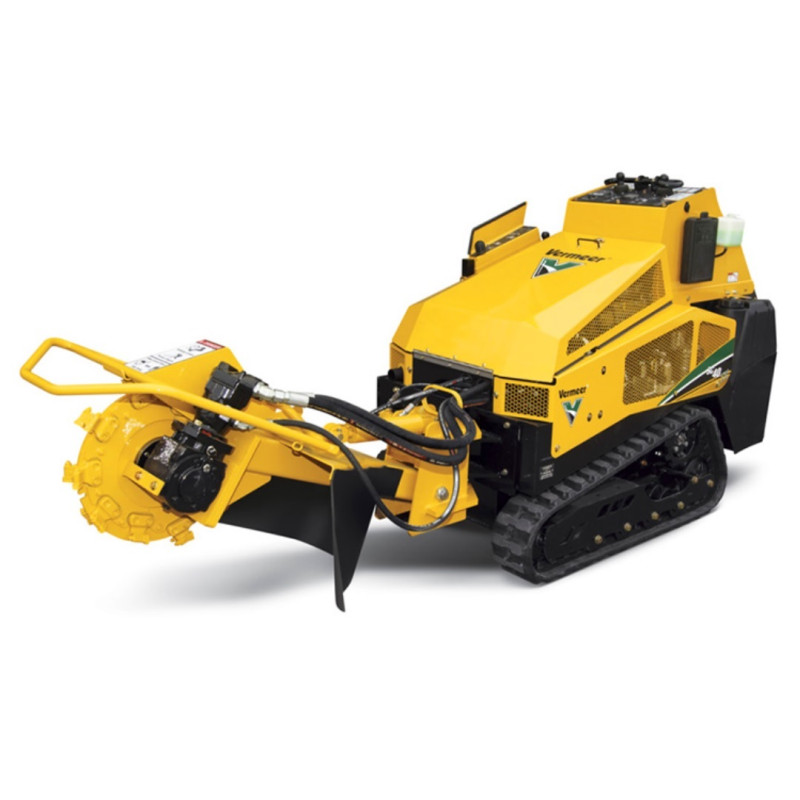

SC40TX STUMP CUTTER
GENERAL
Length: 130" (330.2 cm)
Width: 35.5" (90.2 cm)
Height: 56.5" (143.5 cm)
Weight: 2950 lb (1338.1 kg)
Type: Track self-propelled
Ground speed: Low range 0-177 ft/min (0-54 m/min); high range
0-295 ft/min (0-90 m/min)
Ground pressure: 5.2 psi (35.9 kPa)
ENGINE
Make/Model: Kohler KDI1903TCR Tier 4 Final
Gross horsepower: 40 hp (29.8 kW)
Torque (max): 133 ft-lb (180.3 Nm)
Fuel type: Ultra-low sulfur diesel
Cooling medium: Liquid
CUTTING DIMENSIONS
Cutter wheel straight line dimension: 50" (127 cm)
Cutter wheel cut above ground: 24" (61 cm)
Cutter wheel cut below ground: 16" (40.6 cm)
CUTTER WHEEL
Cutter wheel diameter (without teeth): 18” (45.7 cm)
Cutter wheel thickness: .5” (1.3 cm) with Pow-R™ plates
Tooth style: Yellow Jacket™ cutter system
Number of teeth: 20
Cutter wheel drive type: Hydraulic motor directly mounted to a
90 degree gear box
Chip containment: 3 cu ft (.1 cu m)
Flow control system: SmartSweep control system
CAPACITIES/ELECTRICAL
Fuel tank: 14.5 gal (54.9 L)
Hydraulic tank: 19 gal (71.9 L)
Pump flow at max rpm: 24.5 gpm (92.7 L/min)
Electrical system: 12-Volt. Group 31 950 CCA battery
OPTIONS
Extended warranty
Special paint
Planned maintenance
Confidence Plus® asset protection program
