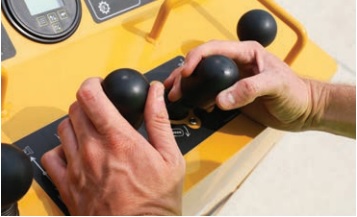

OPERATOR PRESENCE SYSTEM.
This operator system is intended to help protect the
operator. If the operator’s hand(s) leave the cutter
wheel controls for more than one second, the cutter
wheel will disengage, come to a stop and the
cutter wheel indicator light will go out
TRACTIVE EFFORTS. The SC70TX is equipped with an increased ground
drive speed and is designed with a track to help
decrease ground disturbance.

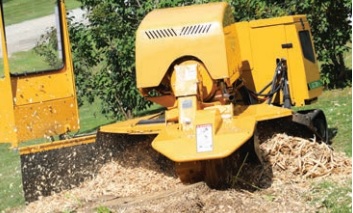

PRODUCTIVE CHIPPING. With a 67 hp (50 kW) Cat C2.2L turbocharged Tier
4 Final/Stage V diesel engine, this machine is ready
for tough cutting jobs.

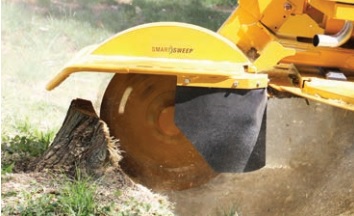

PATENTED SMARTSWEEPTM CONTROL SYSTEM. The patented SmartSweep control system monitors
engine speed and automatically adjusts cutter wheel
sweep rate to maximize power to the cutter wheel
while reducing engine stress.

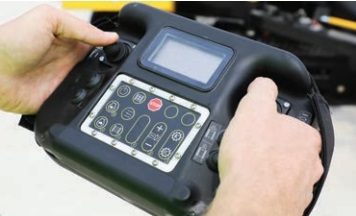

OPTIONAL REMOTE CONTROL. An optional remote control allows operators to
maneuver the stump cutter while away from
the unit.
YELLOW JACKETTM CUTTER SYSTEM. The Vermeer-exclusive Yellow Jacket cutter
system is designed to provide effi cient
serviceability, as well as to help extend pocket
and tooth life.

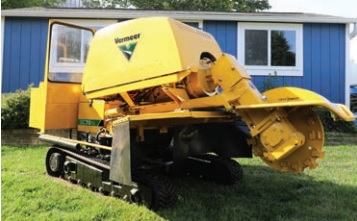

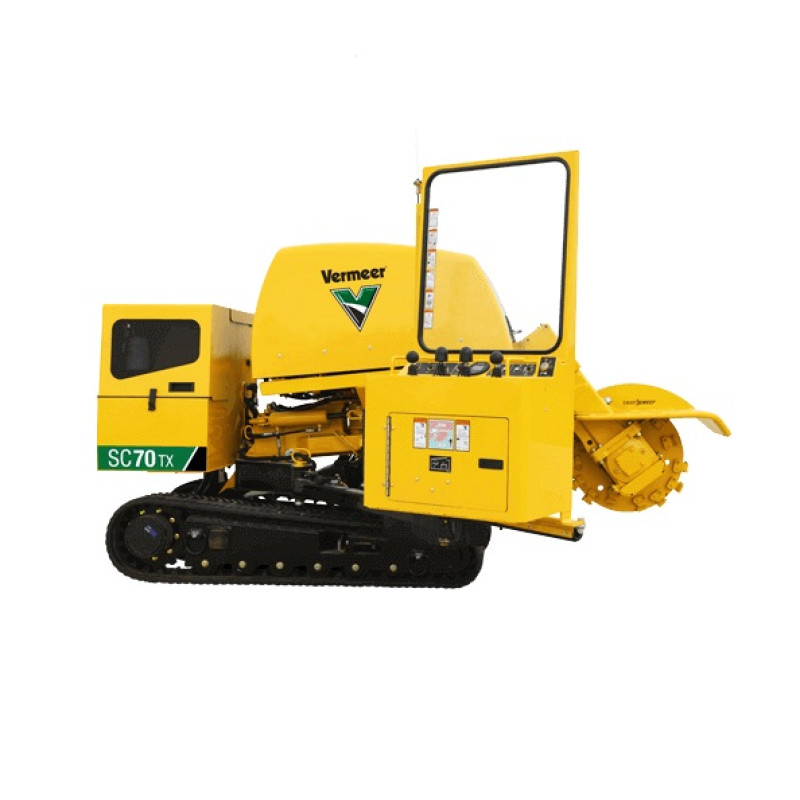

SC70TX STUMP CUTTER
GENERAL
Length: 141.6 in (359.6 cm)
Width: 51 in (129.5 cm)
Height: 72 in (182.8 cm)
Weight: 3900 lbs (1769 kg)
ENGINE
Make and model: Cat C2.2 turbocharged Tier 4 final/Stage V Diesel
Number of cylinders: 4
Max gross horsepower: 67 hp (49.9 kW)
Max torque: 153 ft-lb (207.4 Nm)
Fuel tank capacity: 12 gal (45.4 L)
Max fuel consumption: 3.8 gph (14.4 L/h)
Fuel type: Ultra-low sulfur diesel
Air cleaner: Dry-type, restriction indicator, evacuator valve, safety element
Oil filter: Spin-on
Recommended oil: 10W-30
Oil volume with filter: 8.5 qt (8 L)
Maximum angle of continuous operation: 35
Cooling medium: Water/Antifreeze
Coolant capacity (engine and radiator): 2.9 gal (10.9 L)
Alternator: 85A
Fan: 16.5 in (40.7 cm)
Clutch type: Electric clutch with brake
CUTTER WHEEL SYSTEM
Cutter wheel diameter without teeth: 23 in (58.4 cm)
Cutter wheel thickness: 1.1 in (2.7 cm)
Cutter wheel speed: 948 rpm
Cutter wheel straight line dimension: 65 in (165.1 cm)
Cutter wheel cut above ground: 27 in (68.6 cm)
Cutter wheel cut below ground: 16 in (40.6 cm)
Tooth description: Yellow Jacket cutter system
Number of teeth: 30
Number of indexes: 2
Number of pockets and reversible pockets: 30
Cutter wheel guard: Standard
Chip containment: 23 cu ft (.7 cu m)
CUTTER WHEEL DRIVE COMPONENTS
Upper gearbox: Straight bevel
Oil type: SAE 75W90 synthetic gear oil
Oil capacity: 1.7 qt (1.6 L)
Lower gearbox: Straight bevel
Oil type - lower gearbox: SAE 75W90 synthetic gear oil
Oil capacity - lower gearbox: 2.2 qt (2.1 L)
Driveshaft: 2 universal joints
HYDRAULIC SYSTEM
Tank capacity: 9.6 gal (36.3 L)
Recommended oil type: Vermeer Hypower 68
System type: Tandem gear pump, pressure balanced
Filtration method: Full-flow 4 micron return filter, suction strainer
Max pump flow: 9 gpm (34 L/min)
System relief pressure: 3000 PSI (20,684 kPa)
Flow control: Yes
Directional control: Yes
ELECTRICAL SYSTEM
System voltage: 12
Battery: 950 CCA
Indicator lights: Engine faults
Switches: Boom swing, boom height, creep propel, ignition, clutch, track gauge, track speed range, SmartSweep, throttle
Controller: Vermeer C248 with SmartSweep system
Display: Multifunction display (MFD) Displays: hours, fuel level, engine speed, engine faults and engine status
Shutdown system: High engine temperature and low oil pressure
Radio remote control: Optional, wireless
CHASSIS
Control station description: Swing-out
Operator vision shield description: Abrasion-resistant coated polycarbonate
Track brake type: Spring-applied and hydraulically released dual parking brakes
