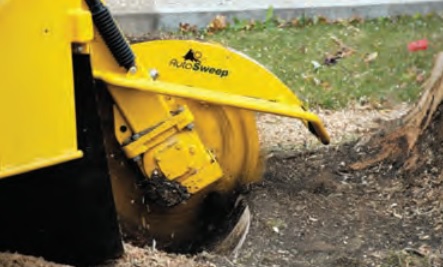

AUTOSWEEP.
The patented AutoSweep® control
system
monitors engine speed and automatically
adjusts
cutter wheel sweep rate to maximize
power to the
cutter wheel while reducing
engine stress.

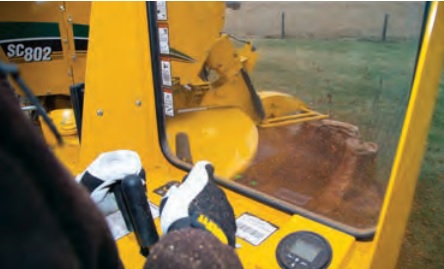

OPERATOR PRESENCE SYSTEM.
This user-friendly operator presence system is
intended to help protect the operator and
enhance
operator safety.

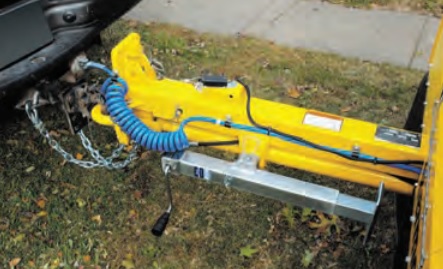

TONGUE LENGTH. A 60" (152.4 cm) tongue
extension helps reduce
the amount of
repositioning needed on a jobsite.

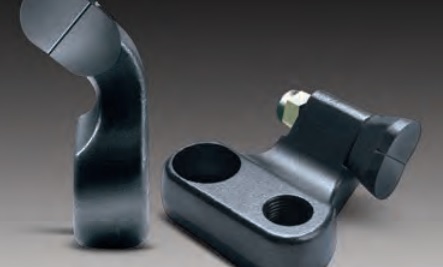

PATENTED YELLOW JACKET™
CUTTER SYSTEM.
The Vermeer-exclusive
Yellow Jacket cutter
system is designed to provide
faster, easier
serviceability, as well as extended
pocket and
tooth life.
SWING ARC. The sweep arc measures 103"
(261.6 cm).
The below-ground cutting depth
of 25" (63.5 cm)
allows operators to cut even
the largest stumps
efficiently. The rear deck
design allows for chip
containment capacity
of approximately 68 cu ft
(1.9 cu/m).
FLOATATION TIRES.This standard feature
allows the weight of the
machine to be
dispersed over a larger area
reducing the
ground disturbance.

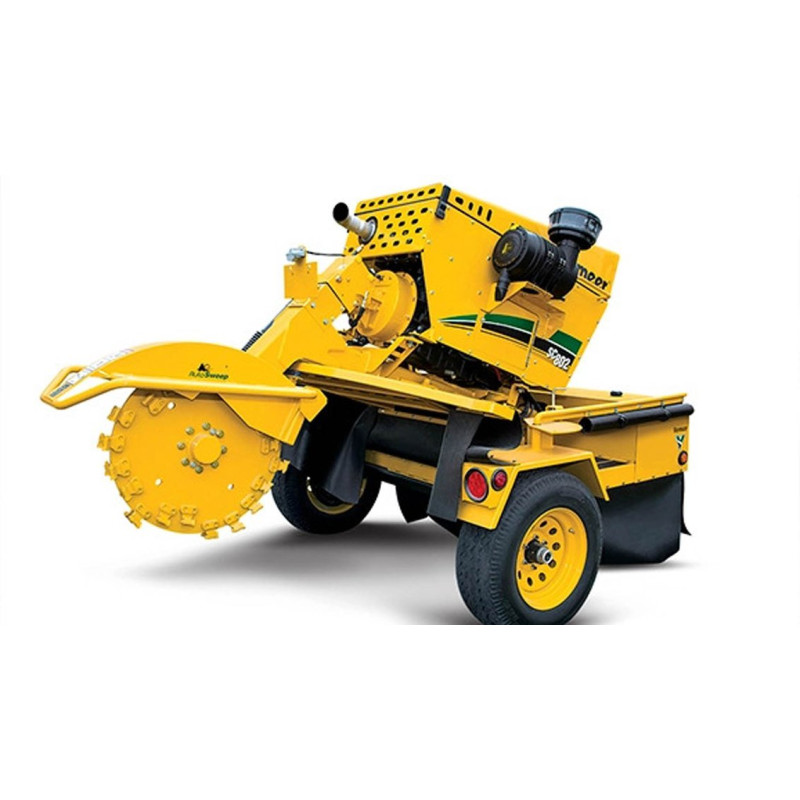

SC802 STUMP CUTTER
GENERAL
Length: 167.3" (424.9 cm)
Width: 79.8" (202.7 cm)
Height: 79" (200.7 cm)
Weight: 4400 lb (1995.8 kg)
Type: Tow-behind
ENGINE
Make/Model: Deutz TD2.9L Tier 4 Final
Gross HP: 74 hp (55.2 kw)
Torque (max): 188 ft-lb (254.9 Nm)
Number of Cylinders: 4
Fuel type: Diesel
Max engine operating angle: 30 deg
CUTTING DIMENSIONS
Cutter wheel straight line dimension: 96" (243.8 cm)
Cutter wheel cut above ground: 35" (88.9 cm)
Cutter wheel cut below ground: 25" (63.5 cm)
Tongue extension: 60" extendable tongue
CUTTER WHEEL
Cutter wheel diameter (without teeth): 28" (71.1 cm)
Cutter wheel thickness: .9" (2.4 cm)
Tooth style: Yellow Jacket™ cutter system
Number of teeth: 42
Cutter wheel drive type: Gearbox driven direct drive system
Chip containment: 68 cu ft (1.9 cu m)
Flow control system: AutoSweep control system
Cutter wheel guard: Standard
CAPACITIES/ELECTRICAL
Fuel tank: 25 gal (94.6 L)
Hydraulic tank: 6 gal (22.7 L)
Pump flow at max rpm: 3.2 gpm (12.1 L/min)
Electrical system: 12 volt
OPTIONS
Extended warranty
Special paint
Planned maintenance
Vermeer Confidence Plus® Asset Protection Program
