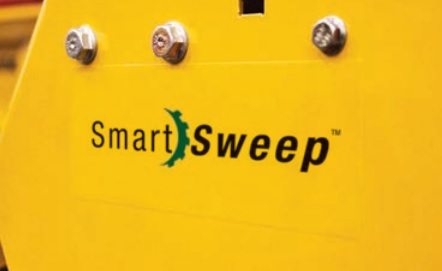

SMARTSWEEPTM CONTROL SYSTEM.
The patented SmartSweepTM control system
monitors
engine speed and automatically adjusts
cutter wheel
sweep rate to maximize power to the
cutter wheel
while reducing engine stress.

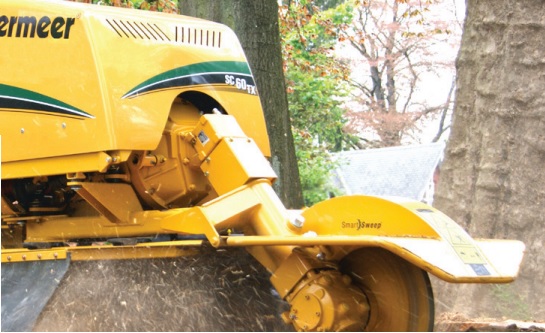

PATENTED GEARBOX-DRIVEN CUTTER
WHEEL SYSTEM.
This system directs the
maximum amount of
horsepower to the cutter
wheel providing a more
efficient drive as
compared to other systems on the
market.
There is no sideload on the engine and unlike
a
belt drive, there are no belts to adjust or align.

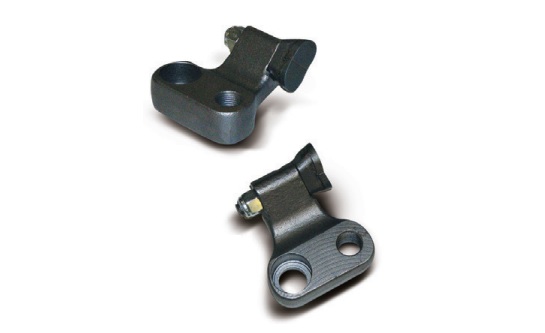

YELLOW JACKETTM CUTTER SYSTEM.
The Vermeer-exclusive Yellow Jacket cutter
system
is designed to provide faster, easier
serviceability,
as well as extended pocket
and tooth life.

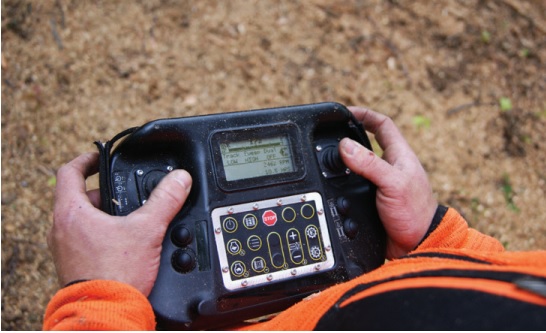

OPTIONAL REMOTE CONTROL. An optional
remote control allows operators to
maneuver the
stump cutter while away from the
unit.
The joysticks help to increase operator
control
and comfort.

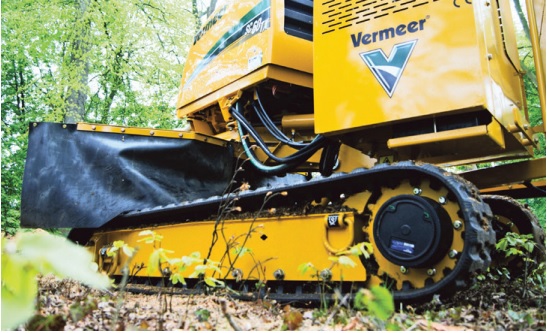

ZERO TURNING RADIUS. The planetary traction
drive helps provide traction
while the
counter-rotating tracks provide tight
maneuvering
in diffi cult jobsite conditions.

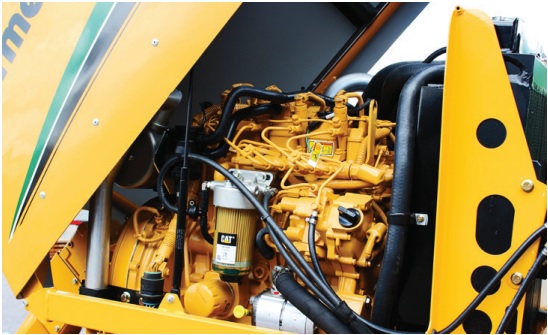

POWERFUL PERFORMANCE. With its
60 hp (44.7 kW) diesel liquid-cooled engine,
the SC60TX packs the power needed for
bold
performance.

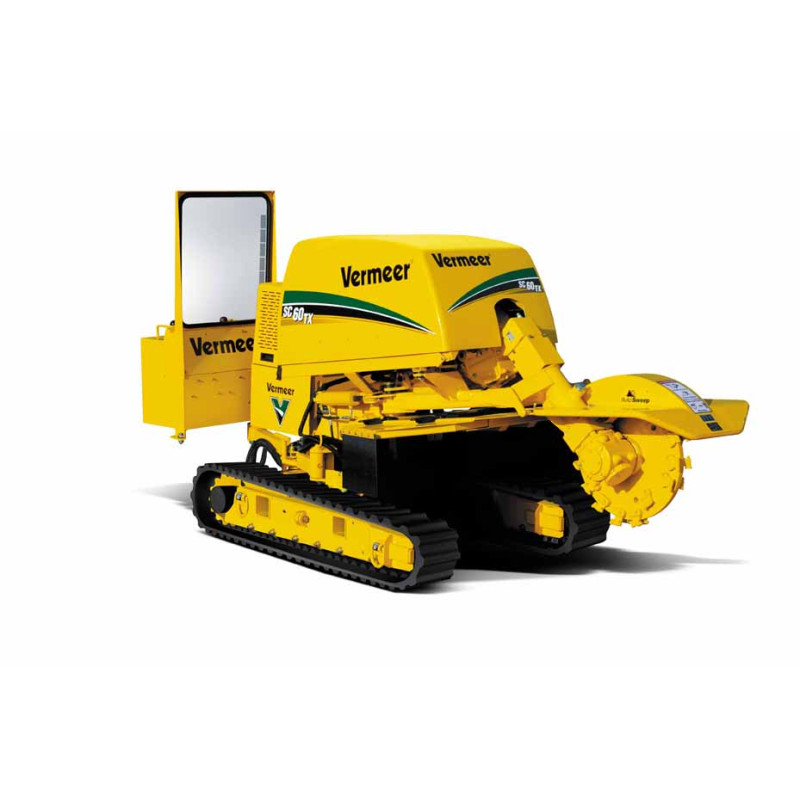

SC60TX STUMP CUTTER
GENERAL
Length: 141.6" (359.7 cm)
Width: 35" (88.9 cm) narrow mode, 51" (129.5 cm) wide mode
Height: 72" (182.9 cm)
Weight: 3800 lb (1723.7 kg)
Type: Track self-propelled
Ground speed: 110 fpm (33.5 m/min)
Ground pressure (soft ground): 4.3 psi (29.6 kPa)
Ground pressure (hard surface): 13.3 psi (91.1 kPa)
ENGINE
Make and model: Cat C2.2L Tier 4 Final/Stage IIIB, turbocharged
Gross horsepower: 60 hp (44.7 kW)
Torque (max): 142 ft-lb (192.5 Nm)
Number of cylinders: 4
Fuel type: Diesel
Cooling medium: Liquid
CUTTING DIMENSIONS
Cutter wheel straight-line: 65" (165.1 cm)
Cutter wheel cut above ground: 27" (68.6 cm)
Cutter wheel cut below ground: 16" (40.6 cm)
CUTTER WHEEL
Cutter wheel diameter (without teeth): 23" (58.4 cm)
Cutter wheel thickness: 1.125" (2.9 cm)
Tooth style: Yellow Jacket cutter system
Number of teeth: 30
Cutter wheel drive type: Patented Vermeer gearbox direct-drive system
Chip containment: 23 cu ft (.7 cu m)
Flow control system: SmartSweep control system
Cutter wheel guard: Standard
CAPACITIES/ELECTRICAL
Fuel tank: 12 gal (45.4 L)
Hydraulic tank: 9.6 gal (36.3 L)
Pump flow at max rpm: 7.2 gpm (27.3 L/min)
Electrical system: 12 volt
OPTIONS
Wireless remote control
Special paint
Extended warranty
Planned maintenance
Vermeer Confidence Plus® asset protection program
