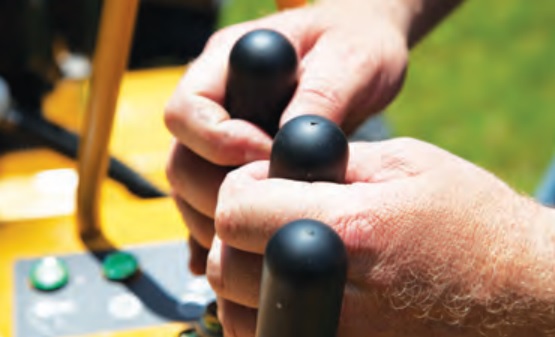

OPERATOR PRESENCE SYSTEM.
Control
handles for the boom swing, boom raise/lower
and machine propel are equipped with an operator
presence handle design which provides
capacitance-sensing capability. This user-friendly
operator presence system is intended to help
protect
the operator and enhance operator safety.

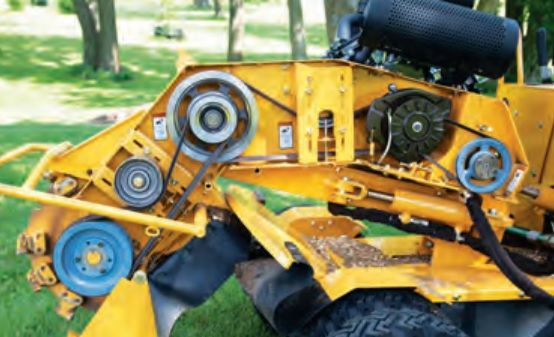

CONVENIENT BELT SERVICING. Belts on
the SC292 are serviceable from one side of
the
machine with cutter drive belts being adjustable
with movable idlers. Additionally, each belt set
may
be adjusted independently, without affecting
adjustment of other belts.
AUTOSWEEP® CONTROL SYSTEM. When
equipped, the AutoSweep system monitors
engine
speed and automatically adjusts cutter
wheel
sweep rate, and is designed to reduce engine,
drivetrain and structural stress.
TWO-SPEED GROUND DRIVE. The operator
may choose to operate in a high-range
or low-range
ground speed setting of 0-133 fpm
(0-40.5 m/min)
to quickly move the machine or
choose a slower
speed when near the stump by
utilizing a low-range
setting of 0-66 fpm
(0-20.1 m/min).

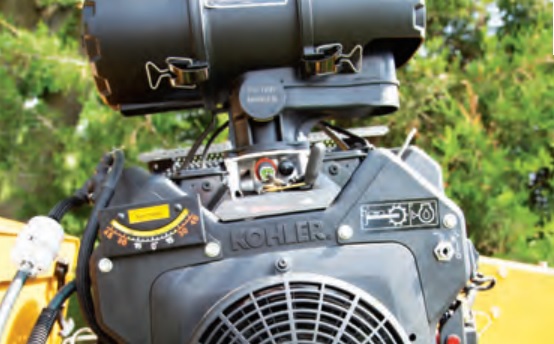

START EASIER. Equipped with a 26.5 hp
(19.8 kW) EFI Kohler
engine, the SC292 performs
well in cold-weather
starts, has reduced
occurrence of engine flooding
and provides
improved fuel economy over
comparable
carbureted gas engines.

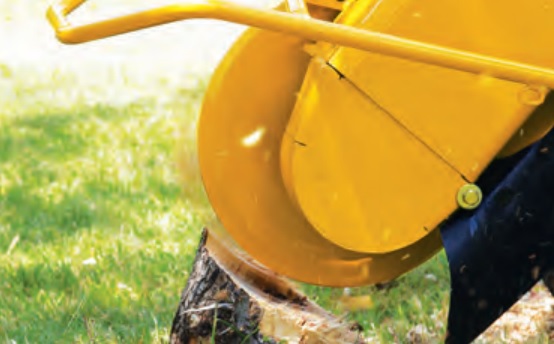

YELLOW JACKET™ CUTTER SYSTEM. The
Vermeer-exclusive Yellow Jacket cutter system
is
designed to provide faster, easier serviceability,
as well as extended pocket and tooth life.
SC292 STUMP CUTTER
GENERAL
Length: 110" (279.4 cm)
Width (with duals): 49.8" (126.5 cm)
Width (without duals): 35" (88.9 cm)
Height: 52" (132.1 cm)
Weight: 1220 lb (553.4 kg)
Weight (alternate): 1280 lb (580.6 kg)
Type: Rubber tire self-propelled
Ground speed: 66 ft/min (20.1 m/min) to 133 ft/min (40.5 m/min)
ENGINE
Make/Model: Kohler Command Pro EFI
Gross HP: 26.5 hp (19.8 kW)
Torque (Max): 44.3 ft-lb (60.1 Nm)
Number of cylinders: 2
Fuel type: Gasoline
Cooling medium: Air
CUTTING DIMENSIONS
Cutter wheel straight line dimension: 47" (119.4 cm)
Cutter wheel cut above ground: 24" (64 cm)
Cutter wheel cut below ground: 15" (38.1 cm)
CUTTER WHEEL
Cutter wheel diameter (without teeth): 17" (43.2 cm)
Cutter wheel thickness: .5" (12.7 mm)
Tooth style: Yellow Jacket cutter system
Number of teeth: 16
Chip containment: 7.7 cu ft (.2 cu m)
Flow control system: AutoSweep®
Cutter wheel guard: Standard
CAPACITIES/ELECTRICAL
Fuel tank: 6 gal (22.7 L)
Hydraulic tank: 4 gal (15.1 L)
Pump flow at max RPM: 3.7 gpm (14 L/min)
Electrical system: 12 V
OPTIONAL
AutoSweep® control system
Two hydraulically controlled steering wheels with pivoting axle
Extended warranty
Special paint
Planned maintenance
Vermeer Confidence Plus® Asset Protection Program
