THREE-SPEED GEARBOX.
Helps improve the
overall drilling effi ciency
by allowing the operator
to adjust the machine’s
rotational torque to match
different ground
conditions.
OPERATOR-CONTROLLED ROD LOADER.
Helps reduce the labor involved with manually
loading and unloading drill rod which also
assists
in increasing overall drilling effi ciency.

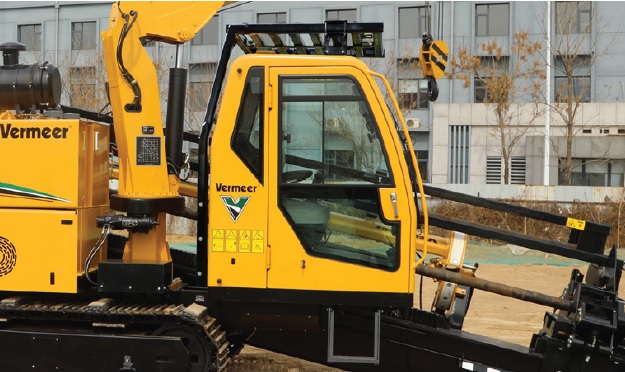

CLIMATE-CONTROLLED CAB. Enhances
operator comfort and provides
protection from
the weather, which reduces
operator fatigue and
discomfort, helping
you be more productive.
COMPACT FOOTPRINT. Well suited for
hard-to-access, narrow
jobsites, while its
self-contained design
lessens the need for
support equipment.

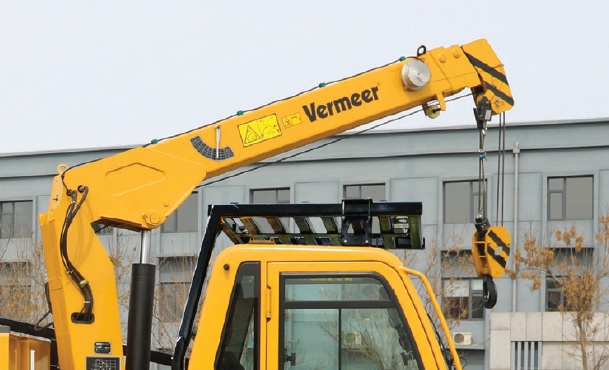

OPTIONAL CRANE. Choose the optional
telescoping crane
to help reduce the amount of
support
equipment needed onsite.
OPTIONAL FRONT-MOUNTED STAKEDOWN
SYSTEM.
Helps reduce the amount of time and
materials needed to set up and secure
the drill for
enhanced jobsite effi ciency.

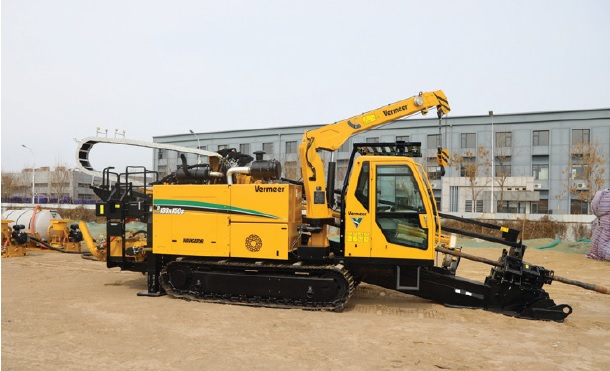

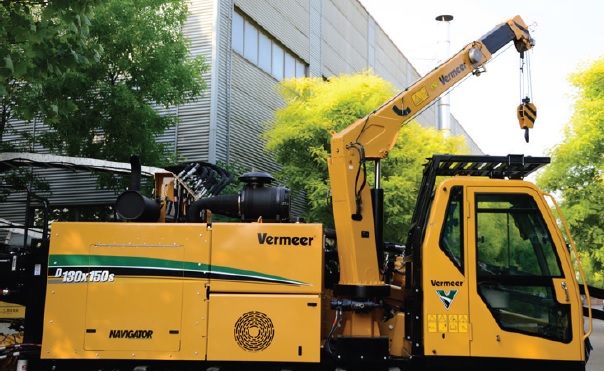

D130x150S NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
Available only through select Vermeer dealers for sale into less emission-regulated countries.
GENERAL WEIGHTS AND DIMENSIONS
Length: 9.92 m (32.5')
Width: 2.49 m (8.2')
Height (basic unit): 3.28 m (10.8')
Weight (basic unit): 20,600 (45,330 lb)
Weight (with drill rod, rod loader): 21,900 (48,300 lb)
ENGINE OPTION ONE - TIER 1
Make and model: Donfeng Cummins 6CTA8.3 - C240
Manufacturer’s rated power: 179 kW (240 hp)
Rated rpm: 2200
ENGINE OPTION TWO - TIER 3
Make and model: Donfeng Cummins QSB6.7 - C260
Manufacturer’s rated power: 193.8 kW (260 hp)
Rated rpm: 2200
OPERATIONAL
Max thrust/pullback in low speed: 59,000 kg (130,000 lb)
Max thrust/pullback in high speed: 24,300 kg (53,600 lb)
Max rotational torque in low speed: 20,337 Nm (15,000 ft-lb)
Max rotational torque in medium speed: 10,210 Nm (7500 ft-lb)
Max rotational torque in high speed: 6807 Nm (5000 ft-lb)
Max rotation speed (low): 45 rpm
Max rotation speed (medium): 65 rpm
Max rotation speed (high): 95 rpm
Max ground drive speed: 6 km/h (3.7 mph)
OPTIONAL CRANE
Max lifting capacity: 3200 kg (7054 lb)
Max lifting capacity at max reach: 700 kg at 6.3 m (1500 lb at 20.7')
Max reach: 6.3 m (20.7')
Rotation: 360 degrees
DRILL PIPE
Type: V-Rod®
Length: 6.1 m (20')
Diameter: 8.9 cm (3.5")
Max entry angle: 20 degrees
DRILLING FLUID SYSTEM
Max pressure: 83 bar (1200 psi)
Max flow: 757 L/min (200 gpm)
FLUID CAPACITIES
Hydraulic tank: 416 L (110 gal)
Fuel tank: 284 L (75 gal)
FEATURES
Breakout system (vise): Standard
Drilling lights: Standard
Rod loader: Standard
Stakedown system: Optional
Electric Strike Alert: Standard
Remote Lockout: Standard
Mud flow status: Standard
Cab: Standard
