COMPACT FOOTPRINT.
The compact footprint of
the D220x300 S3 is
suited for hard-to-access, narrow
jobsites, while
its self-contained design lessens the
need for
cumbersome support equipment.
VISE. The sliding vise moves 35.4" (89.9 cm)
to help
operators position the vise for maximum
efficiency
when reaming or pulling product.
COMMON CONTROLS. The D220x300 S3
shares common controls with
other drills in the
Navigator lineup, which can
decrease operator
training time and allow faster
startups.
KNUCKLEBOOM CRANE. The optional
knuckleboom crane mounted on
either side of the
base anchor maneuvers
heavy tooling, reducing the
need for support
equipment.
POWER-TO-SIZE RATIO. The power-to-size
ratio allows for twice the
pullback and rotation of
similarly sized drills
for versatile applications.

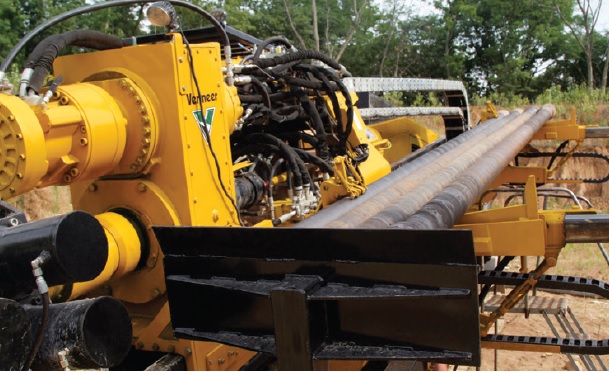

ROD LOADER. A single row, sliding arm rod
loader allows
for the staging of fi ve rods at one
time,
increasing boring effi ciency by minimizing
rod loading time.
D220x300 S3
NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL DIMENSIONS AND WEIGHTS
Min transport length: 37' (11.3 m)
Min transport width: 100" (254 cm)
Min transport height: 11.3' (3.4 m)
Weight: 74,000 lb (33,565.84 kg)
ENGINE
Make/Model: CAT C13 ACERT Tier 4 Final
Fuel type: Ultra-low sulfur diesel
Max engine rpm: 2150 rpm
Gross horsepower: 415 hp (309 kW)
Cooling method: Liquid
Aspiration: Turbocharged and after-cooled
Emissions rating: Tier 4 Final (EU Stage IV)
OPERATIONAL
Thrust/Pullback: 242,100 lb (1076.9 kN)
Max carriage speed at max engine rpm: 120 fpm (36.6 m/min)
Max spindle torque (low at max engine rpm): 30,750 ft-lb (41,691.4 Nm)
Max spindle speed at max engine rpm: 164 rpm
Max ground drive speed at max engine rpm: 1.8 mph (2.9 km/h)
Noise level at operator’s ear: 85 dB(A)
Drill rack angle: 10°-17° (17.6%-30.6%)
FLUID CAPACITIES
Fuel tank: 134 gal (507.2 L)
Hydraulic tank: 166 gal (628.4 L)
DRILLING FLUID SYSTEM
Make: Weatherford
Max flow: 345 gpm (1306 L/min)
Max pressure: 1200 psi (8.3 MPa) at 213 gpm (806.3 L/min)
OPTIONAL CRANE
Weight: 2600 lb (1179.3 kg)
Max reach: 26.3' (8 m)
Max lifting capacity: 5950 lb (2698.9 kg)
Max lifting capacity at max reach: 2530 lb (1147.6 kg)
Rotation: 400°
Wireless remote: Yes
FEATURES
Breakout system: Open-top, dual clamp, 10.2" (25.9 cm) diameter opening
Drilling lights: Yes
Flow indicator: Yes
Cab: Yes
Strike alert: Yes
Remote lockout: Yes
DRILL PIPE
Thread type: NC50 DS [4.5" (11.4 cm) IF double shoulder]
Length: 20' (6.1 m)
Rod diameter: 5" (12.7 cm) at 19.5 lb/ft (29 kg/m)
Wall thickness: .362" (9.2 mm)
Joint inside diameter: 3.5" (8.9 cm)
Joint outside diameter: 6.63" (16.8 cm)
Weight per joint: 540 lb (244.9 kg)
