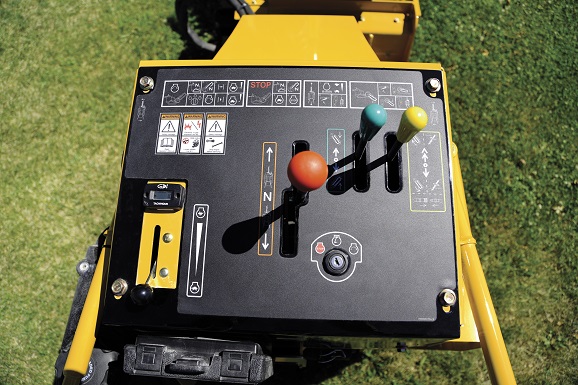

ENHANCED VZ STEERING. Operators can
steer the machine using only the
handlebars —
rather than traditional
methods of using levers
or steering
wheels. These bars also provide
additional leverage when operating
on difficult
or uneven terrains

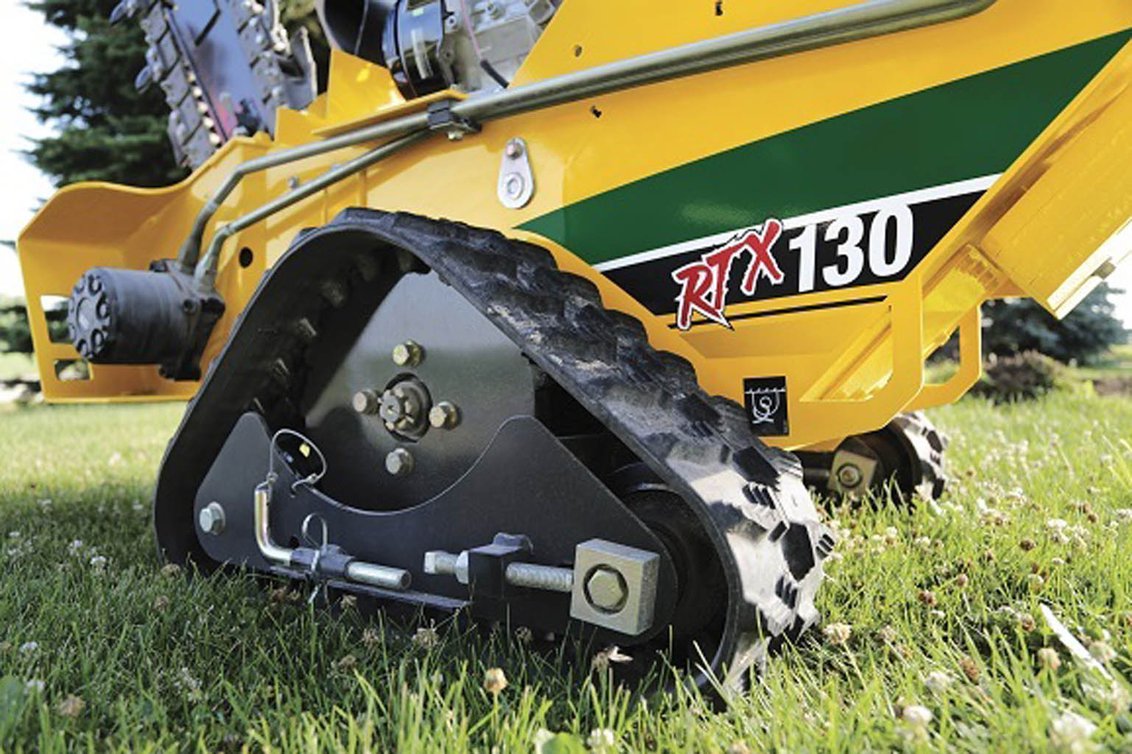

MASTER YOUR TERRAIN. Option of tracks or
tires helps you attain
maximum performance and
productivity despite varying surface
conditions.

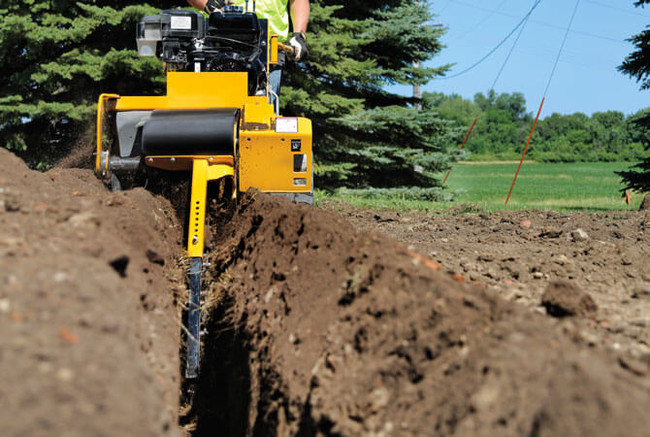

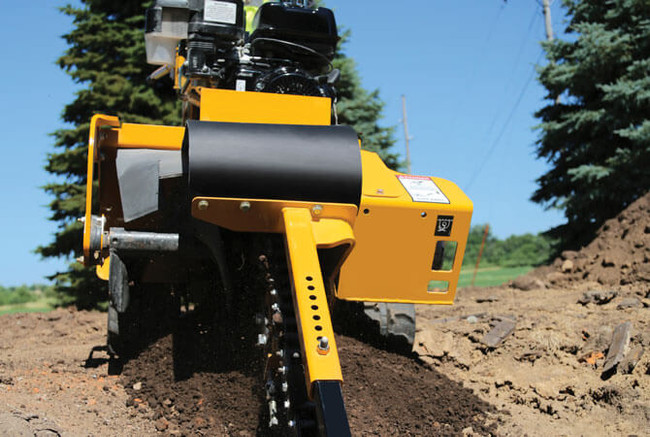

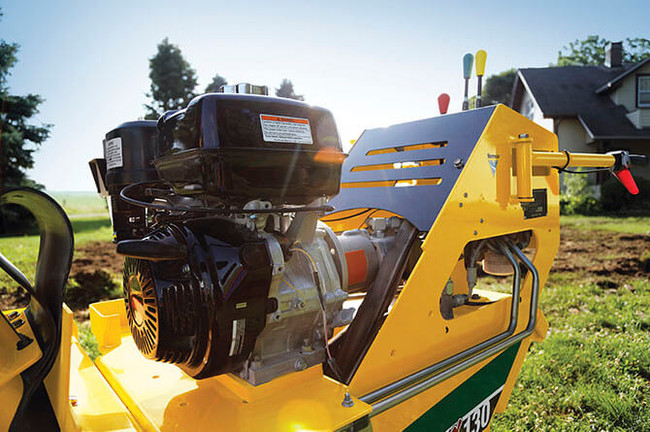

HIGH-TORQUE DIGGING. The RTX130 is
equipped with an 13 hp (10 kW)
Honda engine for
optimal power on
your jobsite.
.jpg)
SLENDER PROFILE. A 35" (88.9 cm) width allows the RTX130 to access small spaces
—
including passing through typical
backyard gates.
EASE OF MAINTENANCE. The hydraulic hoses
and hard-line design provide
convenient service
and maintenance.

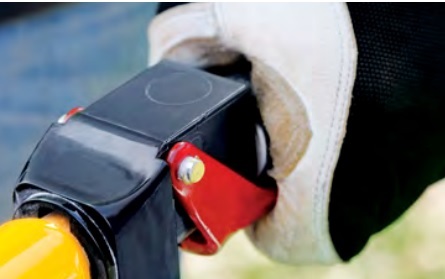

OPERATOR PRESENCE SYSTEM. Promotes on-the-job safety that disengages the
trencher and
ground drives if the operator
leaves the controls, in
addition to a
trenching cleat that restricts
backward
motion.

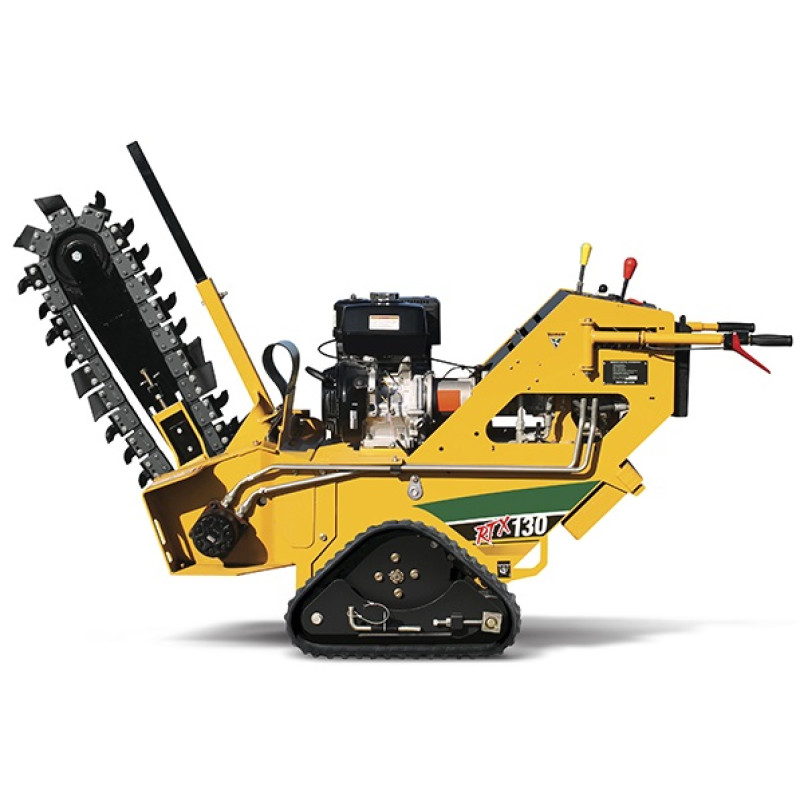

RTX130 PEDESTRIAN TRENCHER
GENERAL WEIGHTS AND DIMENSIONS
Weight (basic tractor with tracks): 1140 lb (517.1 kg)
Weight (basic tractor with tires): 880 lb (399.2 kg)
Length (basic tractor with tracks): 73" (185.4 cm)
Length (basic tractor with tires): 83" (210.8 cm)
Width: 35" (88.9 cm)
Height: 46" (116.8 cm)
Wheel base: 33.2" (84.3 cm)
Tread width (with tires): 8.5" (21.6 cm)
TRENCHER
Digging depth: 36" (91.4 cm)
Cutting width: 4" – 6" (10.2 cm – 15.2 cm)
Auger diameter: 16" (40.6 cm)
Min transport length: 89" (226 cm)
ENGINE
Make/Model: Honda GX390
Gross horsepower: 13 hp (10 kW)
Displacement: 23.7 cu-in (0.4 L)
Fuel type: Gasoline
Fuel tank capacity: 1.6 gal (6.1 L)
Cooling medium: Forced air
Max operating angle (fore/aft)*: 20°
Max operating angle (left/right)*: 20°
Number of cylinders: 1
Aspiration: Natural
Engine oil capacity: .3 gal (1.1 L)
*Engine operating angles do not indicate safe machine operating angles.
HYDRAULIC SYSTEM
Hydraulic tank capacity: 10.75 gal (40.7 L)
Hydraulic system capacity: 11.25 gal (42.6 L)
Attachment pump flow at max engine rpm: 8 gpm (30.3 L/min)
Ground drive flow at max engine rpm: 5.4 gpm (20.4 L/min)
GROUND DRIVE
Ground drive type: Hydrostatic
Max forward transport speed at full throttle: 3.1 mph (5.0 km/h)
Max reverse transport speed at full throttle: 1 mph (1.6 km/h)
OPTIONS
Backfill blade
Trench cleaner (crumber)
Electric start engine
Greaseless end idler
Special paint
Extended warranty
Planned maintenance
Vermeer Confidence Plus® asset protection program
