SMARTTEC ELECTRONIC CONTROL SYSTEM.
SmartTEC performance software helps optimize
productivity with real-time machine control
prompts. Monitor and record functions encourage
proactive machine maintenance and operator
performance analysis. Available on all
Vermeer
TEC® Plus computer-aided control
system-equipped machines.
ELEVATING ROPM CAB. The elevating rollover
protective module cab
features LEXAN glass,
filtered and pressurized
air, heating and
air-conditioning. The cab’s
vantage point allows
a virtually unrestricted
view of the boom, trench
and conveyor.
OPTIONAL AUTO TILT TRACK. An oscillating
track frame allows the track to
follow the ground’s
contour ensuring a vertical
trench on slopes up to
10 degrees.
VANTAGE TRACK. Relax in the confidence
that your investment
is protected and your entire
closed-loop
hydrostatic system is covered with
either a
3-year/3000-hour or 5-year/5000-hour
extended care service program.
ROTARY POWER TRENCHER DRIVE MOTOR.
A rotary power trencher drive motor and
splined
headshaft produce low-speed and
high torque
which provide superior ground
penetration and
low chain wear for better
production results.
FULL FUNCTION REMOTE CONTROL.
The T755 Commander® 3 is available with
a wireless remote control that can provide
full operator function remotely

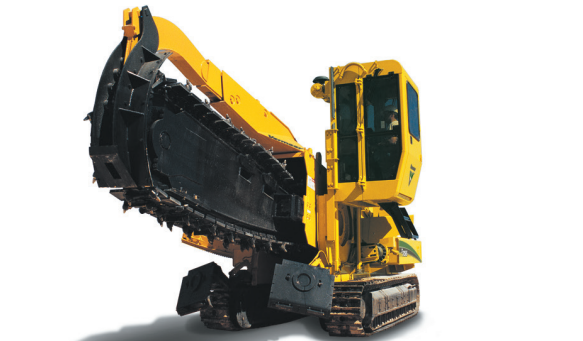

T755III TRENCHER
GENERAL DIMENSIONS
Approach angle: 22°
Height: 10' (3 m)
Length range: 28' – 33.6' (8.5 m – 10.2 m)
Weight range (tractor plus trencher attachment): 49,000 lb –
75,000 lb (22,226 kg – 34,019.4 kg)
Width range: 8.2' – 8.5' (2.5 m – 2.6 m)
ENGINE OPTION ONE
Make and model: Caterpillar C9 ACERT
Gross horsepower: 275 hp (205 kW)
Engine rpm: 2200
Fuel consumption @ full load: 14.7 gph (55.6 L/hr)
EPA certification family: Tier 3
ENGINE OPTION TWO
Make and model: John Deere 6090H
Gross horsepower: 275 hp (205 kW)
Engine rpm: 2200
Fuel consumption @ full load: 13.2 gph (50 L/hr)
EPA certification family: Tier 4 Final (Stage IV)
TRACKS
Ground pressure: 8.9 psi – 12.5 psi (61.4 kPa – 86.2 kPa)
Tilt track with Auto Level available: Yes, max angle 12°
Track length: 11.8' (3.6 m)
Track pad type: Single, double, triple or polyurethane grouser
Track pad width: 20" (50.8 cm) or 24" (60.9 cm)
Track size: D5
Travel speed max: 170 fpm (51.8 m/min)
Service brakes: Hydrostatic
CONVEYOR
Belt width: 24" (61 cm)
Max conveyor belt speed: 1118 fpm (340.8 m/min)
Conveyor belt style: Cleated or finger-type
Conveyor length: 8' or 12' (2.4 m or 3.7 m)
Conveyor shift available: Yes
Conveyor shift distance: 14" or 66" (35.6 cm or 167.6 cm)
Conveyor style: Curved
Discharge direction: Right or left
Discharge height: 55" or 68" (139.7 cm or 172.7 cm)
CAB
Air conditioner/heater: Yes
Air suspension seat: No
AM/FM stereo with weather band: Yes
Elevating: Yes
Pressurized/filtered air: Yes
Rollover protective module (ROPM): Yes
Level II FOPS: Yes
TRENCHER ATTACHMENT
Boom depth options: 5', 6', 8' or 10' (1.5 m, 1.8 m, 2.4 m or 3 m)
Boom top rollers: Optional
Chain speed range: 397 fpm – 724 fpm (121 m/min – 220.7 m/min)
Cutting width range: 14" – 36" (35.6 cm – 91.4 cm)
End idler diameter: 40" (101.6 cm)
OPTIONS
Loadout conveyor
Remote control
