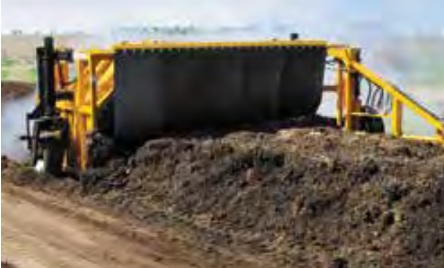

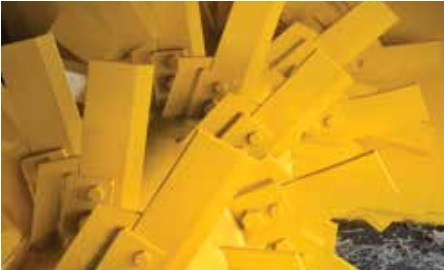

AGGRESSIVE FLAILS.
The aggressive Vermeer
flails ensure aeration
and mixing. When properly
aerated, the
composting cycle is considerably
shortened and
site throughput is increased.

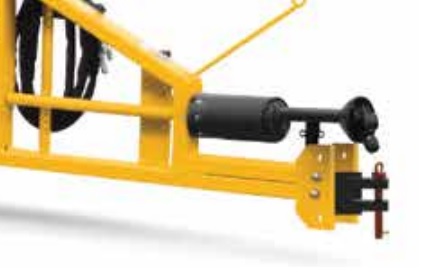

CONVENIENT TOWING. An optional low-speed
transport kit makes
converting between work
and transport modes
quicker and easier using
tow-tractor hydraulics
and simple hand tools.
HEAVY-DUTY FRAME. Constructed of four
members of 4" x 3" x 3/16"
(10.2 cm x 7.6 cm
x .5 cm) structural steel tubing
and steel plate.
Heavy-duty frame adds rigidity to
the unit to help
prolong the life of bearings and
drum shafts.
CONTAINMENT CURTAINS. Rubber containment
curtains draped over the
front and back help keep
material in the windrow,
reducing the quantity and
distance of thrown
objects.

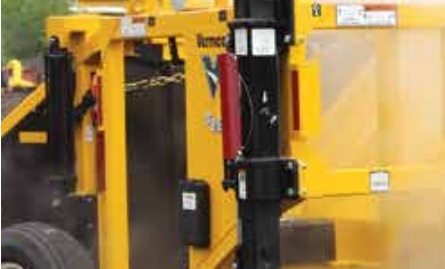

PRECISE CONTROL. Equipped with
independently controlled lift
cylinders for thorough
aeration of the compost
pile.
EASE OF MAINTENANCE. All grease points are
accessible from ground level.

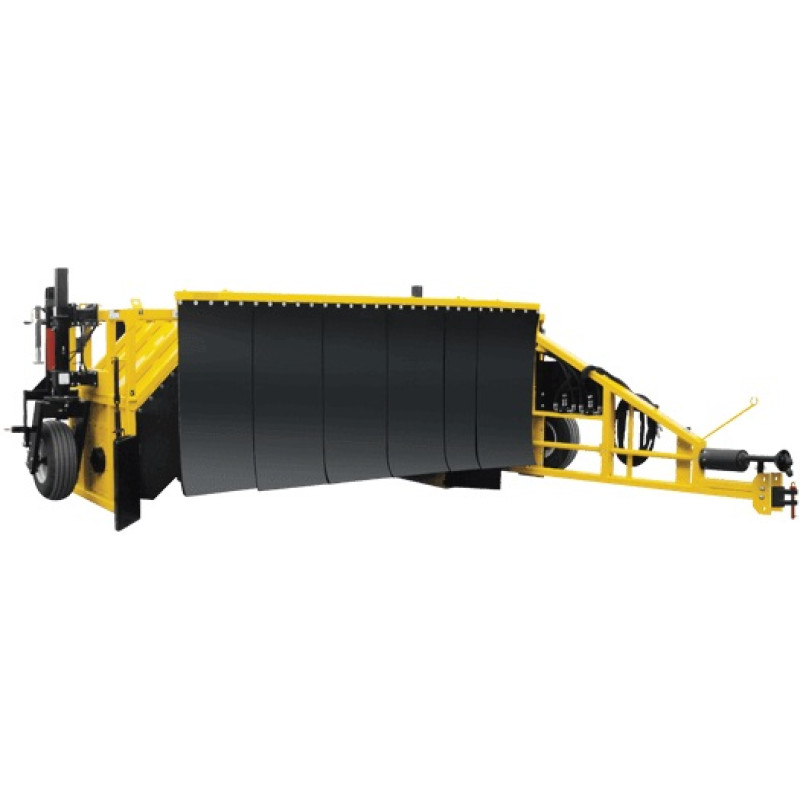

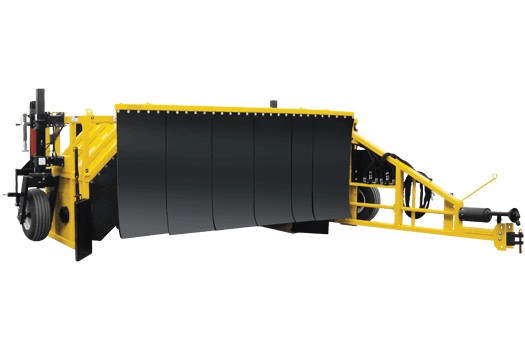

CT612 COMPOST TURNER
GENERAL DIMENSIONS
Max operational width: 19.4' (5.9 m)
Max operational height: 7.7' (2.4 m)
Weight: 8780 lb (3982.5 kg)
Tongue weight: 3360 lb (1524.1 kg)
Capacity: 1500 tons/hr (1361 metric tons/hr dependent upon
tractor hp)
FRAME
Mainframe: Four cross frames constructed
of 4" x 3" x 3/16"
(10.2 cm x 7.6 cm x .5 cm) tubing
Hitch frame: 6" x 3" x .25" (15.2 cm x 7.6 cm x .6 cm) tube
Sheet metal: 7 gauge
GROUND DRIVE
Tire size: 12.5 L – 16 14-ply tubeless
Rim size: 10" x 16" (25.4 cm x 40.6 cm) – 8-bolt
Wheel lift cylinders: 2 – 3.5" (8.9 cm) bore x 16" (40.6 cm)
stroke; 1 – 3.5" (8.9 cm) bore x 20" (50.8 cm) stroke
Max speed: 20 mph (32.2 km/h)
PROCESSING TUNNEL
Windrow width: 12' (3.7 m)
Windrow height: 6' (1.8 m)
DRUM
Drum diameter (including flails): 35" (88.9 cm)
Length of drum: 142.8" (362.7 cm)
Number of flails: 68
Flail dimensions: .5" x 4" x 12" (1.3 cm x 10.2 cm x 30.5 cm)
DRIVELINE
PTO shaft: Weasler-rated 217 hp (161 kW) at 1000 rpm
Right angle gearbox: 1000 rpm [175 hp (131 kW) max]
Shaft coupler: 80 – 2 roller chain coupler
Driveline bearings: 1 – 15/16" (2.4 cm) ball bearing
