WHEN THERE’S A JOB TO BE DONE.
With
28,000 lb (124.6 kN) of thrust/pullback and
4200
ft-lb (5694.4 Nm) of rotational torque,
the D24x40 S3
offers an increase over its
predecessor, helping to
maximize machine and
jobsite productivity.
TOP OF ITS CLASS. With a class-leading carriage
speed of 240 fpm
(73.2 m/min) – more than 20%
faster than its closest
competitor – the D24x40 S3
helps contractors install
more linear feet per day.

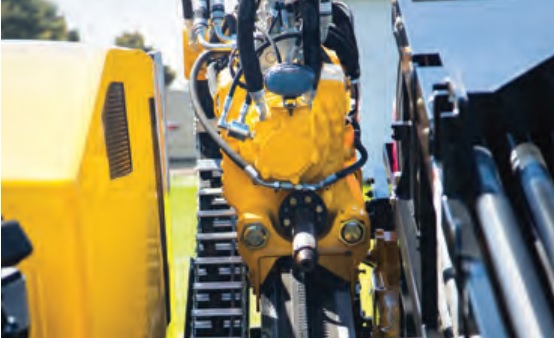

INSTALL PRODUCT FASTER. The D24x40 S3
features a 270 rpm rotational speed
that rivals larger
drills and outpaces competitive
models by
18% – helping contractors complete
jobs faster.
SIGNIFICANT SOUND REDUCTION. With a
104 dB(A) guaranteed sound power level
and an
operator ear rating of 82.9 dB(A), as well
as an
in-cab operator ear rating of 75.7 dB(A), the
D24x40 S3 contributes to a quieter working
environment,
creating less neighborhood
disturbance and enabling
easier communication
among the crew.

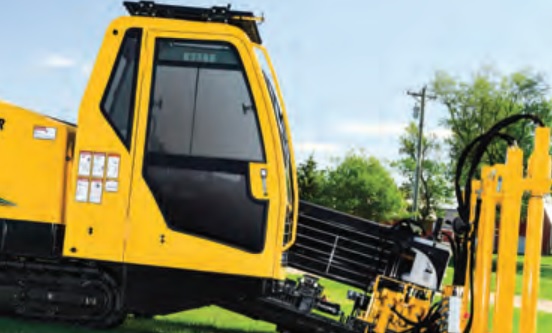

COMFORTABLE CAB. The excavator-style cab
offers operators
more legroom and greater comfort.

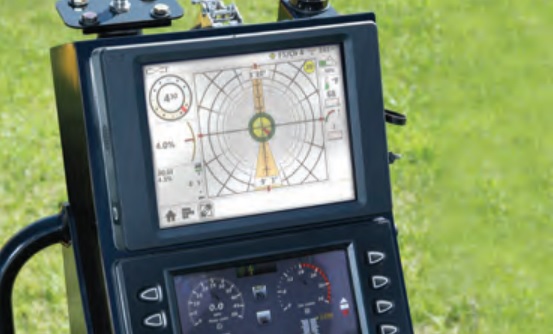

AURORA™ TOUCHSCREEN DISPLAY.
Interactive full-color touchscreen display delivers
real-time, easy-to-view locate information, bore
plans
and more that can help increase productivity.

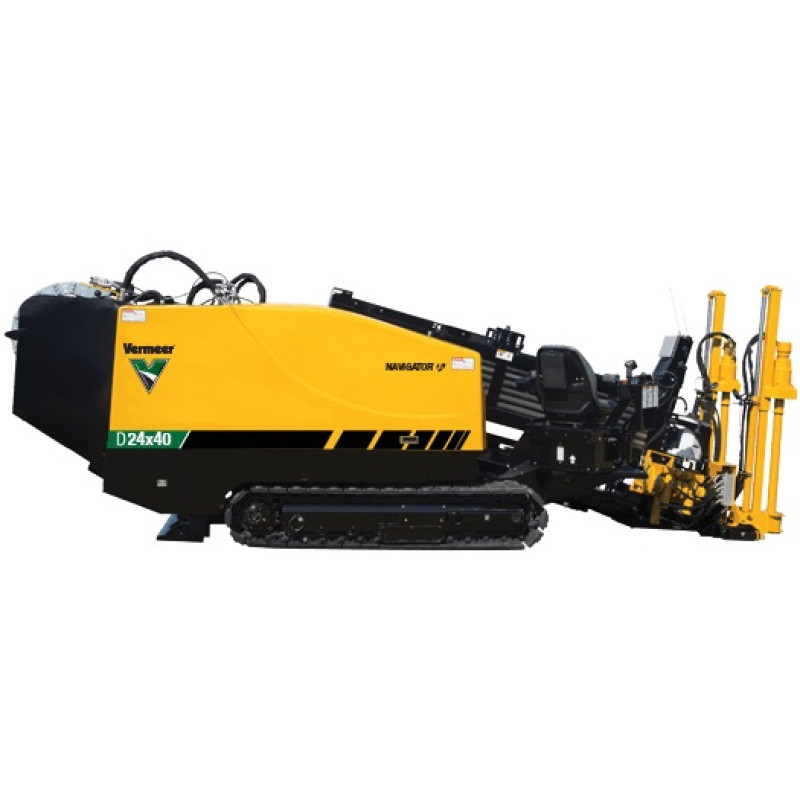

D24x40 S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 20.1' (6.1 m)
Min transport width: 89" (226.1 cm)
Min transport height: 76" (193 cm)
Height (with cab): 102" (259.1 cm)
Min weight: 20,700 lb (9389.3 kg)
Max weight: 22,250 lb (10,092.4 kg)
ENGINE OPTION ONE
Make and model: John Deere 4045
Fuel type: Ultra low sulfur diesel
Max engine rpm: 2400 rpm
Gross horsepower: 125 hp (93 kW)
Displacement: 275 cu in (4.5 L)
Cooling method: Liquid
Aspiration: Turbo
Emissions rating: Tier 4 Final (EU Stage IV)
ENGINE OPTION TWO
Make and model: John Deere 4045
Fuel type: Diesel
Max engine rpm: 2400 rpm
Gross horsepower: 125 hp (93 kW)
Displacement: 275 cu in (4.5 L)
Cooling method: Liquid
Aspiration: Turbo
Emissions rating: Tier 3 (EU Stage IIIA)
OPERATIONAL
Thrust/Pullback: 28,000 lb (124.6 kN)
Max carriage speed at max engine rpm: 240 fpm (73.2 m/min)
Max spindle torque (low at max engine rpm): 4200 ft-lb (5694.4 Nm)
Max spindle speed at max engine rpm: 270 rpm
Min bore diameter: 4" (10.2 cm)
Max ground drive speed at max engine rpm (fwd): 3.3 mph (5.3 km/h)
Noise level at operator’s ear: 82.9 dB(A)
Noise level at operator’s ear (cab): 75.7 dB(A)
Drill rack angle: 14-21° (24.9–38.4%)
FLUID CAPACITIES
Fuel tank: 44 gal (166.6 L)
Antifreeze tank capacity: 3.9 gal (14.7 L)
DRILLING FLUID SYSTEM
Max flow: 50 gpm (189.3 L/min)
Max pressure: 1050 psi (7.2 MPa)
FEATURES

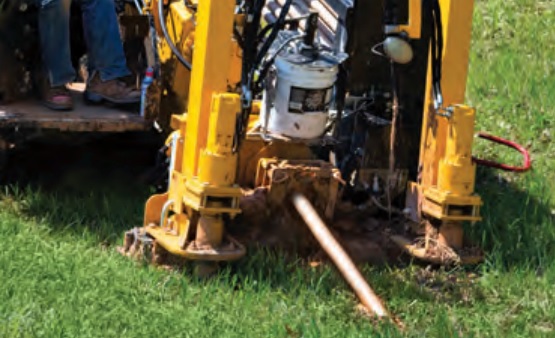

Breakout system: Standard hydraulic vise
Drilling lights: Standard
Flow indicator: Standard

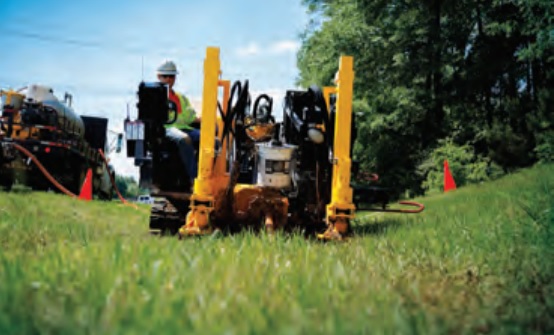

Stakedown system: Standard
Cab: Optional
Strike alert: Standard
Remote lockout: Standard

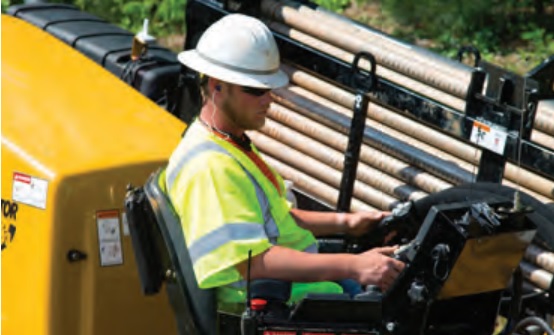

DRILL PIPE
Type: Firestick® drill rod
Length: 10' (3 m)
Rod diameter: 2.38" (6 cm)
Weight: 73 lb (33.1 kg)
Bend radius: 108.2' (33 m)
