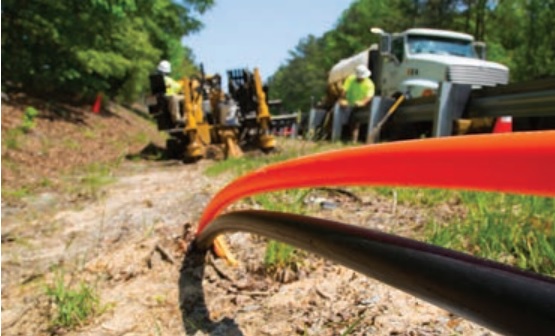

PREMIUM PERFORMANCE.
With 40,000 lb
(177.9 kN) of thrust/pullback and 5500
ft-lb
(7457 Nm) of rotational torque, the D40x55 S3
offers a 10% increase in thrust and rotation over
its
predecessor, the D36x50 Series II – helping to
maximize productivity.

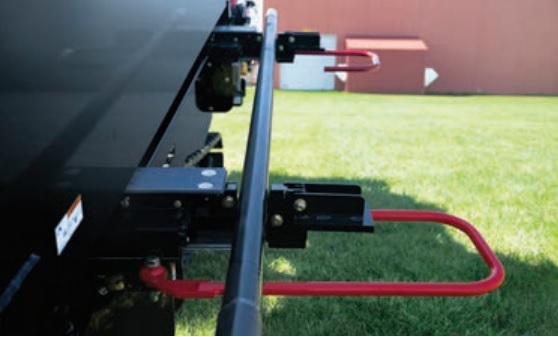

VARIETY OF ROD OPTIONS. The D40x55 S3 is
available with a range of drill rod
options, including
a 10' (3 m) length in 2.38" (6 cm)
or a 2.63"
(6.7 cm) diameter, and a 15' (4.6 m) length
in a
2.63" (6.7 cm) diameter. A variety of rod options
allows the drill to be configured to the specific
needs of the contractor.
CLASS-LEADING CYCLE TIMES. The D40x55 S3
features a carriage speed of 188 fpm
(57.3 m/min) –
which is 7% faster than its predecessor,
the D36x50
Series II – helping contractors install
more linear feet
per day

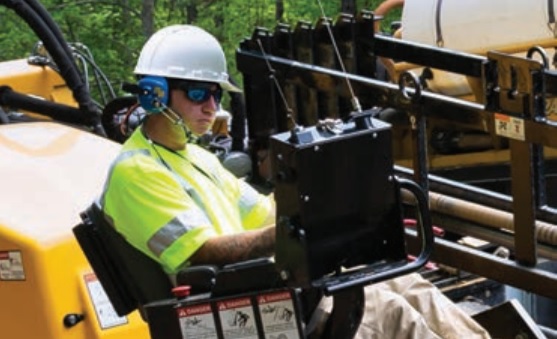

SIGNIFICANT SOUND REDUCTION. With a
104 dB(A) guaranteed sound power level and an
operator ear rating of 82.9 dB(A) [in-cab rating of
75.7 dB(A)],
the D40x55 S3 is signifi cantly quieter
than its predecessor
– contributing to a quieter
working environment with less
neighborhood
disturbance and easier communication
among
the crew.

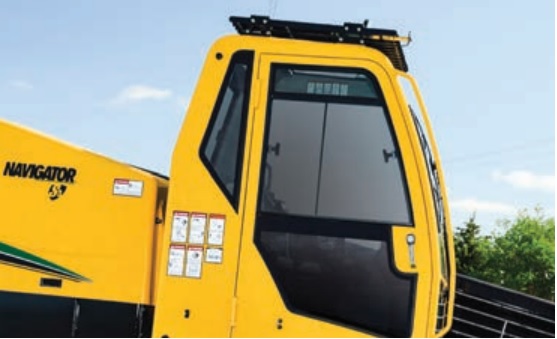

COMFORTABLE CAB. The excavator-style
cab provides operators more
legroom and
greater comfort.

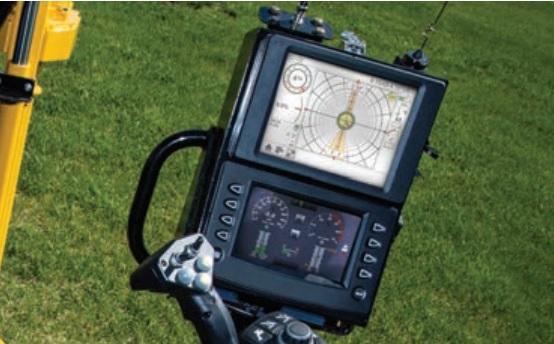

AURORA™ TOUCHSCREEN DISPLAY. Interactive
full-color touchscreen display delivers
real-time,
easy-to-view locate information, bore plans and
more that can help increase productivity.

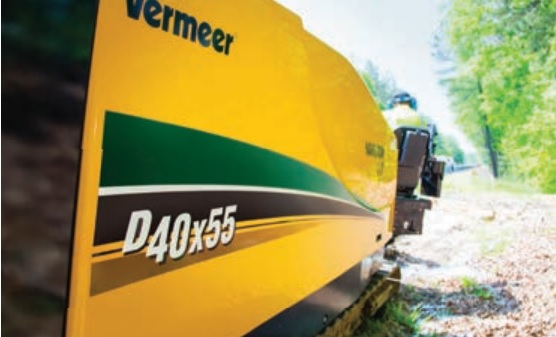

D40x55 S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 20.1' (6.1 m)
Min transport width: 89" (226.1 cm)
Min transport height: 76" (193 cm)
Height (with cab): 92" (233.7 cm)
Min weight: 22,380 lb (10,151.4 kg)
Max weight: 26,110 lb (11,843.3 kg)
ENGINE OPTION ONE
Make and model: John Deere 4045
Fuel type: Ultra low sulfur diesel
Max engine rpm: 2400 rpm
Gross horsepower: 140 hp (104 kW)
Emissions rating: Tier 4 Final (EU Stage IV)
ENGINE OPTION TWO
Make and model: John Deere 4045
Fuel type: Diesel
Max engine rpm: 2400 rpm
Gross horsepower: 140 hp (104 kW)
Emissions rating: Tier 3 (EU Stage IIIA)
PERATIONAL
Thrust/Pullback: 40,000 lb (177.9 kN)
Max carriage speed at max engine rpm: 188 ft/min (57.3 m/min)
Max spindle torque (low at max engine rpm): 5500 ft-lb (7457 Nm)
Max spindle speed at max engine rpm: 227 rpm
Min bore diameter: 4" (10.2 cm)
Max ground drive speed at max engine rpm (fwd): 3.3 mph
(5.3 km/h)
Noise level at operator’s ear: 82.9 dB(A)
Noise level at operator’s ear (cab) : 75.7 dB(A)
Drill rack angle [10' (3 m) rod]: 15.5-20.5° (27.7-37.4%)
Drill rack angle [15' (4.6 m) rod]: 12.5-17.5° (22.2-31.5%)
FLUID CAPACITIES
Fuel tank: 44 gal (166.6 L)
Antifreeze tank capacity: 1.6 gal (6 L)
DRILLING FLUID SYSTEM OPTION ONE
Max flow: 50 gpm (189.3 L/min)
Max pressure: 1050 psi (7.2 MPa)
DRILLING FLUID SYSTEM OPTION TWO
Max flow: 70 gpm (265 L/min)
Max pressure: 1100 psi (7.6 MPa)
FEATURES
Breakout system: Standard hydraulic vise
Drilling lights: Standard
Flow indicator: Standard
Stakedown system: Standard
Strike alert: Standard
Remote lockout: Standard
DRILL PIPE OPTION ONE
Type: Firestick® drill rod
Length: 10' (3 m)
Rod diameter: 2.38" (6 cm)
Weight: 80 lb (36.3 kg)
Bend radius: 108' (32.9 m)
Carrying capacity: 500' (152.4 m)
DRILL PIPE OPTION TWO
Type: Firestick drill rod
Length: 10' (3 m)
Rod diameter: 2.63" (7 cm)
Weight: 131 lb (59.4 kg)
Bend radius: 145' (44.2 m)
Carrying capacity: 450' (137.2 m)
DRILL PIPE OPTION THREE
Type: Firestick drill rod
Length: 15' (4.6 m)
Rod diameter: 2.63" (6.7 cm)
Weight: 165 lb (74.9 kg)
Bend radius: 145' (44.2 m)
Carrying capacity: 525' (160 m)
