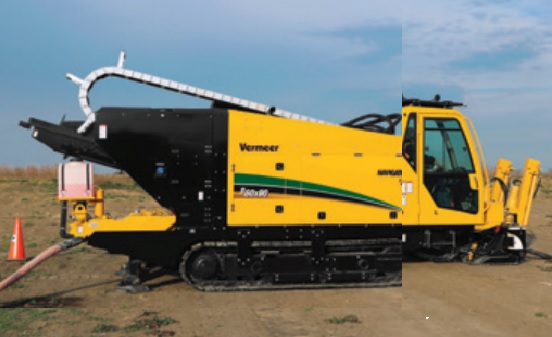

IMPRESSIVE SIZE-TO-POWER RATIO.
The D60x90 S3 boasts up to 60,000 lb (267 kN)
thrust/pullback and 9,000 ft-lb (12,202.4 Nm) of
rotational torque at just 100" (254 cm) wide and
26'
long (7.9 m), so it’s qualified for a range of
installation
specifications even in congested
urban jobsites.

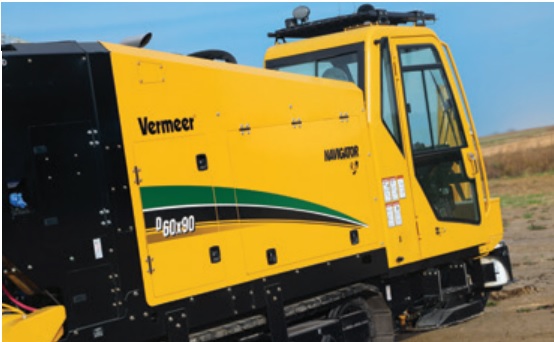

INCREASED POWER. The D60x90 S3 boasts
a sizeable 17 hp (12.7 kW)
increase over its
predecessor, the D60x90, giving
operators more
power for drilling in difficult ground
conditions.

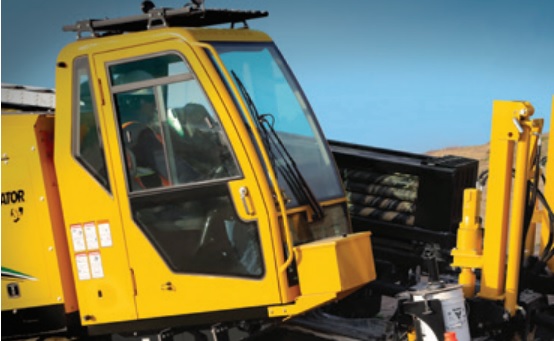

SIGNIFICANTLY QUIETER. The D60x90 S3 has a
guaranteed sound power rating
of just 107 dBA –
12 dBA lower than its predecessor
the D60x90 –
resulting in reduced noise at operator’s
ear [83 dBA],
increased operator comfort and less
noise disturbance in residential or urban areas.

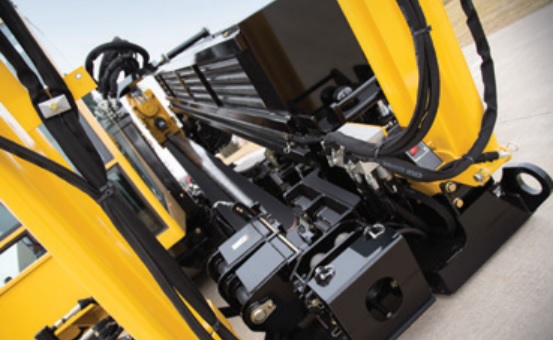

LARGE OPEN-TOP VISE DESIGN. The
D60x90 S3 features a large open-top vise design
for
the purpose of removing and adding tooling.

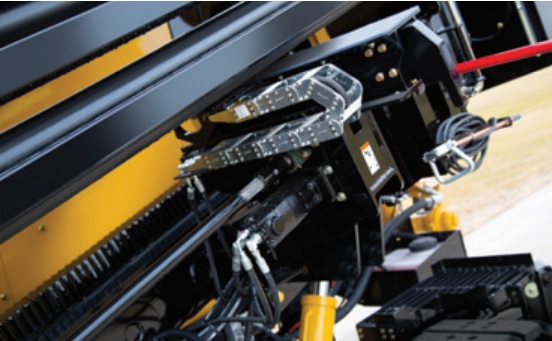

CONVENIENT ROD LOADING. Easy-to-operate
and reliable rod loader is inspired
by the popular and
proven D24x40 Series II design.

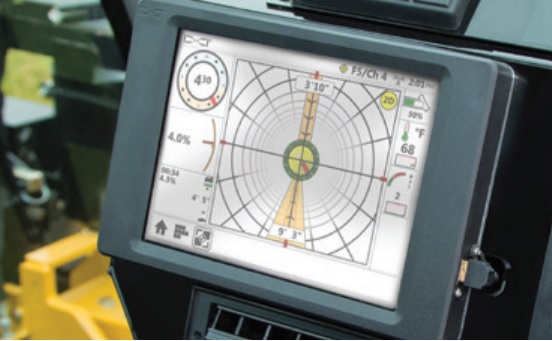

AURORA™ TOUCHSCREEN DISPLAY.
Interactive, full-color display provides real-time
location information plus tools to complete
drilling
activities more efficiently, and can replace
the
need for hard copy bore plans.
D60x90 S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 29.5' (9 m)
Min transport width: 100" (254 cm)
Min transport height: 104" (264.2 cm)
Weight: 39,000 lb (17,690.1 kg)
ENGINE
Make/Model: CAT 7.1
Fuel type: Ultra low sulfur diesel
Max engine rpm: 2200 rpm
Gross horsepower: 202 hp (151 kW)
Max torque: 642 lb-ft (870 Nm)
Displacement: 433.3 cu-in (7.1 L)
Cooling method: Liquid
Aspiration: Turbo Charged
Emissions rating: Tier 4 Final (EU Stage IV)
OPERATIONAL
Thrust/Pullback: 60,000 lb (266.9 kN)
Max carriage speed at max engine rpm: 175 fpm (53.34 m/min)
Max spindle torque (low at max engine rpm): 9000 ft-lb (12,204 Nm)
Max spindle speed at max engine rpm: 200 rpm
Min bore diameter: 6" (15 cm)
Max ground drive speed at max engine rpm (fwd): 3.7 mph (6 km/h)
Noise level at operator’s ear: 83 dBA
Drill rack angle: 12°-15° (21.3%-26.8%)
DRILLING FLUID SYSTEM
Max flow: 150 gpm (567 L/min)
Max pressure: 900 psi (6.2 MPa)
FEATURES
Breakout system: Standard top load hydraulic vise
Drilling lights: Standard
Flow indicator: Standard
Stakedown system: Optional
Strike alert: Standard
Remote lockout: Standard
DRILL PIPE OPTION ONE
Type: Firestick® drill rod
Length: 15' (4.6 m)
Rod diameter: 2.875" (7.3 cm)
Weight: 180 lb (81.7 kg)
Bend radius: 168.7' (51 m)
Onboard capacity: 600' (182.9 m)
DRILL PIPE OPTION TWO
Type: Firestick drill rod
Length: 15' (4.6 m)
Rod diameter: 3.5" (8.9 cm)
Weight: 250 lb (113.5 kg)
Bend radius: 197.7' (60 m)
Onboard capacity: 360' (109.7 m)
