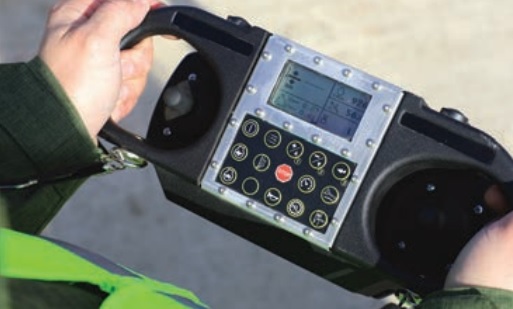

REMOTE CONTROL.
Control machine functions,
including hammer
engagement, pile accuracy
using the auto plumb
feature and ground drive via
wireless remote control.

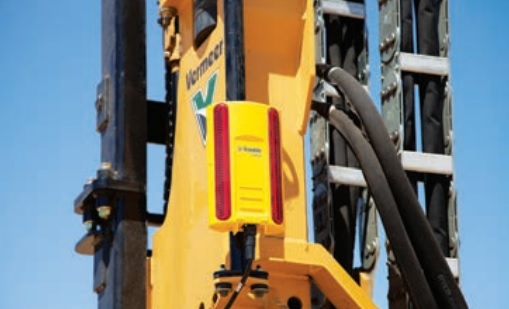

IMPROVE YOUR ACCURACY. An optional laser
receiver integrated into the control
system and
a GPS-compatible design (capable of
accepting
compatible third party systems) can help
improve
productivity.
REDUCE YOUR CYCLE TIME. Using the auto
plumb feature, the PD10R can set the
mast to be
vertical without any manual adjustment
by the
operator. Featuring a hammer which has high
impact energy, cycle times have been reduced.

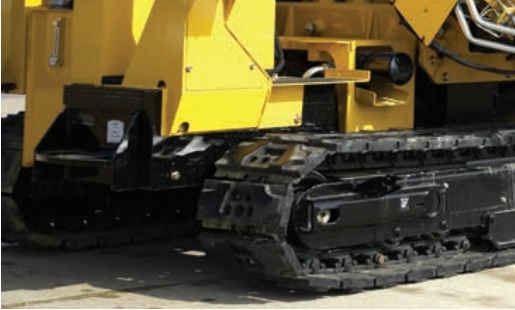

EFFICIENT GROUND DRIVE. Move from pile
to pile quickly and accurately with
an effi cient
ground drive, reducing cycle time.
LEAVE IT LIKE YOU FOUND IT. The PD10R
features a wide track pad to minimize
jobsite
disturbance in widely varying ground
conditions.

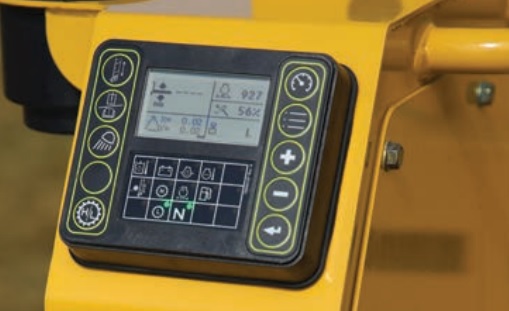

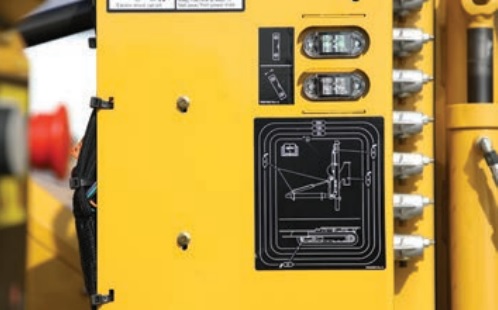

AT YOUR FINGERTIPS. An industry-unique
on-machine control system
offers the operator
a variety of machine information,
including pile
angle and height. Display also shows
machine
maintenance reminders to help maintain
service
schedules.

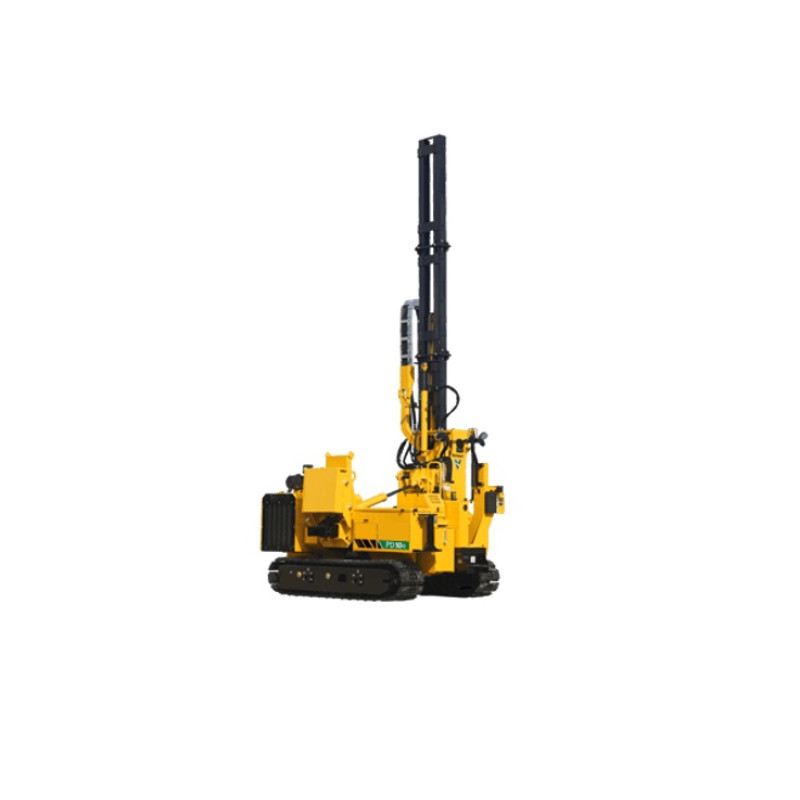

PD10R PILE DRIVER
GENERAL DIMENSIONS AND WEIGHTS
20' (6.1 M) MAST
Maximum operating height: 24.9' (7.6 m)
Operating weight: 15,560 lb (7057.9 kg)
Operating length: 10.2' (3.2 m)
Operating width: 10.1' (3.1 m)
Transport height: 108" (274.3 cm)
Transport length: 122" (309.9 cm)
Transport width: 101" (256.6 cm)
ENGINE OPTION ONE
Make and model: Deutz D2.9 L4
Gross horsepower: 49 hp (36.5 kW)
Number of cylinders: 4
Cooling medium: Liquid
Fuel type: Diesel
EPA certification family: Tier 4 Final (EU family stage IIIA)
ENGINE OPTION TWO
Make and model: Deutz D2.9 L4
Gross horsepower: 49 hp (36.5 kW)
Number of cylinders: 4
Cooling medium: Liquid
Fuel type: Diesel
EPA certification family: Tier 4i (EU family stage IIIA)
FLUID CAPACITIES
Fuel tank: 18 gal (68.1 L)
Engine crankcase with filter: 2.1 gal (7.9 L)
Engine cooling system: 1.5 gal (5.7 L)
Hydraulic tank: 36 gal (136.3 L)
GROUND DRIVE
Hydraulic pump type: Danfoss H1 hydrostatic
Maximum transport speed: 1.74 (2.7 km/h)
Track drive: Steel track with rubber pads
HAMMER
Maximum angle (direction of tracks): 11 degrees
(each direction from vertical)
Maximum angle (perpendicular to tracks): 20 degrees away from
machine
| 55 degrees toward machine (from vertical)
Impact drive type: High-frequency hammer
Maximum hammer impact: 1500 bpm
Maximum pile dimension (round opening): 9.3 in² (23.6 cm²)
Maximum pile dimension (square opening): 8.3 in² (21.1 cm²)
Maximum pile dimension (rectangle opening): 6.7 x 9.3"
(17 x 23.6 cm)
FEATURES
Autoplumb: Standard
Laser receiver: Optional
Remote control: Standard
Max laser operating distance: 1500' (457.2 m)
Vermeer productivity tools capable
Third party GPS integration capable
