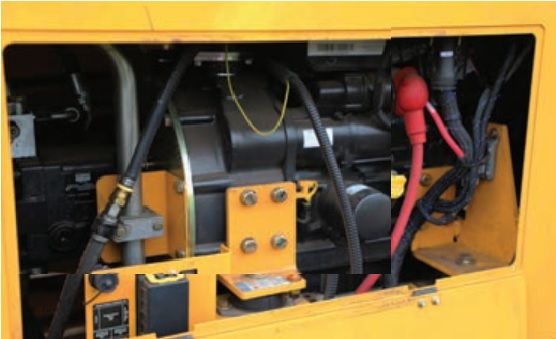

ENGINE.
The TR6400 features a Deutz 3.6L Tier
4F (Stage IV),
100 hp (75 kW) engine. The engine
is mounted on a
pivoting frame that swings out
30 degrees for access
to fuel fi lters and hydraulic
reservoir for maintenance
and service.

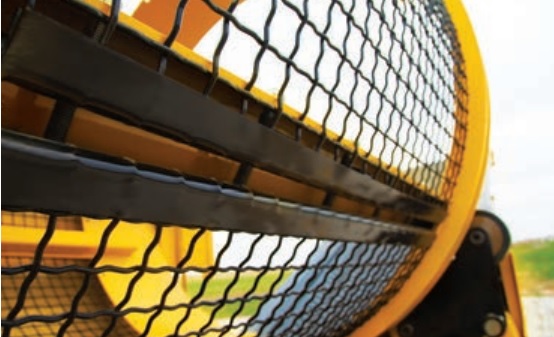

PRODUCT VARIETY. Change product size more
effi ciently with the
quick-change screen design.
Five large bolts adjust a
tensioning hook to allow
operators to quickly change
screen sizes.

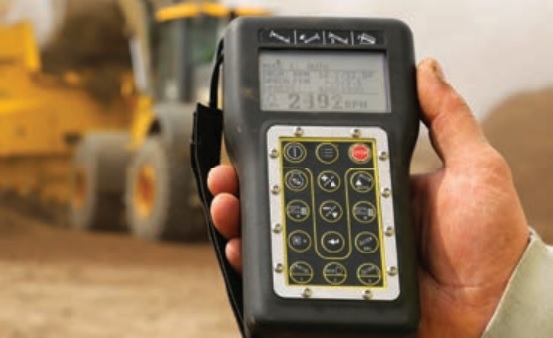

CONTROL SYSTEM. Operators can control
the machine through either the
Vermeer DP10
display mounted on the control panel,
or through a
handheld transceiver remote. From either
control,
the operator can choose from four
programmable
presets or adjust on the fl y based on
the incoming
material.

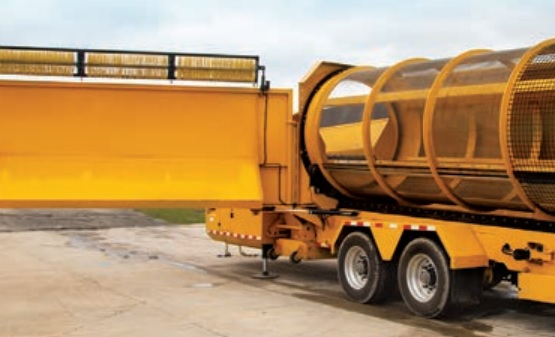

DRUM SERVICE ACCESS. A single-hinged side
panel exposes the full length of the
trommel drum
from ground level for drum service and
removal.

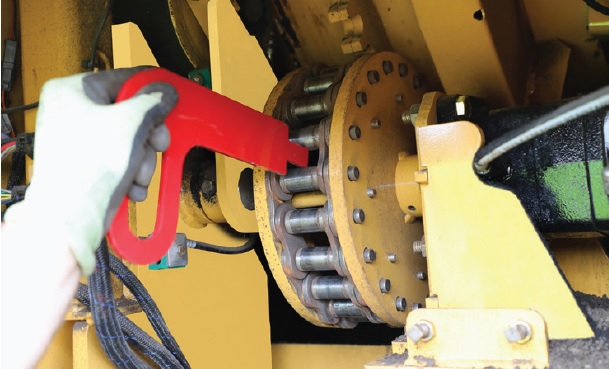

DRUM DRIVE. A hydraulic chain drive system
allows the drum to lift off
the cog for service.
Bolt-on sprockets can be changed
quickly and
help minimize repair.

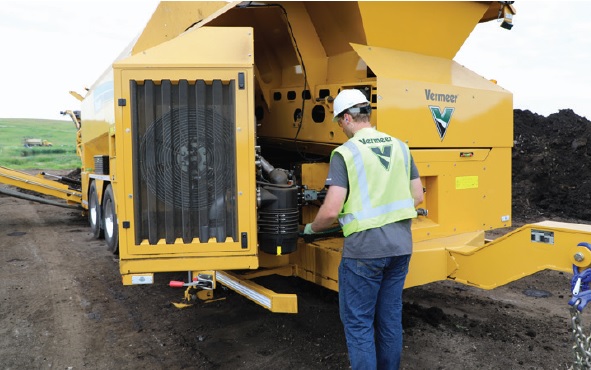

BUILT FOR EASE OF MAINTENANCE. The
TR6400 has various access points to critical areas
which allows the operator to effi ciently maintain the
machine.

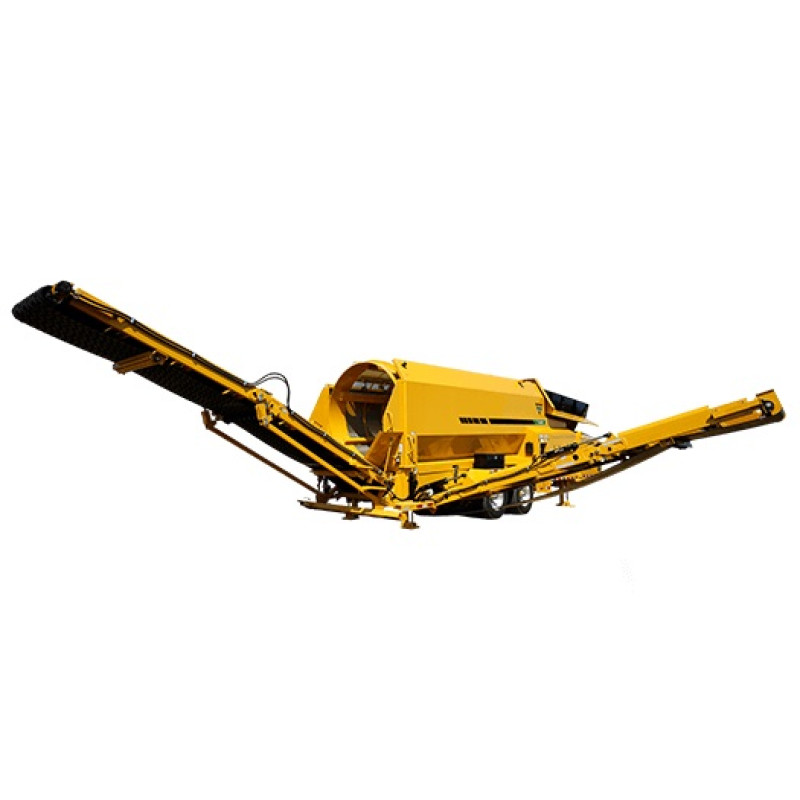

TR6400 TROMMEL SCREEN
GENERAL WEIGHTS AND DIMENSIONS
Weight: 19.000 kg (41,900 lb)
Hitch weight: 1.000 kg (2,200 lb)
Transport length: 12 m (40')
Transport width: 2,5 m (99")
Transport height: 4 m (13.2')
Operation length: 16,5 m (54.2')
Operation width: 7,5 m (295")
Operation height: 5 m (16.7')
Capacity: approximately 134 cu m per hour (175 cu yd per hour)
with 1,3 cm (0.5") screens installed and material with moisture
less than 40%
ENGINE
Type: Deutz 3.6L Tier 4F (Stage IV)
Number of cylinders: 4
Engine rating: 100 hp (75 kW)
HOPPER AND APRON CONVEYOR
Hopper capacity: 5 cu m (6.5 cu yd)
Hopper height: 2,9 m (9.5') from ground level at operating incline
Apron conveyor rollers: 12,7 cm (5") CEMA “D” x 17
SCREEN DRUM
Drum diameter: 2 m (6.5')
Drum length: 6 m (20')
Max screen panels: 8
FINES CONVEYOR
Conveyor belt width: 91,4 cm (36")
Conveyor belt type: 99,8 kg (220 lb) 2-ply, 4,8 mm x 1,6 mm
(2/16" x 1/16") smooth
Conveyor belt stacking height: 3,2 m (10.2') (conveyor at 25
degrees)
OVERS CONVEYOR
Conveyor belt size: 106,7 cm (42")
Conveyor belt type: 99,8 kg (220 lb) 2-ply, 4,8 mm x 1,6 mm
(2/16" x 1/16") cleated
Conveyor belt stacking height: 2,7 m (9') (conveyor at 25
degrees)
OPTIONS
Vermeer Confidence Plus® asset protection program
