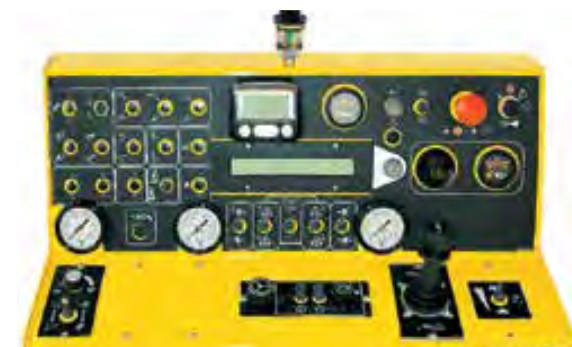

TEC® 2000 ELECTRONIC
CONTROL SYSTEM.
TEC 2000 is a microprocessor-based control
system that monitors operating conditions
and
informs the operator of real-time machine
performance for increased productivity and
reduced wear to the machine.

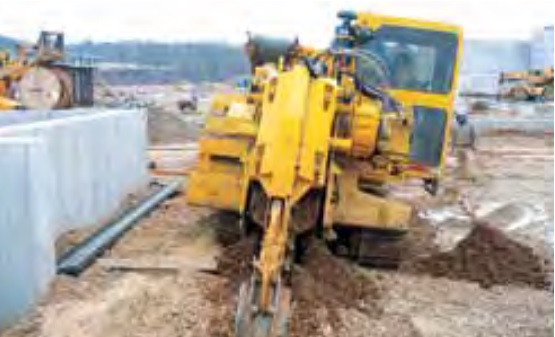

EXCLUSIVE SLIDING OFFSET CUTTING
PERFORMANCE.
The T558 is the only sliding
offset trencher in its
class that can dig outside the
width of the left
track – up to 9" (22.9 cm) with a
24" (61 cm)
chain setup.

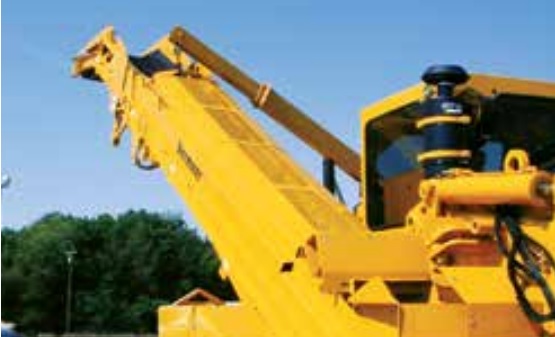

OPTIONAL LOADING CONVEYOR. An optional
stowable loading conveyor stores
easily, and
unlike competitive models does not
require
removal for transportation.
VANTAGE TRACK. Relax in the confidence
that your investment
is protected and your entire
closed loop hydrostatic
system is covered with a
3-year/3000-hour
Extended Care Service program.
OPTIONAL AUTO TILT TRACK. An oscillating
track frame allows the track to follow
the ground’s
contour providing a vertical trench
on slopes up to
10 degrees.
HORIZONTAL SLIDING CAB. A large
pressurized/air filtered cab slides 24"
(61 cm)
horizontally to allow greater visibility
for
the operator.

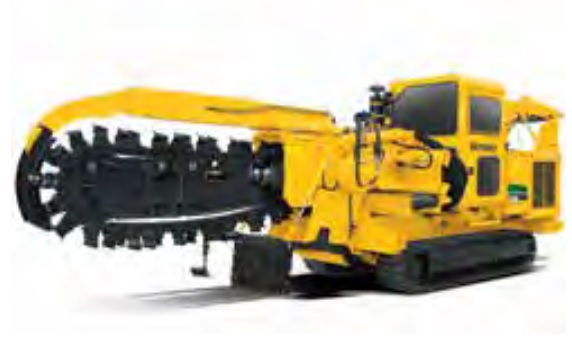

T558III TRENCHER
GENERAL DIMENSIONS
Approach angle: 25°
Height: 10' (3 m)
Length range (tractor plus trencher attachment): 28.2' – 36.3'
(8.6 m – 11.1 m)
Weight range (tractor plus trencher attachment): 43,000 lb –
52,000 lb (19,504.5 kg – 23,586.8 kg)
Width range: 8.4' – 8.5' (2.5 m – 2.6 m)
ENGINE
Make and model: John Deere 6068H
Gross horsepower: 185 hp (138 kW)
Engine rpm: 2400
Fuel consumption @ full load: 10.2 gph (38.6 L/hr)
TRACKS
Ground pressure: 8.5 psi – 10.3 psi (59 kPa – 71 kPa)
Tilt track with Auto Level available: Yes, max angle 10.7°
Track length: 9.9' (3 m)
Track pad type: Single, double, triple or polyurethane grouser
Track pad width range: 20" - 24" (50.8 cm - 61 cm)
Track size: D4
Travel speed max (low and high): 98 fpm and 195 fpm
(29.9 m/min and 59.4 m/min)
Service brakes: Hydrostatic
CONVEYOR
Belt width: 24" (61 cm)
Max conveyor belt speed: 988 fpm (301.1 m/min)
Conveyor belt style: Cleated
Conveyor length: 6' or 7.8' (1.8 m or 2.3 m)
Conveyor shift available: Yes
Conveyor shift distance: 27" (68.6 cm)
Conveyor style: Flat
Discharge direction: Right or left
Discharge height: 53.5" (135.9 cm)
CAB
Air conditioner/heater: Yes
Air suspension seat: No
AM/FM stereo with weather band: Yes
Horizontal sliding: Yes
Pressurized/Filtered air: Yes
Rollover protective module (ROPM): Yes
TRENCHER ATTACHMENT
Boom depth options: 2', 4', 5' or 6' (.6 m, 1.2 m, 1.5 m or 1.8 m)
Boom top rollers: Optional
Chain speed range: 429 fpm – 730 fpm (130.8 m/min – 222.5 m/min)
Cutting width range: 6" – 24" (15.2 cm – 61 cm)
End idler diameter: 20" or 30" (50.8 cm or 76.2 cm)
Offset range – left of center: 39.5" (110.3 cm)
Offset range – right of center: 25.5" (64.8 cm)
OPTIONS
Loadout conveyor
