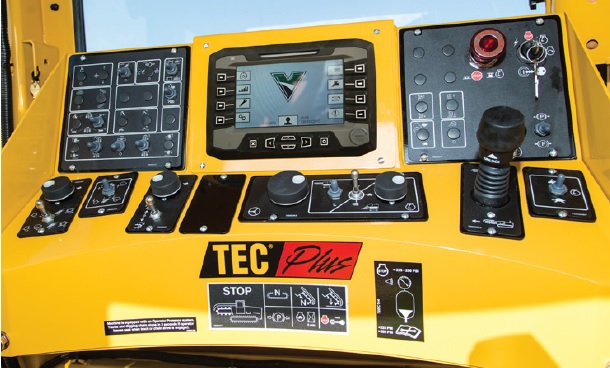

SMARTTEC ELECTRONIC
CONTROL SYSTEM.
SmartTEC performance monitoring assists
operators with adjustments to machine
controls
to help improve efficiency and
tracks the
operational performance of
the machine on a
consistent platform
across all machine models.
ROTARY POWER TRENCHER DRIVE MOTOR.
A Rotary Power trencher drive motor and
splined
headshaft produce a lower speed
and higher
torque which provide superior
ground penetration
and low chain wear
for better production results.

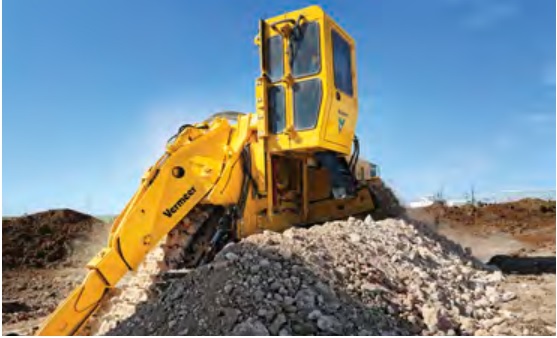

ELEVATING ROPM CAB. The elevating rollover
protective module
cab features Lexan glass,
filtered and
pressurized air, heating and
air-conditioning. The cab’s vantage
point allows
a virtually unrestricted
view of the boom, trench
and conveyor.
VANTAGE TRACK. Relax in the confidence
that your
investment is protected and your
entire
closed-loop hydrostatic system
is covered with
either an optional
3-year/3000 or 5-year/5000
hour
Extended Care Service program.

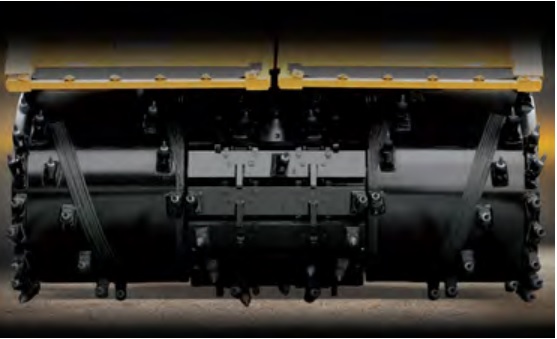

TERRAIN LEVELER® SURFACE EXCAVATION
MACHINE
(SEM) ATTACHMENT.
The T9555III
has a chain drive
Terrain Leveler SEM optional
attachment for large rock excavation
applications
including surface mining,
overburden removal,
site preparation
and road demolition.

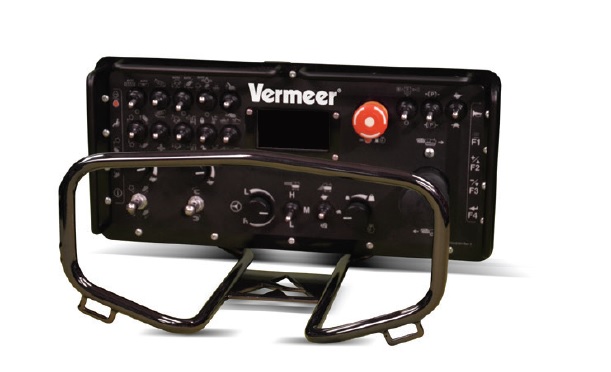

FULL FUNCTION REMOTE CONTROL.
The T955III is available with an optional
wireless
remote control that can provide
full operator
function remotely

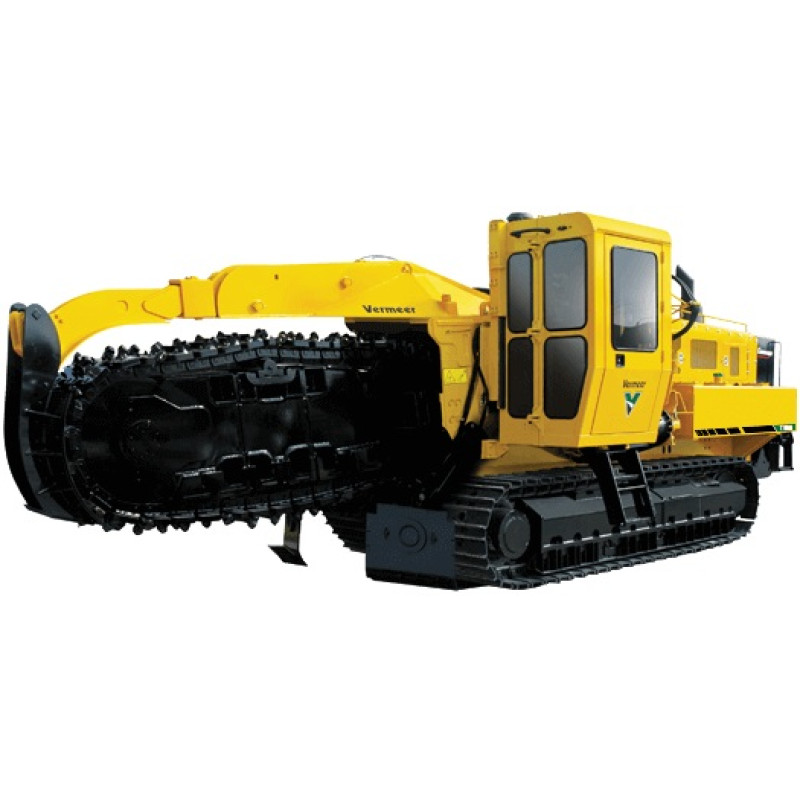

T955III TRENCHER
GENERAL DIMENSIONS
Approach angle: 16°
Height: 11.1' (3.4 m)
Length range: 32.2' – 39.7' (9.8 m – 12.1 m)
Weight range (tractor plus trencher attachment): 96,000 lb –
109,000 lb (43,544.9 kg – 49,441.6 kg)
Width: 9.5' (2.9 m)
ENGINE OPTION ONE
Make and model: Caterpillar C13 ACERT
Gross horsepower: 415 hp (310 kW)
Engine rpm: 2100
Fuel consumption @ full load: 20.9 gph (79.1 L/hr)
EPA certification family: Tier 3
ENGINE OPTION TWO
Make and model: Caterpillar C13 ACERT
Gross horsepower: 415 hp (310 kW)
Engine rpm: 2100
Fuel consumption @ full load: 21.3 gph (80.6 L/hr)
EPA certification family: Tier 4 Final (Stage IV)
TRACKS
Ground pressure: 11.7 psi – 13.3 psi (80.7 kPa – 91.7 kPa)
Tilt track with Auto Level available: No
Track length: 13.4' (4.1 m)
Track pad type: Single, double or triple grouser
Track pad width: 24" (61 cm)
Track size: D6
Travel speed max: 148 fpm (45.1 m/min)
Service brakes: Hydrostatic
CONVEYOR
Belt width: 30" (76.2 cm)
Max conveyor belt speed: 1070 fpm (326.1 m/min)
Conveyor belt style: Cleated or finger-type
Conveyor length: 9' or 14' (2.7 m or 4.3 m)
Conveyor shift available: Yes
Conveyor shift distance: 15" or 65" (38 cm or 165.1 cm)
Conveyor style: Curved
Discharge direction: Right or left
Discharge height: 62" or 76" (157.5 cm or 193 cm)
CAB
Air conditioner/heater: Yes
Air suspension seat: No
AM/FM stereo with weather band: Yes
Elevating: Yes
Pressurized/Filtered air: Yes
Rollover protective module (ROPM): Yes
Level II FOPS: Yes
TRENCHER ATTACHMENT
Boom depth options: 6', 8', 10' or 12' (1.8 m, 2.4 m, 3 m or 3.7 m)
Boom top rollers: Yes
Chain speed range: 316 fpm - 452 fpm (96.3 m/min - 137.8 m/min)
Cutting width range: 18" – 42" (45.7 cm – 106.7 cm)
End idler diameter: 40" (101.6 cm)
CHAIN DRIVE TERRAIN LEVELER ATTACHMENT
Weight (tractor plus attachment): 118,000 lb (53,523.9 kg)
Max cutting depth: 32" (81.3 cm)
Cutting width: 132" (335.3 cm)
Drum tilt available: No
Max drum speed rpm: 59
Laser and GPS acceptable: Yes
Digging chain size: 4501
OPTIONS
Loadout conveyor
Remote control
