TEC® PLUS ELECTRONIC CONTROL SYSTEM.
The operating system communicates with multiple
control modules located throughout the machine
for real-time performance data and advanced
troubleshooting capabilities.
ROTARY POWER TRENCHER DRIVE MOTOR.
A rotary power trencher drive motor and splined
headshaft produce a lower speed and higher
torque
which provide superior ground penetration
and
low chain wear for better production results.
ELEVATING ROPM CAB. The elevating rollover
protective module cab
features LEXAN® glass,
filtered and pressurized
air, heating and
air-conditioning. The cab’s vantage
point allows
a virtually unrestricted view of the
boom, trench
and conveyor.
VANTAGE TRACK. Relax in the confidence
that your investment
is protected and your entire
closed loop
hydrostatic system is covered with
either a
3-year/3000-hour or 5-year/5000-hour
Extended Care Service program.

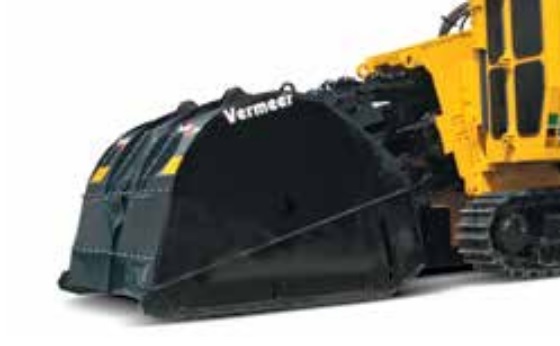

TERRAIN LEVELER® SURFACE
EXCAVATION MACHINE ATTACHMENT.
The T1055III has a chain drive Terrain Leveler
attachment option for large rock excavation
applications including surface mining,
overburden
removal, site preparation
and road demolition.
FULL FUNCTION REMOTE CONTROL.
The T1055III is available with a wireless
remote
control that can provide full operator
function
remotely

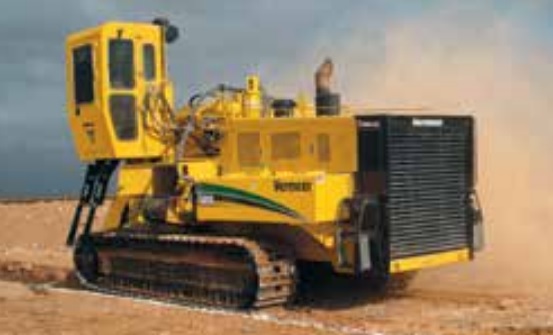

T1055III TRENCHER
GENERAL DIMENSIONS
Approach angle: 16°
Height: 11.3' (3.4 m)
Length range: 32.2' – 40.8' (9.8 m – 12.4 m)
Weight range (tractor plus trencher attachment): 105,000 lb –
124,000 lb (47,627.2 kg – 56,245.5 kg)
Width range: 9.7' – 10.2' (2.9 m – 3.1 m)
ENGINE
Make and model: Caterpillar C13 ACERT
Gross horsepower: 415 hp (310 kW)
Engine rpm: 2100
Fuel consumption @ full load: 20.9 gph (79.1 L/hr)
TRACKS
Ground pressure: 9.4 psi – 13.9 psi (64.8 kPa – 95.8 kPa)
Tilt track with Auto Level available: No
Track length: 14.7' (4.5 m)
Track pad type: Single or double grouser
Track pad width: 24" or 30" (61 cm or 76.2)
Track size: D7G
Travel speed max: 124 fpm (37.8 m/min)
Service brakes: Hydrostatic
CONVEYOR
Belt width: 30" (76.2 cm)
Max conveyor belt speed: 1070 fpm (326.1 m/min)
Conveyor belt style: Cleated or finger-type
Conveyor length: 9' or 14' (2.7 m or 4.3 m)
Conveyor shift available: Yes
Conveyor shift distance: 15" or 65" (38 cm or 165.1 cm)
Conveyor style: Curved
Discharge direction: Right or left
CAB
Air conditioner/heater: Yes
Air suspension seat: No
AM/FM stereo with weather band: Yes
Elevating: Yes
Pressurized/Filtered air: Yes
Rollover protective module (ROPM): Yes
Level II FOPS: Yes
TRENCHER ATTACHMENT
Boom depth options: 6', 8', 10', 12' or 14' (1.8 m, 2.4 m, 3 m, 3.7 m
or 4.3 m)
Boom top rollers: Yes
Chain speed range: 316 fpm – 714 fpm (96.3 m/min – 217.6 m/min)
Cutting width range: 28" – 42" (71.1 cm – 106.7 cm)
End idler diameter: 40" or 50" (101.6 cm or 127 cm)
CHAIN DRIVE TERRAIN LEVELER ATTACHMENT
Weight (tractor plus attachment): 127,000 lb (57,606.2 kg)
Max cutting depth: 32" (81.3 cm)
Cutting width: 132" (335.3 cm)
Drum tilt available: No
Max drum speed rpm: 59
Laser and GPS acceptable: Yes
Digging chain size: 4501
OPTIONS
Loadout conveyor
Terrain Leveler attachment
Remote control
