HIGH PRODUCTION.

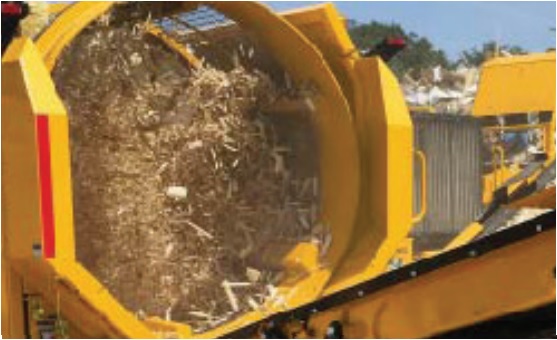

The tensioned screens
around the drum add rigidity,
allowing use of small
gauge wire, which helps
increase production
capacity and enable processing
of wetter material.

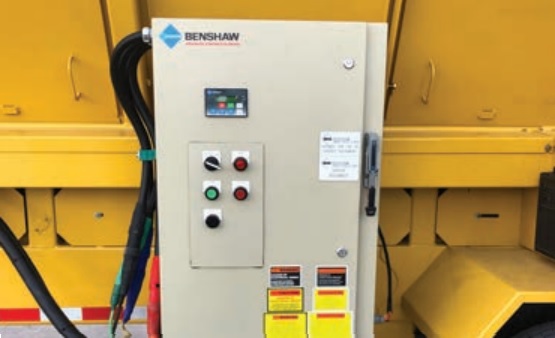

MOTOR STARTER PANEL. The motor starter
panel provides a variable
frequency drive
(VFD) panel.

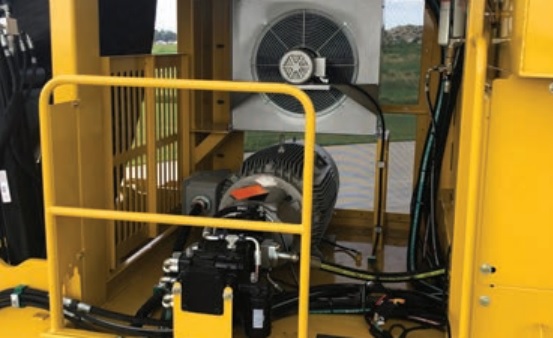

ELECTRIC MOTORS. Powered by two
industrial-duty, fully enclosed
and fan-cooled
electric motors. A single 150-hp
(112-kW) motor
powers the hydraulic pump stack
while a .75-hp
(.6-kW) motor powers the cooling fan
for the
hydraulic system.

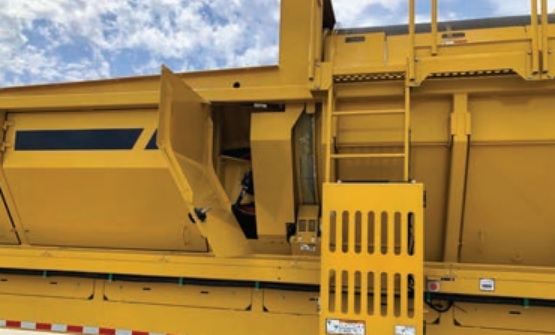

EASE OF MAINTENANCE. The TR626EM was
built with the operator in mind,
designed with
various access points to critical areas
helping to
make maintenance effi cient.

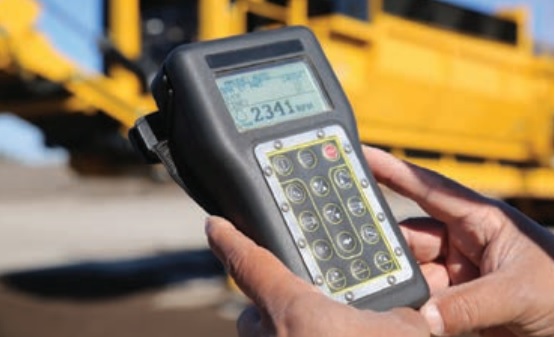

ADVANCE CONTROLS. Operators can control
the machine through either
the Vermeer DP10
display mounted on the control
panel, or through a
handheld transceiver remote.

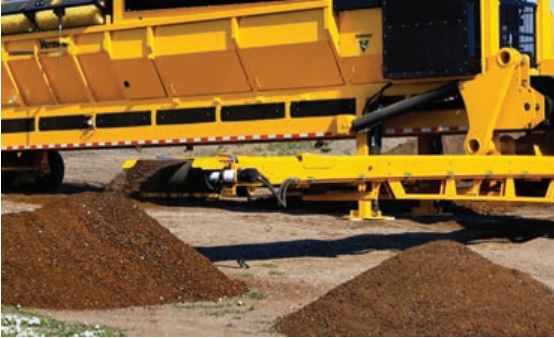

RADIAL STACKING CONVEYOR. The stacking
conveyor with a 180-degree arc
increases the
amount of material being stacked
on the ground.
Adjustable stacking height aids
with dust control
and helps avoid material being
blown away.
TR626EM TROMMEL SCREEN
GENERAL WEIGHTS AND DIMENSIONS
Weight: 49,700 lb (22,543.5 kg)
Hitch weight: 16,680 lb (7565.9 kg)
Transport length: 54.5 ft (16.6 m)
Transport width: 113 in (287 cm)
Transport height: 13.4 ft (4.1 m)
Operation length: 84.4 ft (25.7 m)
Operation width: 113 in (287 cm)
Operation height: 15.9 ft (4.8 m)
Capacity: Approximately 200 cu yd (152.9 cu m) per hour with .5-in"
(1.3-cm) screens installed and material with moisture less than 40%
ENGINE OPTION ONE
Make and model: Siemens
Motor rating: 150 hp, 1800 rpm, 460 V, 3 phase
System voltage: 12-V, 120-amp alternator
HOPPER AND APRON CONVEYOR
Hopper capacity: 6 cu yd (4.6 cu m)
Hopper height: 9.5 ft (2.9 m) from ground level at operating incline
Apron conveyor rollers: 4 in (10.2 cm) diameter; quantity 14
SCREEN DRUM
Drum diameter: 6 ft (1.8 m)
Drum length: 26 ft (7.9 m)
Max screen panels: 8
COLLECTING CONVEYOR
Fines belt speed: 405 fpm (123.4 m/min)
Conveyor belt width: 36 in (91.4 cm)
FINES CONVEYOR
Conveyor belt width: 36 in (91.4 cm)
Conveyor belt stacking height: 16.6 ft (5.1 m) with drum at
4 degrees
FINES CONVEYOR OPTION – RADIAL
Fines conveyor length: 30.5 ft (9.3 m)
Fines belt speed: 705 fpm (214.9 m/min)
OVERS CONVEYOR – OPTION ONE
Maximum variable overs belt speed: 290 fpm (88.4 m/min)
Conveyor belt size: 48 in (121.9 cm) wide with raised cleat
Conveyor belt stacking height: 3 ft x 10 ft (.9 m x 3.1 m)
OVERS CONVEYOR – OPTION TWO
Max variable overs belt speed: 290 fpm (88.4 m/min)
Conveyor belt size: 48 in (121.9 cm) wide with raised cleat
Conveyor belt stacking height: 3 ft x 12.5 ft (.9 m x 3.8 m)
