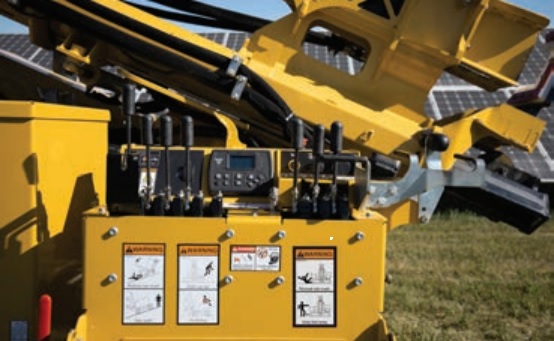

ON-MACHINE CONTROL.
Walk-beside,
machine-integrated controls allow the
operator to
control machine functions, including
engagement
of hammer, pile placement and ground
drive.

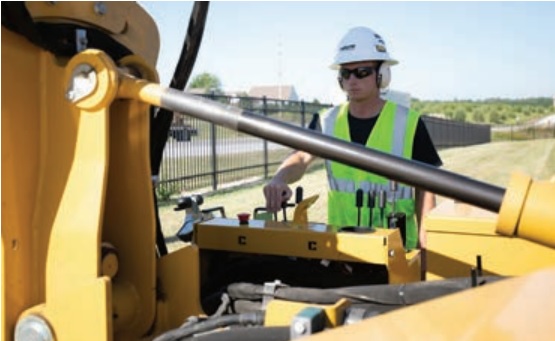

Operators remain off the machine and walk
beside
it, with conveniently placed controls to allow
for
intuitive operation and operator comfort.

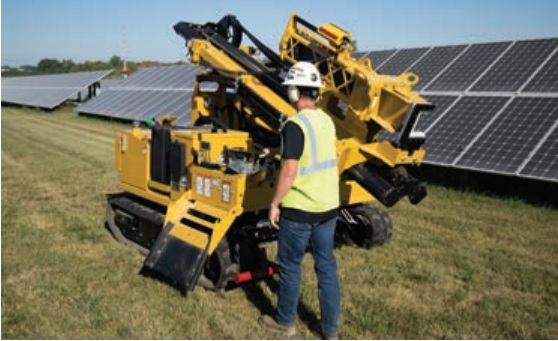

TRANSPORTATION EASE. Teardown and
transporting is convenient with a
rotating platform
and a mast that can stay fully
assembled and stow
parallel with the tracks, making
it more convenient
for the entire crew to move to
the next job.
KEEP IT LIGHT. The PD5 weighs in at 10,380 lb
(4,708 kg), which
allows for transporting up to two
pile drivers on
select trailers, and less potential
damage to jobsites,
all while helping increase
effi ciency of setup and
teardown with a
lightweight design.

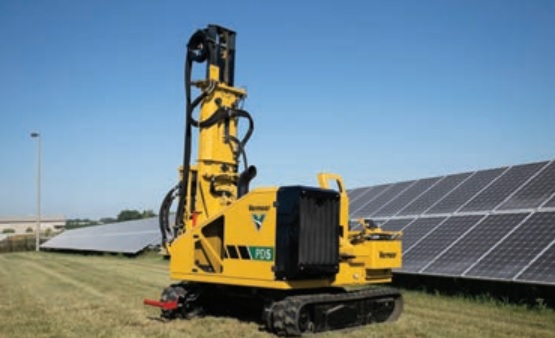

COMPACT DESIGN. A small machine with a
transport width of 87 in
(221 cm), a transport
height of 8.2 ft (2.5 m) and a
15 ft (4.6 m) mast
is ideal for jobsites with less space,
or for
multiple smaller jobs that require continual
transportation of the machine. Quickly move
around
the jobsite and continue effi ciency of
installations
helping reduce time spent on
setup, teardown
and transportation.

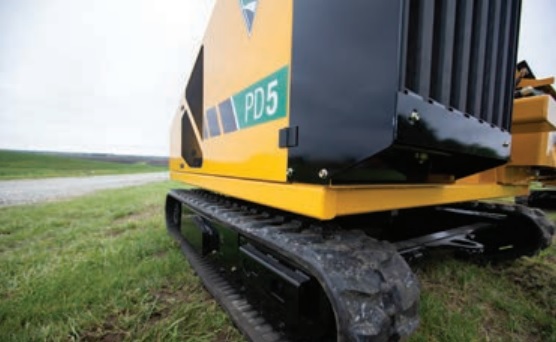

MOVE ALONG. With a forward ground drive
speed of 2.4 mph
(3.9 km/h), the PD5 moves
quickly around the jobsite
with less time wasted
traveling and more time
installing piles - keeping
your installation effi ciently
moving forward.

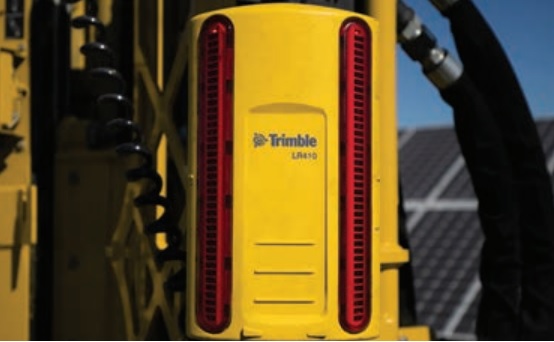

MAINTAIN ACCURACY. The PD5 has an
optional laser receiver and an
optional compatible
third-party GPS system that can
provide visual
input to the operator, which can help
improve
productivity and alignment of the machine
to the
specifi ed pile location.

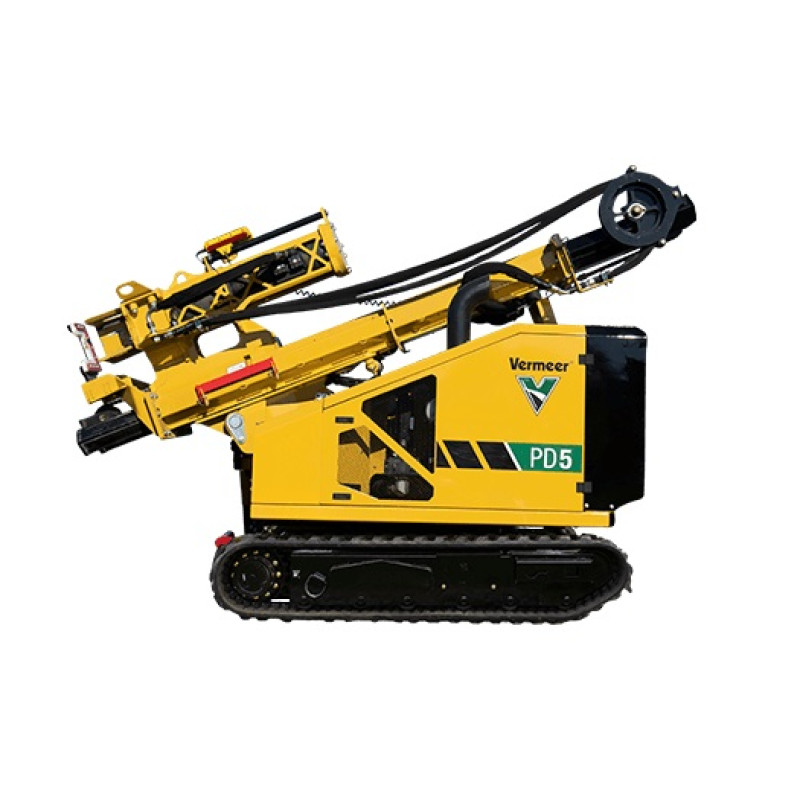

PD5 PILE DRIVER
GENERAL DIMENSIONS AND WEIGHTS
Maximum pile height: 15.5 ft (4.7 m)
Maximum operating height: 19.8 ft (6 m)
Operating weight: 10,380 lb (4,708 kg)
Operating length: 9.2 ft (2.8 m)
Operating width: 12.5 ft (3.8 m)
Transport height: 8.2 ft (2.5 m)
Transport length: 11.7 ft (3.6 m)
Transport width with track shield folded up: 87 in (221 cm)
width: 84 in (213 cm)
ENGINE OPTION ONE
Make and model: CAT C2.2T CRDI
Gross horsepower: 48.8 hp (36.4 kw)
Number of cylinders: 4
Cooling medium: Liquid
Fuel type: Ultra low sulfur diesel
EPA Certification Family: Tier 4 Final (EU stage IIIB)
ENGINE OPTION TWO
Make and model: CAT C2.2T
Gross horsepower: 60 hp (44.7 kW)
Number of cylinders: 4
Cooling medium: Liquid
Fuel type: Diesel
EPA Certification Family: Tier 3 (Stage IIIA CA)
ELECTRICAL SYSTEM
Voltage: 12 volts
FLUID CAPACITIES
Fuel tank: 25 gal (94.6 L)
Engine crankcase with filter: 2.5 gal (9.5 L)
Hydraulic tank: 35 gal (132.5 L)
GROUND DRIVE
Maximum transport speed: 2.4 mph (3.9 km/h)
Track drive: rubber tracks
HAMMER
Maximum angle (direction of tracks): 10° each way from vertical
Maximum angle (perpendicular to tracks): 10° out from vertical
Impact drive type: High-frequency hammer
Maximum hammer impact: 1500 bpm
Hammer energy class: 1100
Maximum pile dimension (round opening): 9.3 in (23.6 cm)
Maximum pile dimension (square opening): 8.3 in (21.1 cm)
Maximum pile dimension (rectangle opening): 6.7 in x 9.3 in
(17 cm x 23.6 cm)
FEATURES
Laser receiver: Optional
Controls: Machine-integrated
Telematics: Standard
Mast: Hammer pull-down
Rotating platform: Standard
