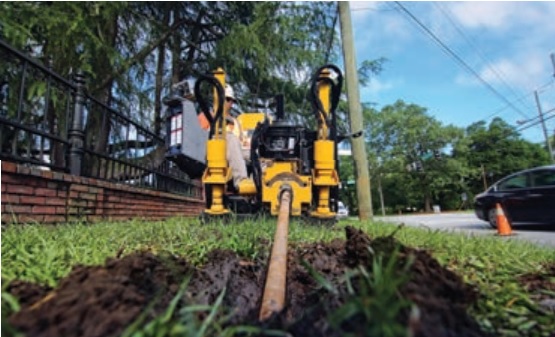

MORE LENGTH PER DAY.
Featuring an
increase of almost 11% in carriage
speed over
its predecessor — the D9x13 S3
Navigator® HDD
— the drill offers fast cycle
times and enhanced
productivity on the jobsite.
GET TO WORK FASTER. The D10x15 S3
features a ground drive speed
of up to 3.3 mph
(5.3 km/h) — helping make
jobsite entry and
departure go more quickly.

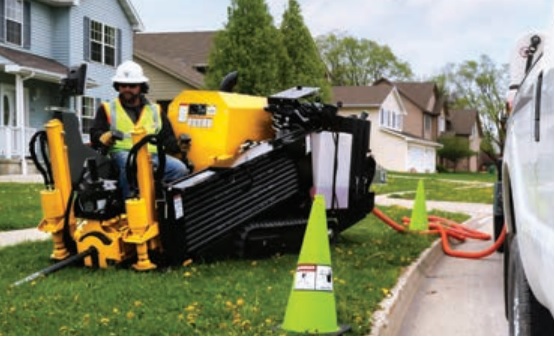

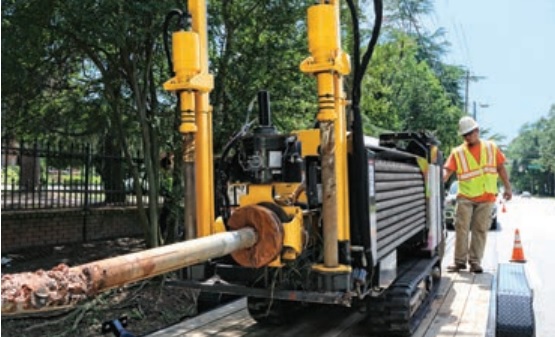

NARROW FOOTPRINT. With a slender
profile of 44" (111.8 cm) in
width, the drill can
easily maneuver within
narrow jobsites and
position side by side
with a mix system on a trailer,
helping to
increase productivity when working in
urban spaces.
COMPACT BUT POWERFUL. The D10x15 S3
stands out due to its
compact design and light
weight. With
10,000 lb (44.5 kN) of thrust/pullback
and 1500 ft-lb (2033.7 Nm) of rotational
torque,
it has the power required for
tough ground
conditions and pulling
reamers.

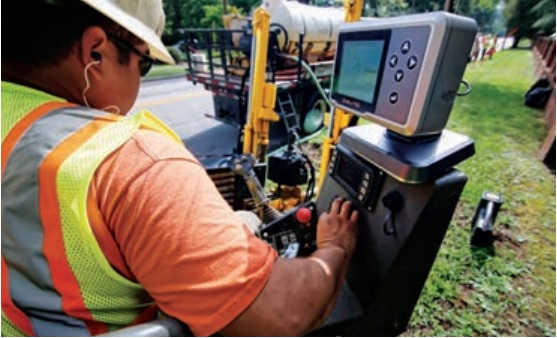

REDUCED NOISE. The D10x15 S3 is designed to
limit its
operating noise, creating less
neighborhood
disturbance and enabling
easier communication
among crew
members.

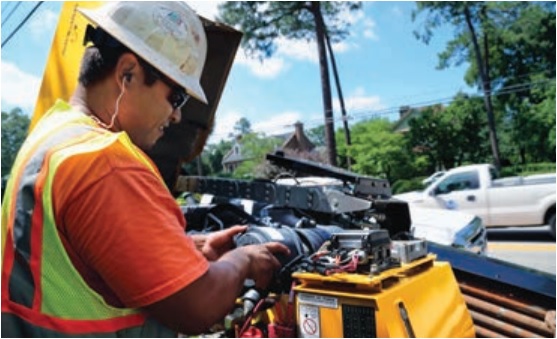

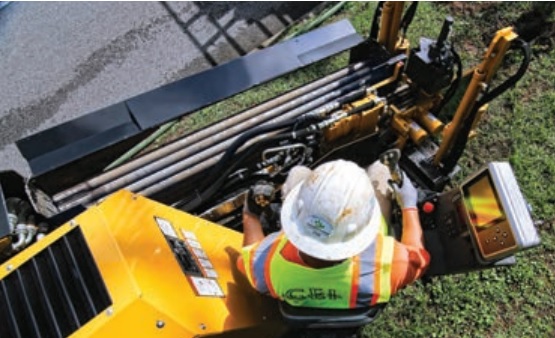

SERVICEABILITY. A one-piece, hinged hood
offers durability
as well as convenient access to
daily key
service points.
D10x15 S3 NAVIGATOR®
HORIZONTAL DIRECTIONAL DRILL
GENERAL WEIGHTS AND DIMENSIONS
Min transport length: 153" (389 cm)
Min transport width: 44" (111.8 cm)
Min transport height: 66" (167.6 cm)
Weight: 7200 lb (3265.9 kg)
ENGINE OPTION ONE
Make/Model: Deutz TD2.9
Fuel type: Low sulfur diesel
Max engine rpm: 2300 rpm
Gross horsepower: 60 hp (45 kW)
Aspiration: Turbocharged
Noise level at operator's ear: 86 dB(A)
Emissions rating: Tier 4i (EU Stage IIIA)
ENGINE OPTION TWO
Make/Model: Deutz TD2.9
Fuel type: Low sulfur diesel
Max engine rpm: 2300 rpm
Gross horsepower: 60 hp (45 kW)
Aspiration: Turbocharged
Noise level at operator's ear: 86 dB(A)
Emissions rating: Tier 4 Final (EU Stage IV)
ENGINE OPTION THREE
Make/Model: Deutz TD2.9
Fuel type: Low sulfur diesel
Max engine rpm: 2300 rpm
Gross horsepower: 60 hp (45 kW)
Aspiration: Turbocharged
Noise level at operator's ear: 87 dB(A)
Emissions rating: Tier 4 Final (EU Stage V)
OPERATIONAL
Thrust/Pullback: 10,000 lb (44.5 kN)
Max carriage speed at max engine rpm: 208 fpm (63.4 m/min)
Max spindle torque (low at max engine rpm): 1500 ft-lb (2033.7 Nm)
Max spindle speed at max engine rpm: 240 rpm
Min bore diameter: 2.5" (6.4 cm)
Max ground drive speed at max engine rpm (fwd): 3.3 mph (5.3 km/h)
Drill rack angle: 14°–17° (24.9%–30.6%)
FLUID CAPACITIES
Fuel tank: 18 gal (68.1 L)
Hydraulic system: 25 gal (94.6 L)
DRILLING FLUID SYSTEM
Max flow: 15 gpm (56.8 L/min)
Max pressure: 1000 psi (6.9 MPa)
FEATURES
Breakout system: Standard hydraulic vise
Flow indicator: Standard
Stakedown system: Standard
Strike alert: Standard
Remote lockout: Standard
DRILL PIPE
Type: 1.66 Firestick® drill rod #200
Length: 6' (1.8 m)
Rod diameter: 1.66" (4.2 cm)
Weight: 26 lb (11.8 kg)
Bend radius: 95.5' (29.1 m)
Onboard capacity: 300' (91.4 m)
